Description

Price

-

K-SEAL REBUILD 803-00-747 [USE W/704481/82 SHOCKS]

1501210

$94.99

1

PLATE: BACK-UP [0.750 OD X 0.503 ID X 0.100 TH, � 0.620 SHAFT]

1500516

$7.19

1

SHOCK, FRONT, 2' RESVR, PG, LH [INCL. ALL]

7044481

$866.79

1

SHOCK, FRONT, 2' RESVR, PG, RH [INCL. ALL]

7044482

$866.79

1

PLATE: TOP-OUT [1.570 OD X 0.503 ID X 0.128 TH, � 0.620 SHAFT]

1500838

$12.79

2

BUSHING, EYELET

1501010

$19.99

2

BUSHING, EYELET

1501010

$19.99

3

FASTENER, STANDARD: NUT, LOCK [1/2-20 X 0.313 TLG]

1500842

Unavailable

4

SCREW, #4, SS PAN

1501011

$13.59

5

DECAL, PERF SERIES

1501012

$14.39

6

DECAL, RESERVOIR

1501013

$10.39

7

O-RING,.103W-1.737ID

1500623

$6.39

8

SEALS:O-RING [(-135) .103 C.S. X 1.925 ID] STANDARD, N-70, STATIC

1500510

$6.39

9

SEAL, WEATHER

1501014

$8.79

9

SEAL, WEATHER

1501014

$8.79

10

RETAINING RING: WIRE [0.062 CS X 1.850 ID] 17-7 SS

1500236

$9.59

11

RING-RETAINING, WIRE 2.050

1501015

$9.59

12

CAP, BEARING

1501100

$39.99

13

BODY CAP 135DEG. PG [USED W/7044481]

1501029

$136.39

13

BODY CAP 45DEG. PB [USED W/7044482]

1501030

$136.39

14

BODY, 1.83X13.1TLG

1501031

$96.79

15

KNOB, LOW SPEED

1501019

$10.39

16

EYELET, SHAFT

1501032

$74.79

17

EYELET PART: SLEEVE, .397 ID X .875 OD X 1.181 TLG

1501087

$23.99

18

EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG

1501088

$6.39

18

EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG

1501088

$6.39

19

RESERVOIR, 5" THD.

1501023

$57.19

20

SHAFT, .62X10.1TLG

1501033

$99.99

21

SPRING HARDWARE: PRELOAD RING BACK UP [3.250 OD X 0.280 TLG, 2.080-14 STUB ACME ID] LOW CARBON STEEL, ZINC PLATED

1500872

$43.99

22

SPRING HARDWARE: PRELOAD RING [3.250 OD X 0.515 TLG, 2.080-14 STUB ACME ID] LOW CARBON STEEL, ZINC PLATED

1500873

$47.99

23

SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE, COMPLETE

1500161

Unavailable

24

ASM., PISTON, FLOAT

1501026

$48.39

25

BUMPER, B/O SHAFT

1501028

$26.39

26

ASM. BEARING

1501099

$69.99

27

ASM., END CAP, RESERVOIR

1501027

$101.19

28

ASM., DAMP. ADJ. LSC

1501034

$109.99

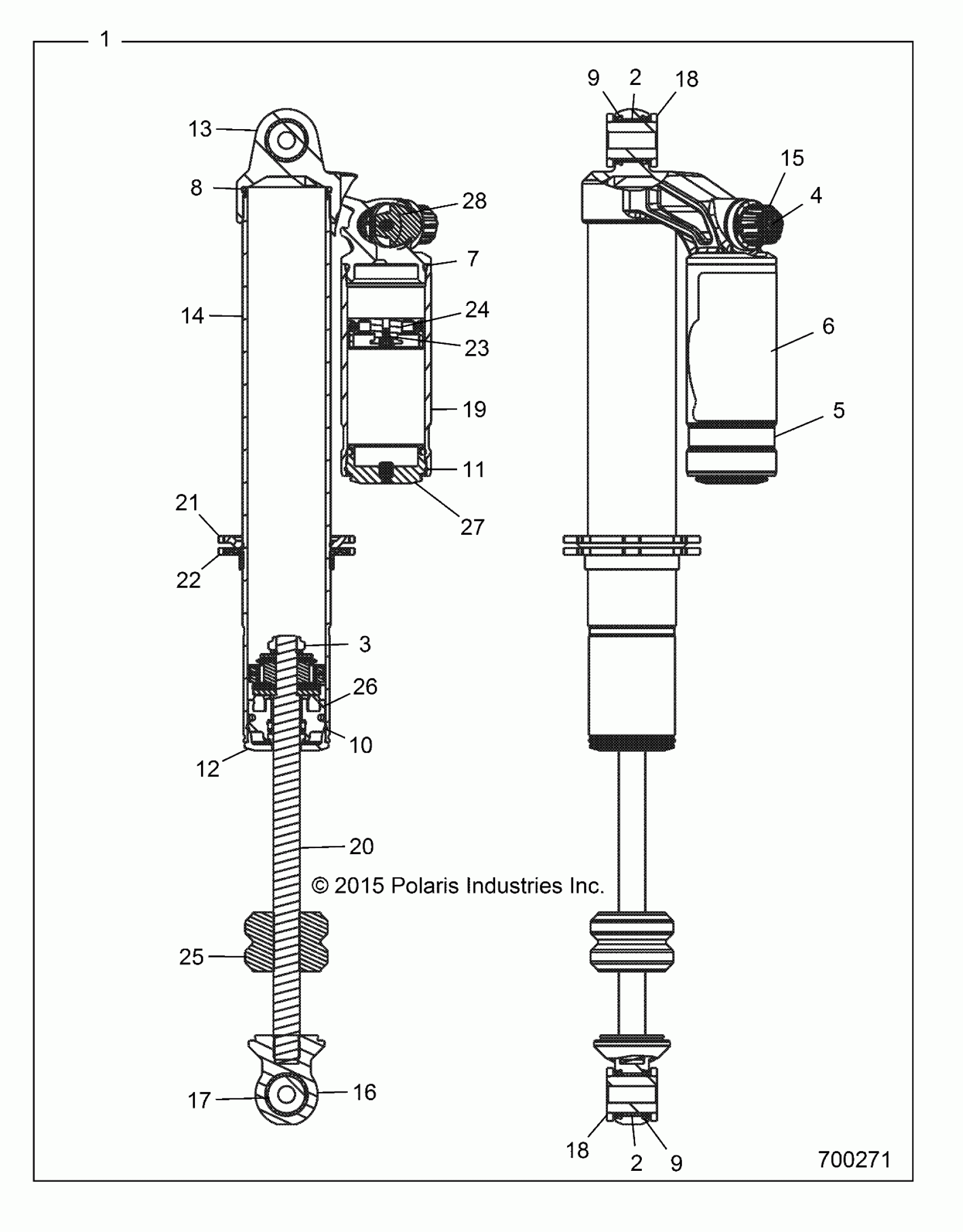

Polaris RZR 1000 60 INCH ALL OPTIONS (R12) - Z16VBE99AK/AW/AB SUSPENSION, FRONT SHOCK INTERNALS - Z16VBE99AK/AW/AB (700271) Diagram

K-SEAL REBUILD 803-00-747 [USE W/704481/82 SHOCKS]

PLATE: BACK-UP [0.750 OD X 0.503 ID X 0.100 TH, � 0.620 SHAFT]

SHOCK, FRONT, 2' RESVR, PG, LH [INCL. ALL]

SHOCK, FRONT, 2' RESVR, PG, RH [INCL. ALL]

PLATE: TOP-OUT [1.570 OD X 0.503 ID X 0.128 TH, � 0.620 SHAFT]

BUSHING, EYELET

BUSHING, EYELET

FASTENER, STANDARD: NUT, LOCK [1/2-20 X 0.313 TLG]

SCREW, #4, SS PAN

DECAL, PERF SERIES

DECAL, RESERVOIR

O-RING,.103W-1.737ID

SEALS:O-RING [(-135) .103 C.S. X 1.925 ID] STANDARD, N-70, STATIC

SEAL, WEATHER

SEAL, WEATHER

RETAINING RING: WIRE [0.062 CS X 1.850 ID] 17-7 SS

RING-RETAINING, WIRE 2.050

CAP, BEARING

BODY CAP 135DEG. PG [USED W/7044481]

BODY CAP 45DEG. PB [USED W/7044482]

BODY, 1.83X13.1TLG

KNOB, LOW SPEED

EYELET, SHAFT

EYELET PART: SLEEVE, .397 ID X .875 OD X 1.181 TLG

EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG

EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG

RESERVOIR, 5" THD.

SHAFT, .62X10.1TLG

SPRING HARDWARE: PRELOAD RING BACK UP [3.250 OD X 0.280 TLG, 2.080-14 STUB ACME ID] LOW CARBON STEEL, ZINC PLATED

SPRING HARDWARE: PRELOAD RING [3.250 OD X 0.515 TLG, 2.080-14 STUB ACME ID] LOW CARBON STEEL, ZINC PLATED

SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE, COMPLETE

ASM., PISTON, FLOAT

BUMPER, B/O SHAFT

ASM. BEARING

ASM., END CAP, RESERVOIR

ASM., DAMP. ADJ. LSC
