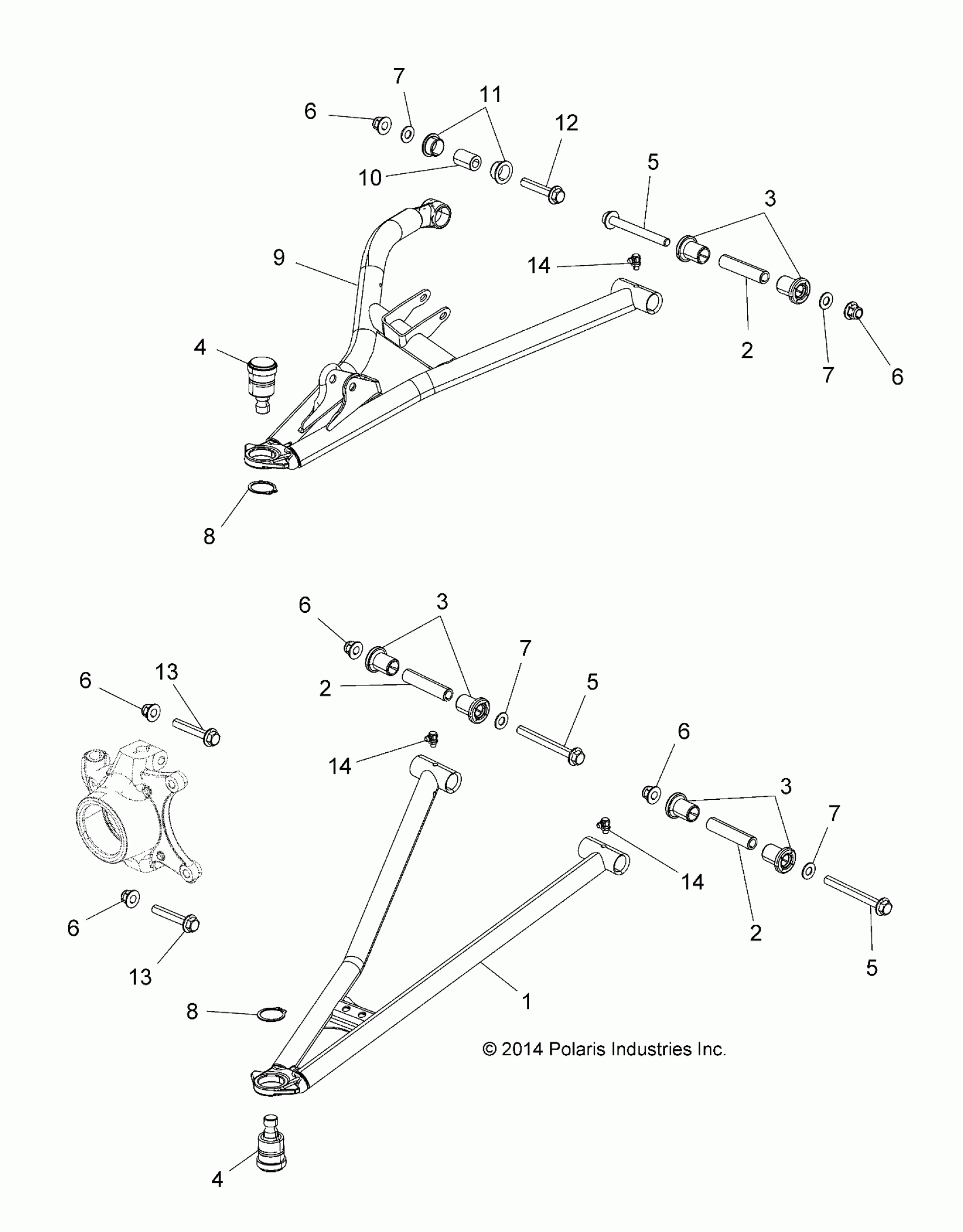

Polaris RZR 1000 60 INCH ALL OPTIONS (R12) - Z16VBE99AK/AW/AB SUSPENSION, FRONT CONTROL ARMS - Z16VBE99AK/AW/AB (49RGRSUSPFRT15RZR900) Diagram

#

Description
Price

1

CONTROL ARM, LOWER, FRONT, LH, 60, CLOUD SILVER [AW]

1019121-385

Unavailable

1

CONTROL ARM, LOWER, FRONT, LH, 60, MATTE BLACK [AK][AB]

1019121-458

Unavailable

1

CONTROL ARM, LOWER, FRONT, RH, 60, CLOUD SILVER [AW]

1019122-385

Unavailable

1

CONTROL ARM, LOWER, FRONT, RH, 60, MATTE BLACK [AK][AB]

1019122-458

Unavailable

2

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$8.79

2

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$8.79

2

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$8.79

3

BUSHING-STANDARD,ORV

5439874

$2.39

3

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

3

BUSHING-STANDARD,ORV

5439874

$2.39

3

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

3

BUSHING-STANDARD,ORV

5439874

$2.39

3

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

4

BALL, JOINT

7081924

Unavailable

4

BALL, JOINT

7081924

Unavailable

5

SCREW, HEX FLANGE

7519043

$9.59

5

SCREW, HEX FLANGE

7519043

$9.59

5

SCREW, HEX FLANGE

7519043

$9.59

5

SCREW, HEX FLANGE

7519043

$9.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

7

WASHER

7556153

$1.99

7

WASHER

7556153

$1.99

7

WASHER

7556153

$1.99

7

WASHER

7556153

$1.99

8

RING, RETAINER

7710533

$2.39

8

RING, RETAINER

7710533

$2.39

9

CONTROL ARM, UPPER, FRONT, LH, 60, CLOUD SILVER [AW]

1021200-385

Unavailable

9

CONTROL ARM, UPPER, FRONT, LH, 60, MATTE BLACK [AK][AB]

1021200-458

Unavailable

9

CONTROL ARM, UPPER, FRONT, RH, 60, CLOUD SILVER [AW]

1021201-385

Unavailable

9

CONTROL ARM, UPPER, FRONT, RH, 60, MATTE BLACK [AK][AB]

1021201-458

$195.99

10

TUBE, PIVOT

5138276

$23.99

11

BUSHING

5450095

$2.39

12

SCREW, HEX FLANGE

7519285

$2.39

13

SCREW, HEX FLANGE

7519306

$5.59

13

SCREW, HEX FLANGE

7519306

$5.59

14

FITTING, ZERK

7080510

$5.59

14

FITTING, ZERK

7080510

$5.59

14

FITTING, ZERK

7080510

$5.59
