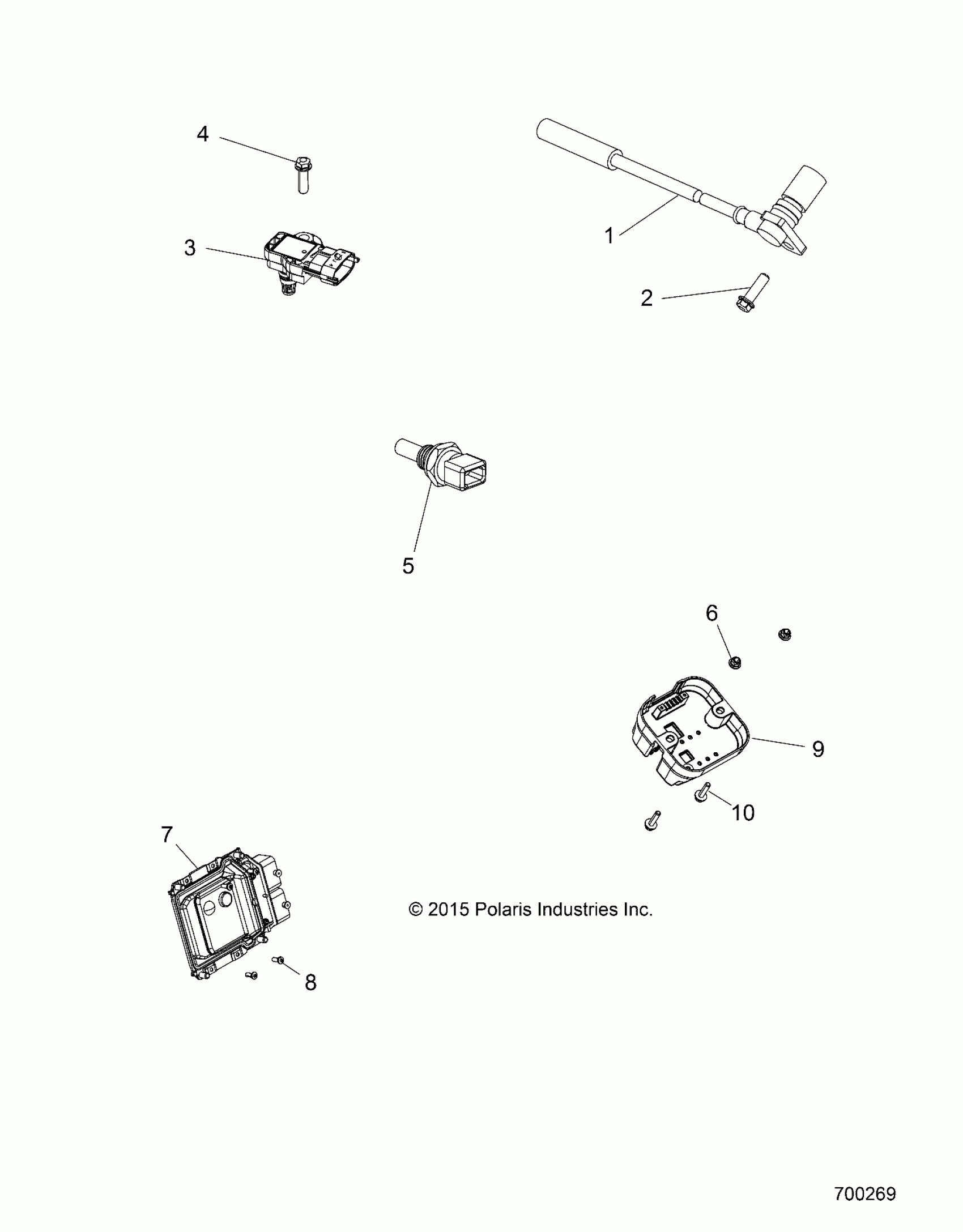

Polaris RZR 1000 60 INCH ALL OPTIONS (R12) - Z16VBE99AK/AW/AB ELECTRICAL, SENSORS, ECU and CONTROL MODULES - Z16VBE99AK/AW/AB (700269) Diagram

#

Description
Price

1

SENSOR, CRANK POSITION

2411719

$105.22

2

SCREW

7518576

$3.17

3

SENSOR-TMAP DSS3-TF

2411528

$97.13

4

SCREW

7518576

$3.17

5

SENSOR-THERMISTER

4010644

$91.97

6

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

7

ECM, NO START

4014125

$749.99

8

SCREW

7519091

$3.17

9

REGULATOR-3PH,50A,SERIES,HISPD

4014856

$156.74

10

SCR-HXFL-M6X1.0X30,RIE,DGPNT

7519202

$3.97
