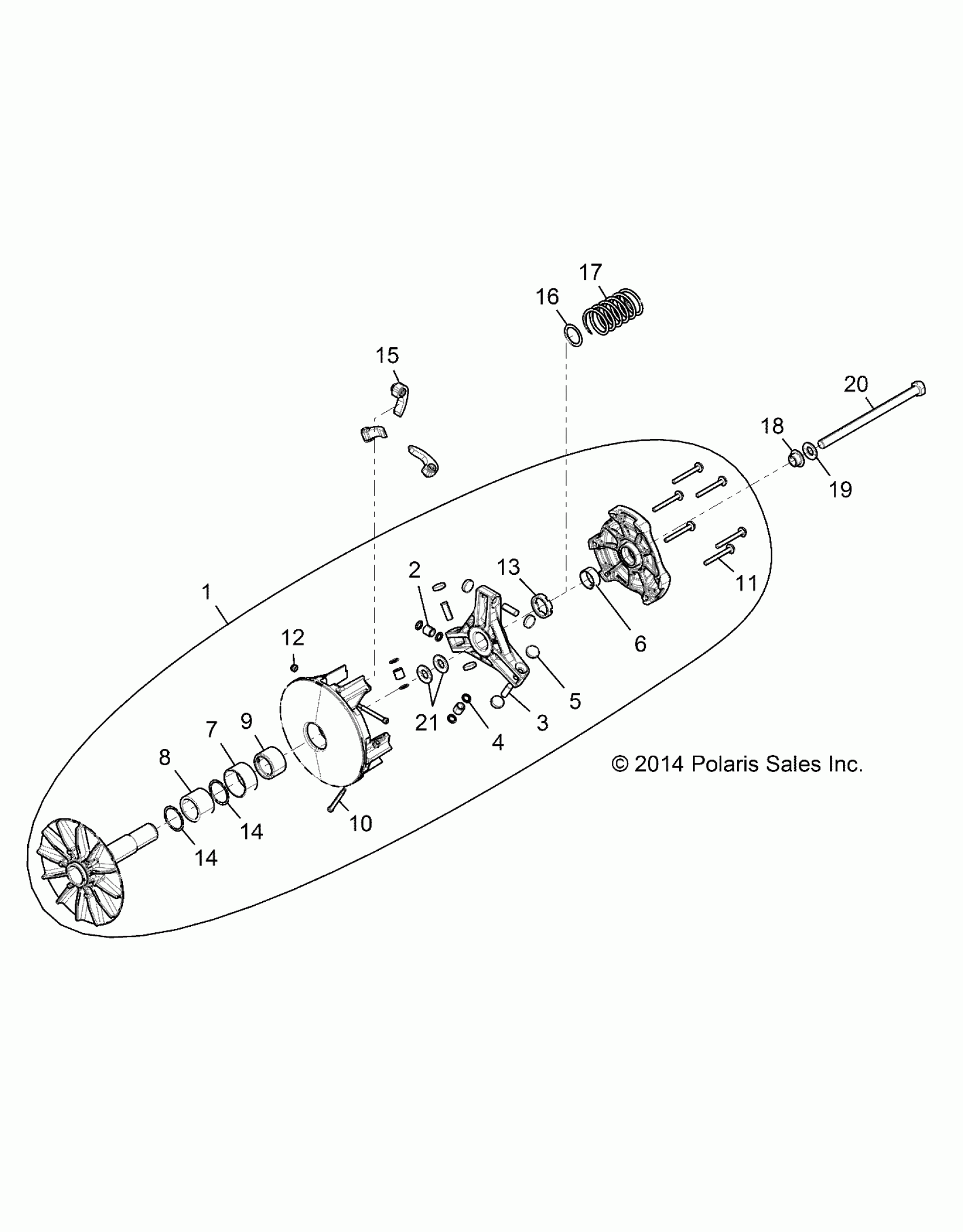

Polaris RZR 1000 60 INCH ALL OPTIONS (R12) - Z16VBE99AK/AW/AB DRIVE TRAIN, PRIMARY CLUTCH - Z16VBE99AK/AW/AB (49RGRCLUTCHDRV151000) Diagram

#

Description
Price

1

ASM., DRIVE CLUTCH, BASIC [INCL. 2-14, 21]

1323241

Unavailable

2

ASM., ROLLER AND BUSHING

-------

Unavailable

3

PIN, ROLLER

-------

Unavailable

4

WASHER, CLUTCH, SPIDER ROLLER

-------

Unavailable

5

BUTTON, CLUTCH

-------

Unavailable

6

COVER, BEARING

3576510

$9.59

7

BEARING

3514492

$31.99

8

BEARING-NEEDLE

3514609

$35.99

9

SPACER, CLUTCH, SHORT

5139905

Unavailable

10

BOLT, SHOULDER

7512266

$3.19

11

SCREW

7518349

$1.49

12

NUT, FLEX LOC

7541906

$3.19

13

NUT, JAM

7547752

Unavailable

14

WASHER-CLUTCH,VESPEL

7556335

$6.39

14

WASHER-CLUTCH,VESPEL

7556335

$6.39

15

WEIGHT-SHIFT,29-66,PM

5633496

$31.99

16

SPACER, CLUTCH, LIMITER

5438963

$3.99

17

SPRING-CLUTCH,58-135

7044263

$27.99

18

WASHER-CLUTCH RET,M14

5132441

$23.99

19

WASHER

7556003

$6.39

20

SCREW

7518412

$34.99

21

WASHER

7556889

$10.39
