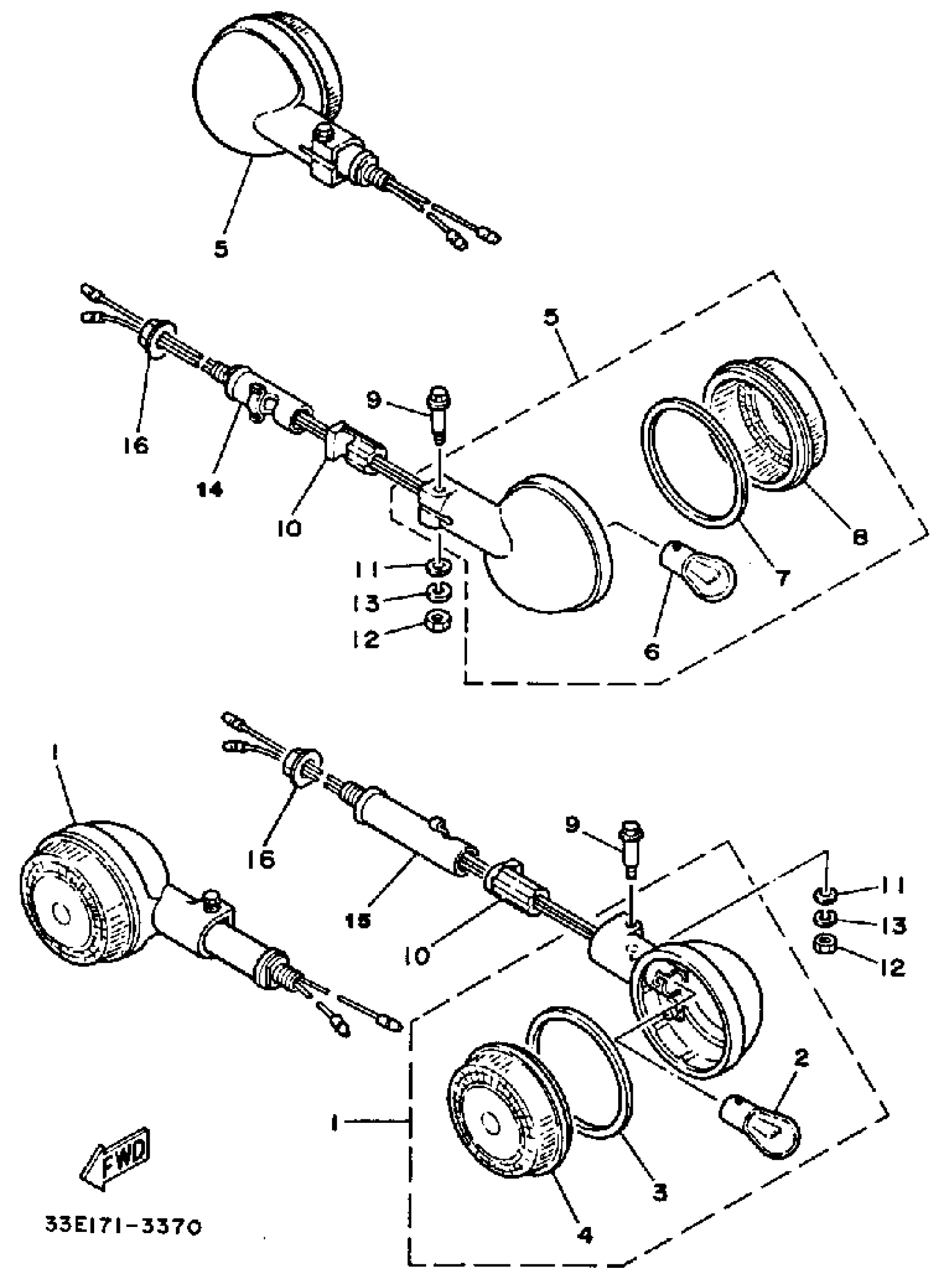

Yamaha RZ350NCII (RZ350II CA) 1985 TURNSIGNAL Diagram

#

Description
Price

1

R FLSHR LITE ASSEMBLY

29L-83330-70-00

Unavailable

2

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

3

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

4

LENS, FLASHER

3Y6-83312-00-00

$10.99

5

R FLSHR LITE ASSEMBLY

29L-83330-70-00

Unavailable

6

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

7

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

8

LENS, FLASHER

3Y6-83312-00-00

$10.99

9

BOLT, FLASHER 1

3Y6-83317-00-00

Unavailable

10

DAMPER, FLASHER 1

4L0-83321-00-00

$23.99

11

WASHER(1RW)

92907-05600-00

$3.78

12

NUT, HEXAGON

95317-05600-00

$2.34

13

WASHER(3SX)

92907-05100-00

$8.49

14

STAY, FLASHER 1

13W-83318-00-00

Unavailable

15

STAY, FLASHER 1

4L0-83318-00-00

Unavailable

16

NUT(3GG)

90179-12588-00

Unavailable
