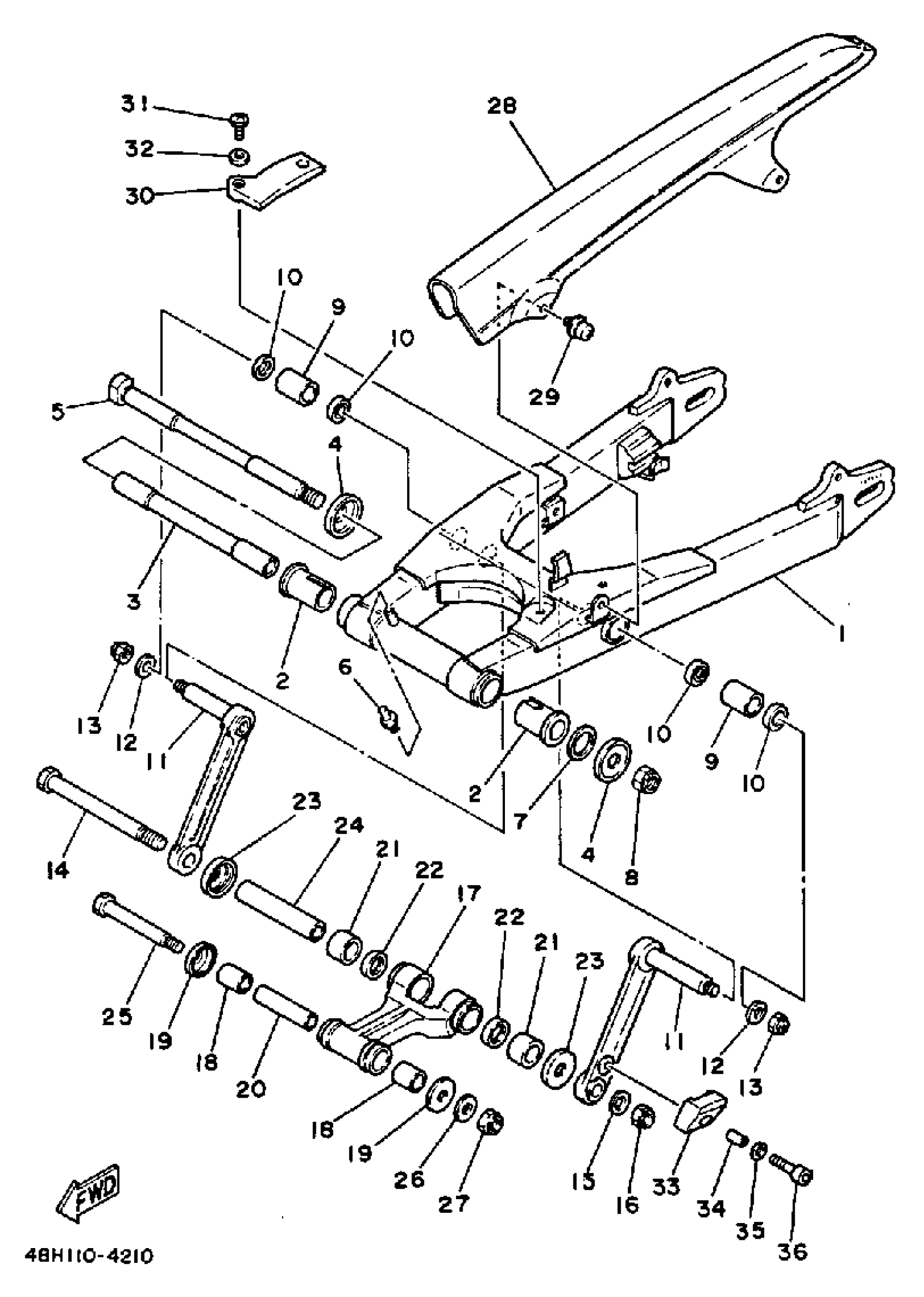

Yamaha RZ350NCII (RZ350II CA) 1985 SWING ARM Diagram
#
1
REAR ARM
48H-22110-00-35
Unavailable
3
BUSH
51L-22184-00-00
Unavailable
5
SHAFT, PIVOT
29L-22141-00-00
Unavailable
6
NIPPLE, GREASE
93700-06M03-00
Unavailable
7
WASHER, PLATE(48H)
90201-161J3-00
Unavailable
9
BUSH(29K)
90386-18136-00
Unavailable
11
ARM 1 (31K-2217M-00-33)
31K-2217M-00-00
Unavailable
14
BOLT
90101-14585-00
Unavailable
15
WASHER
92990-14600-00
Unavailable
16
NUT, U(4JT)
95617-14100-00
Unavailable
17
ARM, RELAY
(31K-2217A-00-00)
Unavailable
18
BUSH (29L)
90386-18118-00
Unavailable
19
COVER, THRUST 2
26H-22129-00-00
Unavailable
20
COLLAR
90387-127H2-00
Unavailable
21
BUSH(29K)
90386-20134-00
Unavailable
22
UNAVAILABLE IN PRICE BOOK
92109-20029-00
Unavailable
23
COVER, thrust 1
26H-22128-00-00
Unavailable
24
COLLAR
90387-144H4-00
Unavailable
25
BOLT
90109-10739-00
Unavailable
26
WASHER, PLATE (26H)
90201-102G9-00
Unavailable
27
NUT, U
95617-10100-00
Unavailable
28
CASE, CHAIN
29L-22311-01-00
Unavailable
29
SCREW, PANHEAD W/WASHER (22F)
90159-06082-00
Unavailable
30
SEAL, GUARD
29L-22151-00-00
Unavailable
31
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
32
WASHER, PLAIN (646)
92990-05600-00
Unavailable
33
GUIDE, CHAIN
31K-22187-00-00
Unavailable
34
COLLAR (23H)
90387-060G5-00
Unavailable
35
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
36
BOLT, SOCKET
91314-06030-00
Unavailable
