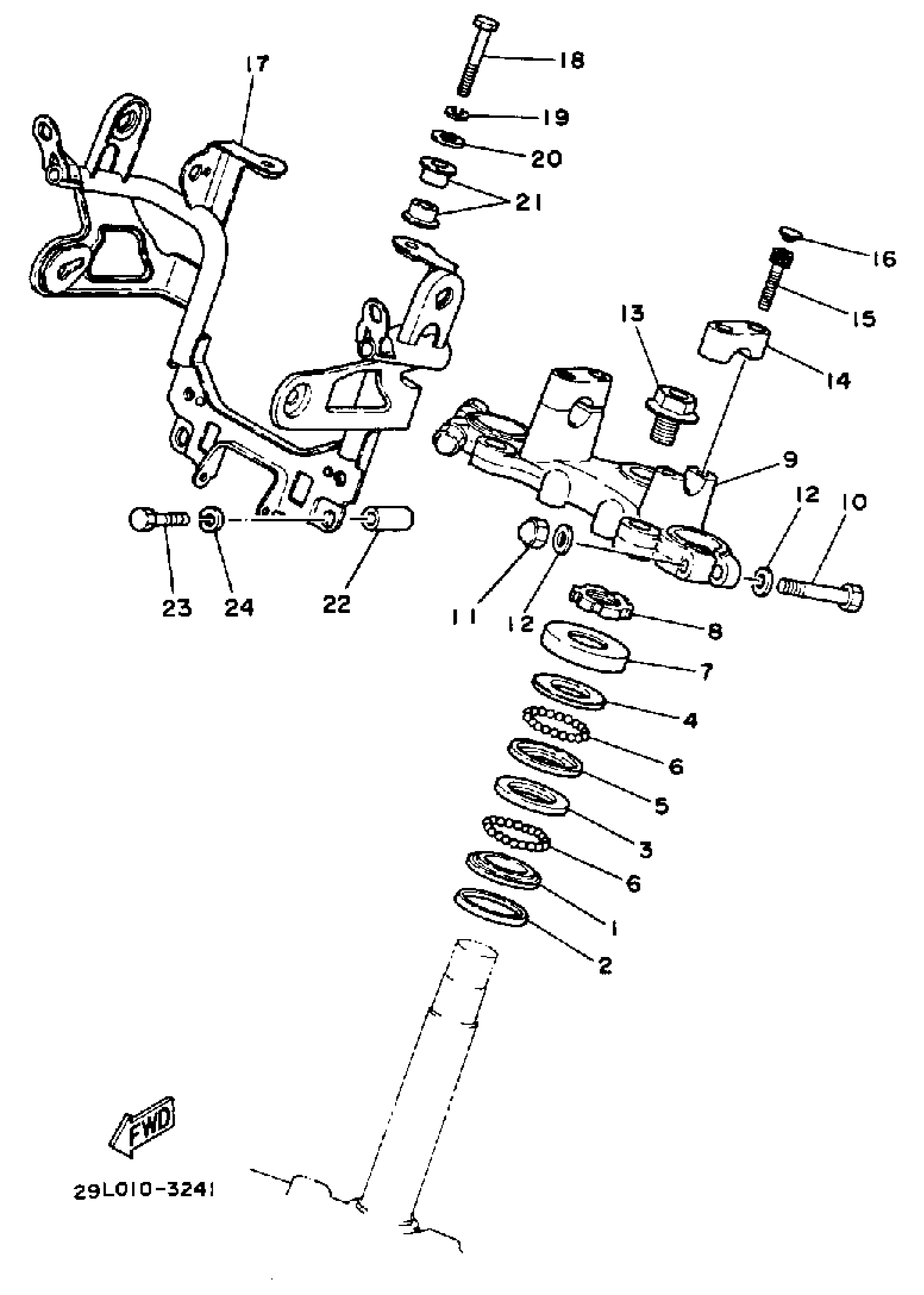

Yamaha RZ350NCII (RZ350II CA) 1985 STEERING Diagram

#

Description
Price

1

RACE, BALL 1

B6E-23411-00-00

$6.54

2

SEAL, DUST

164-23462-00-00

$5.98

3

RACE, BALL 2

B6E-23412-00-00

$9.05

4

RACE, BALL 1

4FP-F3411-20-00

$8.14

5

RACE,BALL 2

4FP-F3412-10-00

Unavailable

6

BALL

93501-04011-00

$5.84

7

COVER, BALL RACE

136-23415-00-00

$7.18

8

NUT

90179-25004-00

$19.41

9

CROWN, HANDLE

29L-23435-00-98

Unavailable

10

BOLT(6TC)

97027-08050-00

$5.53

11

NUT, CAP

95307-08800-00

$5.65

12

WASHER(6TA)

92907-08600-00

$2.34

13

BOLT (2A2)

90105-14102-00

$4.81

14

HOLDER, HANDLE UPPER

4H7-23441-01-98

$34.00

15

BOLT, SOCKET

91317-08030-00

$5.75

16

CAP, BOLT (371,447)

341-23469-00-00

Unavailable

17

STAY, HEADLIGHT

29L-23174-00-98

Unavailable

18

BOLT(8BC)

97017-06040-00

Unavailable

19

WASHER, SPRING

92907-06100-00

Unavailable

20

WASHER, PLATE

90201-06380-00

Unavailable

21

DAMPER, METER BRACKET

584-83541-00-00

Unavailable

22

COLLAR

90387-081U4-00

Unavailable

23

BOLT

97017-08035-00

Unavailable

24

WASHER(JN5)

92907-08100-00

Unavailable
