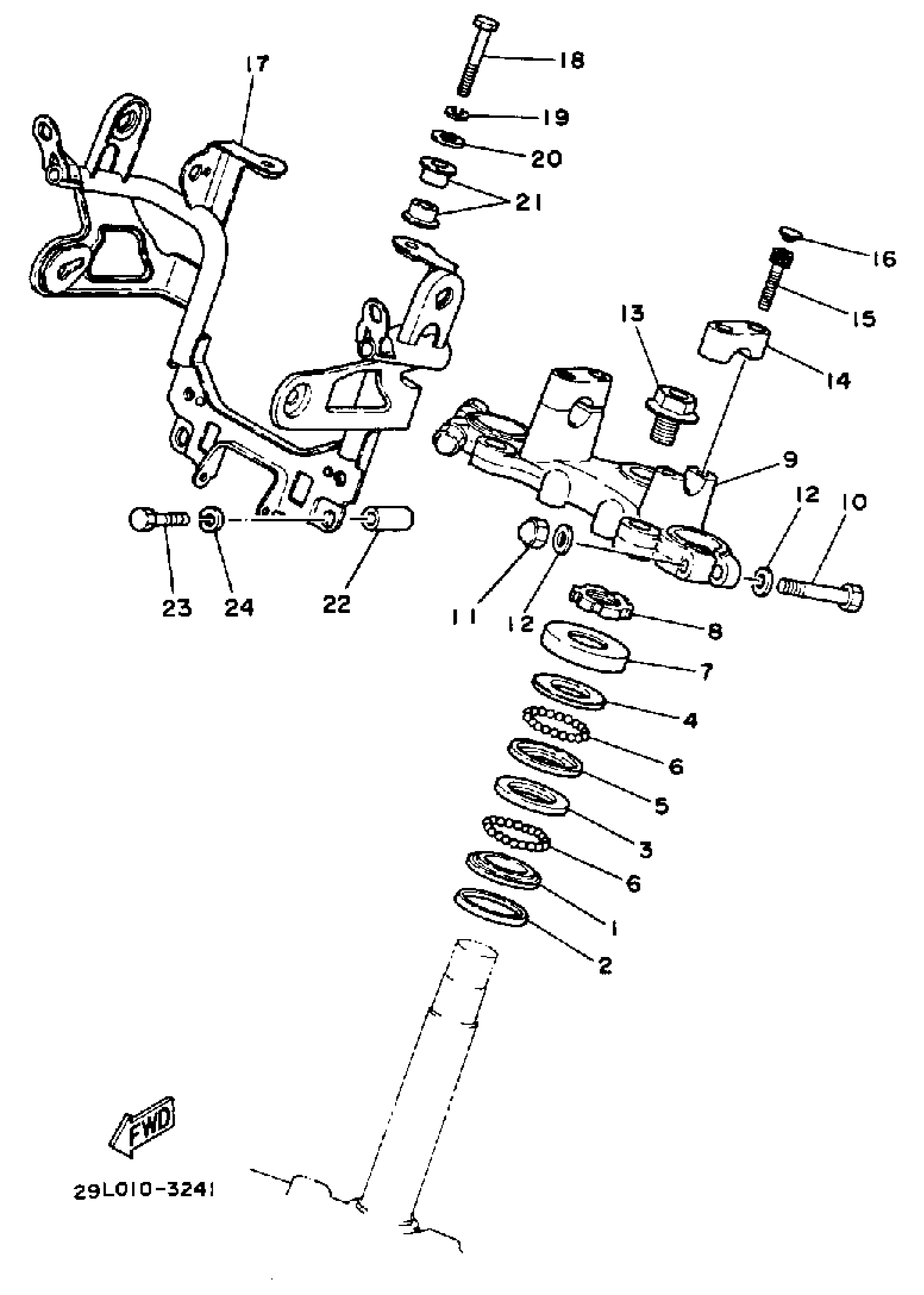

Yamaha RZ350NCII (RZ350II CA) 1985 STEERING Diagram

#

Description
Price

1

RACE, BALL 1

B6E-23411-00-00

$8.49

2

SEAL, DUST

164-23462-00-00

$7.99

3

RACE, BALL 2

B6E-23412-00-00

$13.49

4

RACE, BALL 1

4FP-F3411-20-00

$9.99

5

RACE,BALL 2

4FP-F3412-10-00

Unavailable

6

BALL

93501-04011-00

$8.49

7

COVER, BALL RACE

136-23415-00-00

$8.99

8

NUT

90179-25004-00

$24.99

9

CROWN, HANDLE

29L-23435-00-98

Unavailable

10

BOLT(6TC)

97027-08050-00

$7.49

11

NUT, CAP

95307-08800-00

$7.49

12

WASHER(6TA)

92907-08600-00

$3.03

13

BOLT (2A2)

90105-14102-00

$5.60

14

HOLDER, HANDLE UPPER

4H7-23441-01-98

$40.99

15

BOLT, SOCKET

91317-08030-00

$8.49

16

CAP, BOLT (371,447)

341-23469-00-00

Unavailable

17

STAY, HEADLIGHT

29L-23174-00-98

Unavailable

18

BOLT(8BC)

97017-06040-00

Unavailable

19

WASHER, SPRING

92907-06100-00

Unavailable

20

WASHER, PLATE

90201-06380-00

Unavailable

21

DAMPER, METER BRACKET

584-83541-00-00

Unavailable

22

COLLAR

90387-081U4-00

Unavailable

23

BOLT

97017-08035-00

Unavailable

24

WASHER(JN5)

92907-08100-00

Unavailable
