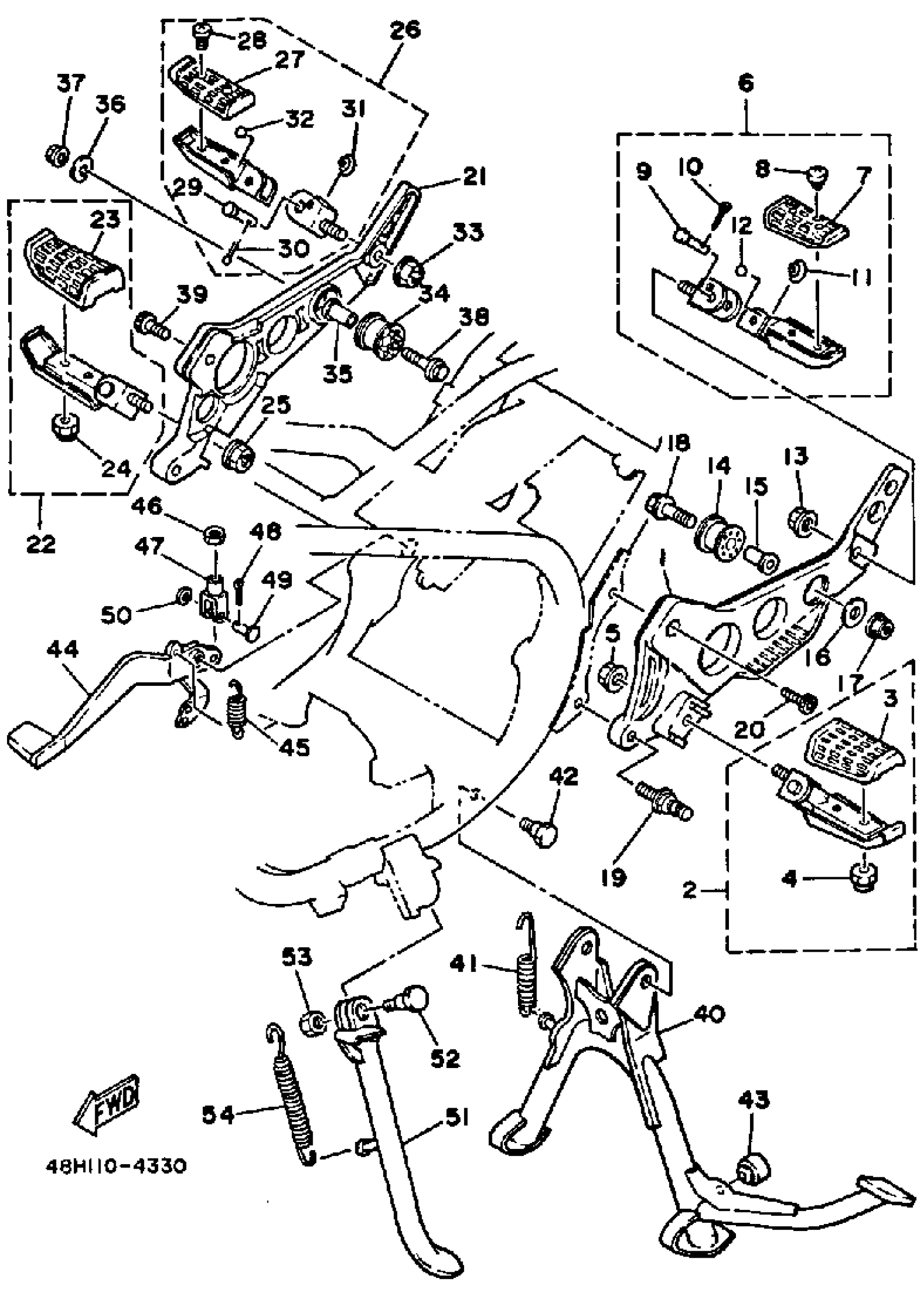

Yamaha RZ350NCII (RZ350II CA) 1985 STAND - FOOTREST Diagram

#

Description
Price

1

BRACKET 2

29L-27442-01-00

Unavailable

2

FRT FOOTREST ASSEMBLY L

33M-27410-01-00

Unavailable

3

COVER, FOOTREST

22N-27413-00-00

$48.99

4

NUT, SELF-LOCKING

95617-06100-00

$8.49

5

NUT, FLANGE(3BM)

95704-10500-00

$4.29

6

RR FOOTREST ASSEMBLY 1

29L-27430-00-00

Unavailable

7

. COVER, RR FOOTREST

22N-27433-00-00

Unavailable

8

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

9

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

10

PIN, COTTER

91490-16020-00

Unavailable

11

SPRING, COMPRESSION (29L)

90501-16761-00

$7.49

12

BALL

93501-04011-00

$8.49

13

NUT, FLANGE(3BM)

95704-10500-00

$4.29

14

DAMPER, FOOTREST

48H-27414-00-00

Unavailable

15

COLLAR

90387-084L1-00

Unavailable

16

WASHER, PLATE (4R4)

90201-080E4-00

Unavailable

17

NUT, SELF-LOCKING(3BN)

90185-08146-00

Unavailable

18

BOLT, WASHER BASED(36Y)

90105-08310-00

Unavailable

19

BOLT

90109-10754-00

Unavailable

20

BOLT,SOCKET

91314-10025-00

Unavailable

21

BRACKET 3

29L-27443-01-00

Unavailable

22

FRT FOOTREST ASSEMBLY R

33M-27420-01-00

Unavailable

23

COVER, FOOTREST

22N-27413-00-00

$48.99

24

NUT, SELF-LOCKING

95617-06100-00

$8.49

25

NUT, FLANGE(3BM)

95704-10500-00

$4.29

26

RR FOOTREST ASSEMBLY 2

29L-27440-00-00

Unavailable

27

. COVER, RR FOOTREST

22N-27433-00-00

Unavailable

28

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

29

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

30

PIN, COTTER

91490-16020-00

Unavailable

31

SPRING, COMPRESSION (29L)

90501-16761-00

$7.49

32

BALL

93501-04011-00

$8.49

33

NUT, FLANGE(3BM)

95704-10500-00

$4.29

34

DAMPER, FOOTREST

48H-27414-00-00

Unavailable

35

COLLAR

90387-084L1-00

Unavailable

36

WASHER, PLATE (4R4)

90201-080E4-00

Unavailable

37

NUT, SELF-LOCKING(3BN)

90185-08146-00

Unavailable

38

BOLT, WASHER BASED(36Y)

90105-08310-00

Unavailable

39

BOLT,SOCKET

91314-10025-00

Unavailable

40

STAND, MAIN

29L-27111-01-R4

Unavailable

41

SPRING, TENSION

90506-35349-00

Unavailable

42

BOLT (29L)

90109-10737-00

Unavailable

43

STOPPER, MAIN STAND

1A0-27114-00-00

Unavailable

44

PEDAL, BRAKE (29L-27211-01)

51L-27200-00-00

Unavailable

45

UNAVAILABLE IN PRICE BOOK

90405-20192-00

Unavailable

46

. NUT

95380-08700-00

Unavailable

47

JOINT

47X-27222-00-00

Unavailable

48

PIN, COTTER

91490-16020-00

Unavailable

49

PIN W/HOLE 307181180000

90240-08013-00

Unavailable

50

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

51

STAND, SIDE

33E-27311-00-33

Unavailable

52

BOLT

90109-10473-00

Unavailable

53

NUT, U

90185-10037-00

Unavailable

54

SPRING (4L0)

90507-29032-00

Unavailable
