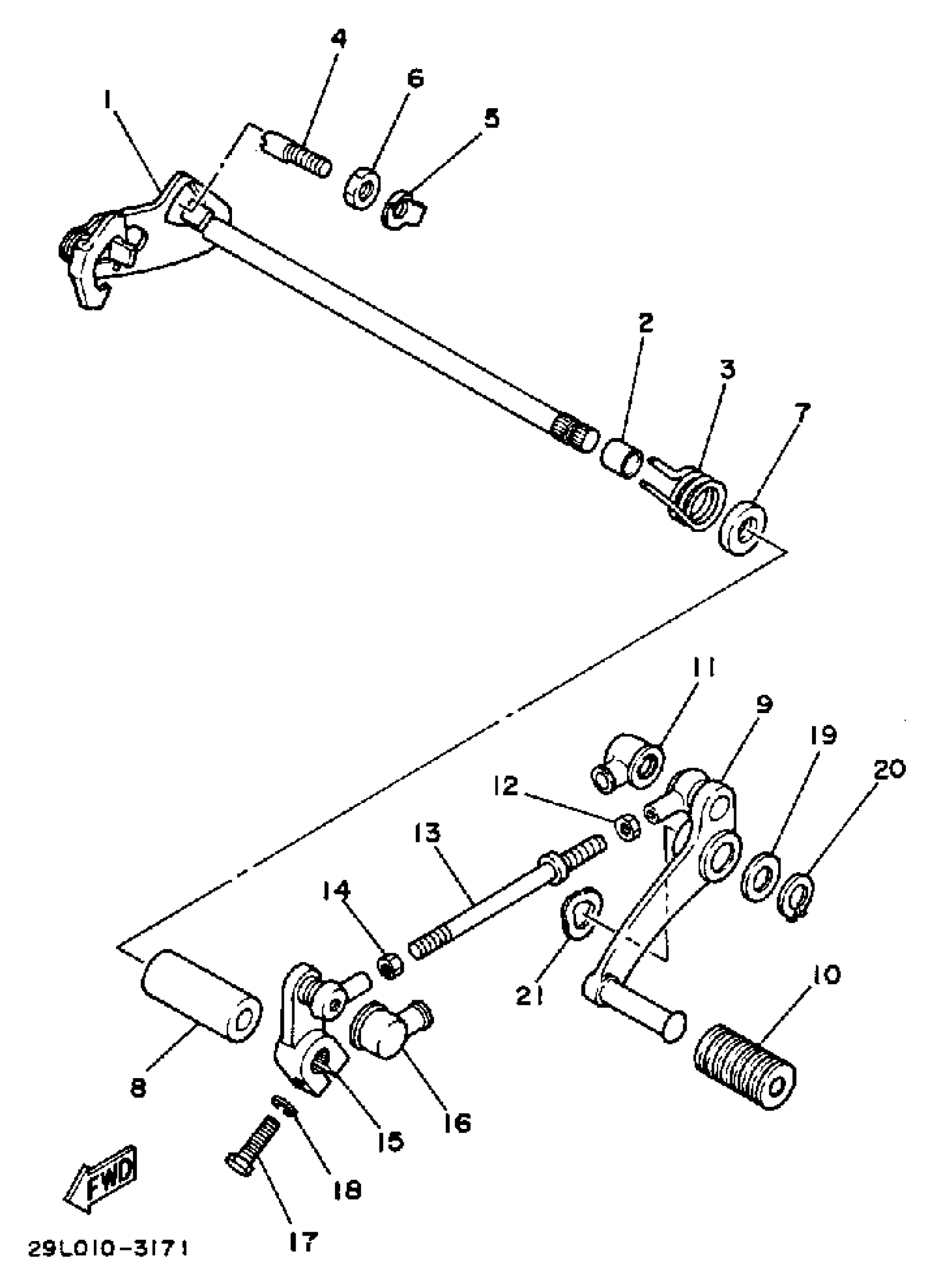

Yamaha RZ350NCII (RZ350II CA) 1985 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSY

2GU-18101-00-00

$68.90

2

SPACER

90560-12171-00

Unavailable

3

SPRING, TORSION (2K7)

90508-32374-00

$5.30

4

SCREW, ADJUSTING (367)

90149-08094-00

$4.57

5

WASHER, LOCK (4L0)

90215-08174-00

$6.46

6

NUT (583)

90170-08193-00

$2.73

7

SEAL, OIL (30X)

93102-12321-00

$9.45

8

COLLAR (4G0)

90387-125A8-00

$2.83

9

PEDAL, SHIFT

29L-18111-00-00

Unavailable

10

COVER, CHANGE PEDAL

132-18113-01-00

$5.96

11

COVER, DUST

2H9-18154-00-00

$5.12

12

NUT(650)

95380-06700-00

$5.75

13

ROD, SHIFT

29L-18115-00-00

Unavailable

14

NUT (2H9)

90170-06228-00

$6.12

15

ARM, SHIFT

29L-18112-00-00

Unavailable

16

COVER, DUST

2H9-18154-00-00

$5.12

17

BOLT, HEXAGON

97017-06020-00

Unavailable

18

WASHER, SPRING

92995-06100-00

$2.95

19

WASHER, PLATE

90201-12047-00

Unavailable

20

CIRCLIP(10Y)

99009-12400-00

Unavailable

21

WASHER, WAVE (17W)

90206-12074-00

Unavailable
