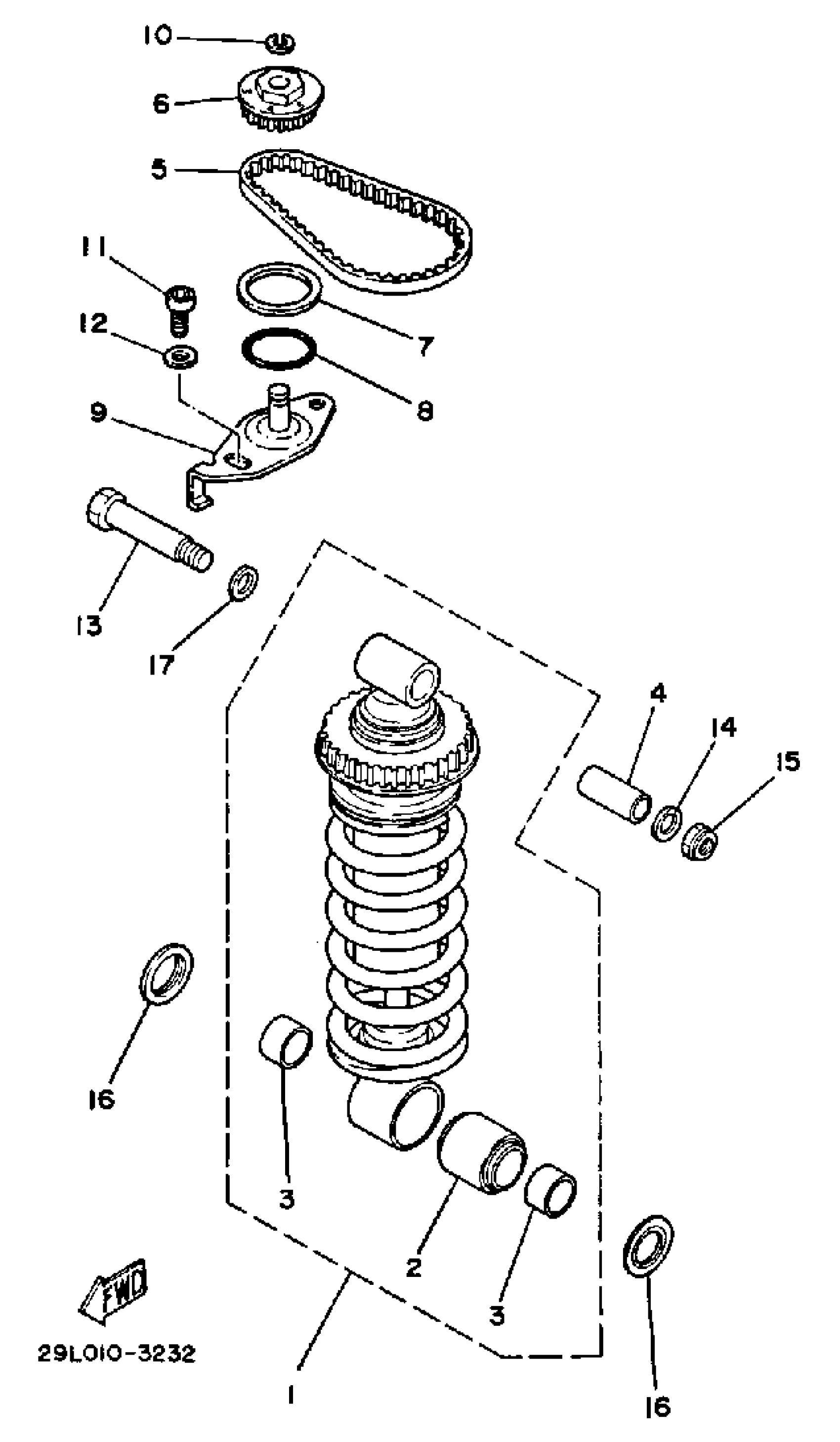

Yamaha RZ350NCII (RZ350II CA) 1985 REAR SHOCKS Diagram

#

Description
Price

1

SHK ABS ASSEMBLY REAR

51L-22210-00-00

Unavailable

2

. BUSH, RR SHOCK ABS

29L-22216-00-00

Unavailable

3

BUSH, FORMED(1RX)

90383-20033-00

$16.99

4

COLLAR(3FD)

90387-1210W-00

Unavailable

5

BELT, TIMING

29L-22266-01-00

Unavailable

6

PULLEY

29L-22267-00-00

Unavailable

7

WASHER, PLATE

90201-202H3-00

Unavailable

8

O-RING

93210-347A1-00

$7.49

9

BRACKET, PULLEY

(29L-22268-00-00)

Unavailable

10

CIRCLIP, OUTER

93440-10123-00

Unavailable

11

BOLT, SOCKET

91317-08020-00

$8.49

12

WASHER(6TC)

92907-08200-00

$8.49

13

BOLT (1M1)

90109-10453-00

Unavailable

14

WASHER, PLATE (26H)

90201-102G9-00

$9.49

15

NUT, U

95617-10100-00

$8.49

16

COVER, DUST

29L-2217H-00-00

Unavailable

17

WASHER, PLATE

90201-12047-00

Unavailable
