Description

Price

1

MASTER CYLINDER ASSY

29L-25850-51-00

Unavailable

2

CYLINDER KIT, MASTER

4GY-W0042-00-00

Unavailable

3

CONNECTOR

29L-2582A-50-00

Unavailable

4

O-RING (22U)

93210-15566-00

$7.49

5

SCREW, PAN HEAD

98511-04012-00

Unavailable

6

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

7

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

8

HOSE, RESERVOIR

29L-25895-00-00

Unavailable

9

CLAMP, HOSE

90460-12268-00

Unavailable

10

TANK, RESERVOIR

1A1-25894-01-00

$24.99

11

CAP, RESERVOIR

2KF-25852-50-00

$47.99

12

DIAPHRAGM, RESERVER

360-25854-01-00

$23.99

13

UNAVAILABLE IN PRICE BOOK (360-25855-01)

2GU-25855-01-00

Unavailable

14

BOLT, HEXAGON

97017-08030-00

$9.49

15

WASHER(JN5)

92907-08100-00

$8.49

16

WASHER(6TA)

92907-08600-00

Unavailable

17

SCREW, WITH WASHER (5U8)

90159-06056-00

Unavailable

18

HOSE BRAKE 1

29L-25872-51-00

Unavailable

19

BOLT, UNION(3GM)

90401-10159-00

Unavailable

20

WASHER, PLATE(481)

90201-10118-00

Unavailable

21

HOLDER, BRKE HOSE 1

(29L-25875-00-00)

Unavailable

22

BOLT, HEXAGON

97017-06012-00

Unavailable

23

WASHER, SPRING

92907-06100-00

Unavailable

24

WASHER(6TA)

92907-06600-00

Unavailable

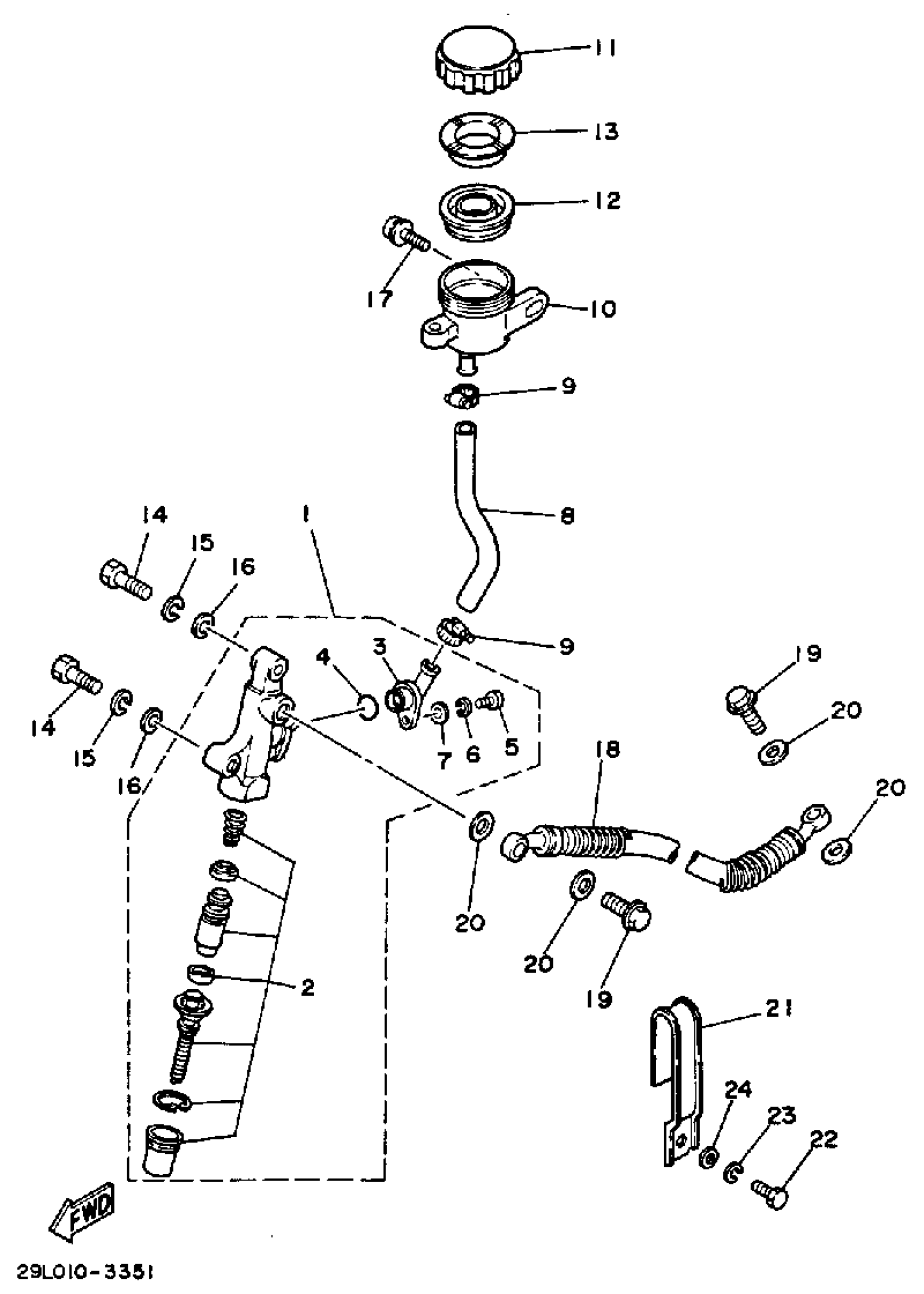

Yamaha RZ350NCII (RZ350II CA) 1985 REAR MASTER CYLINDER Diagram

MASTER CYLINDER ASSY

CYLINDER KIT, MASTER

CONNECTOR

O-RING (22U)

SCREW, PAN HEAD

YBS66-4 WASHER, PLAIN

YBS66-4 WASHER, PLAIN

HOSE, RESERVOIR

CLAMP, HOSE

TANK, RESERVOIR

CAP, RESERVOIR

DIAPHRAGM, RESERVER

UNAVAILABLE IN PRICE BOOK (360-25855-01)

BOLT, HEXAGON

WASHER(JN5)

WASHER(6TA)

SCREW, WITH WASHER (5U8)

HOSE BRAKE 1

BOLT, UNION(3GM)

WASHER, PLATE(481)

HOLDER, BRKE HOSE 1

BOLT, HEXAGON

WASHER, SPRING

WASHER(6TA)
