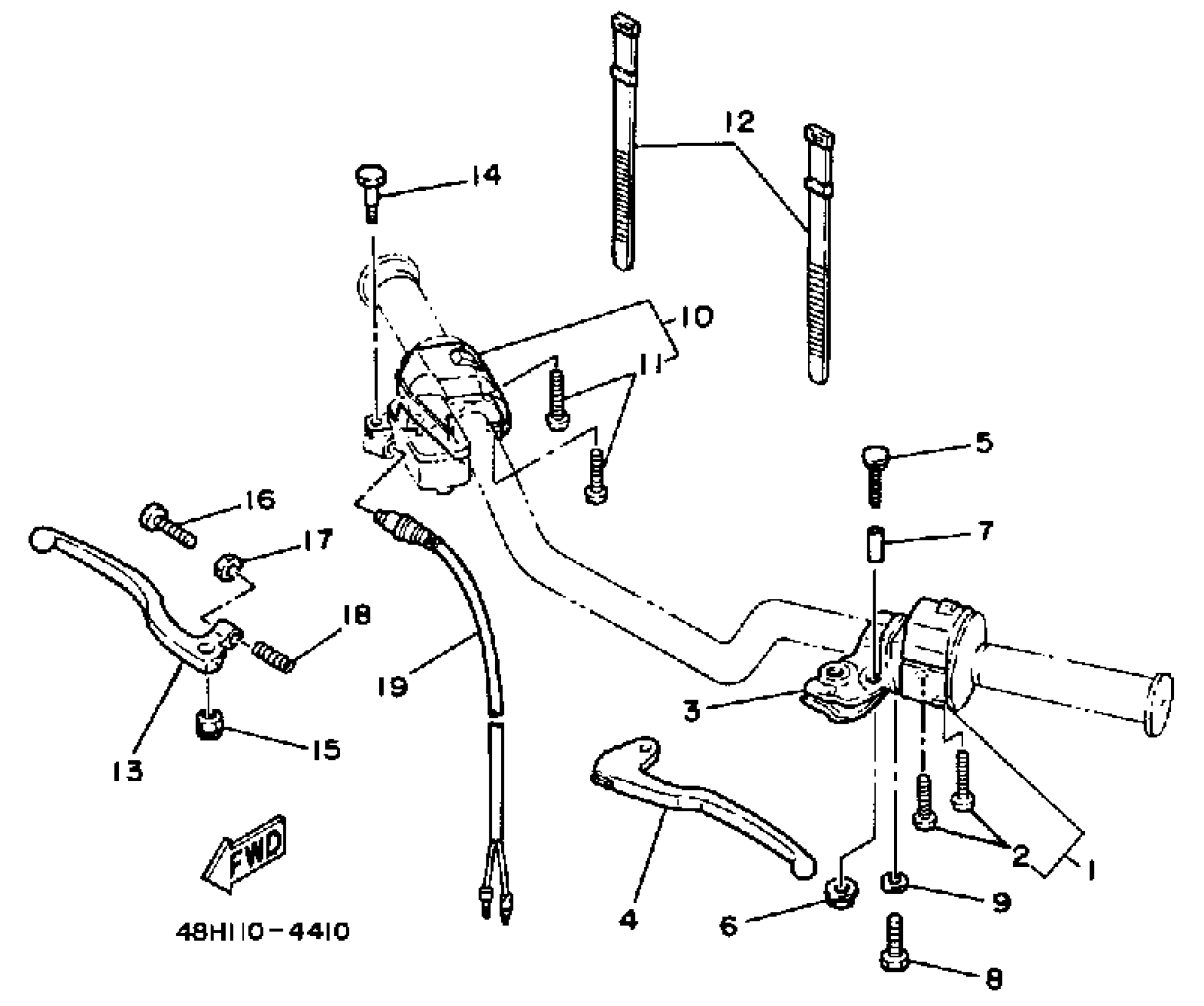

Yamaha RZ350NCII (RZ350II CA) 1985 HANDLE SWITCH-LEVER Diagram

#

Description
Price

1

SWITCH, HANDLE 3

52X-83973-00-00

Unavailable

2

SCREW, PAN

98507-05035-00

$8.49

3

HOLDER, LEVER 1

29L-82911-01-00

$60.99

4

LEVER 1

29L-83912-01-00

$47.99

5

BOLT, LEVER

31A-83945-00-00

$5.49

6

NUT, FLANGE(4MV)

95707-06500-00

$1.23

7

COLLAR, LEVER 1

31A-83913-00-00

$22.99

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

WASHER, SPRING

92907-06100-00

$4.25

10

SWITCH, HANDLE 1

48H-83976-00-00

Unavailable

11

SCREW, PAN

98507-05040-00

$8.49

12

BAND, SWITCH CORD

437-83936-01-00

$7.99

13

LEVER 2

31A-83922-00-00

Unavailable

14

BOLT (4L0)

90109-06577-00

$5.60

15

NUT, SELF-LOCKING

95617-06100-00

$8.49

16

SCREW (2L0)

90149-06131-00

Unavailable

17

NUT HEXAGON 306839270000

90170-06010-00

Unavailable

18

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable

19

FRONT STOP SWITCH ASSY

26H-83980-00-00

Unavailable
