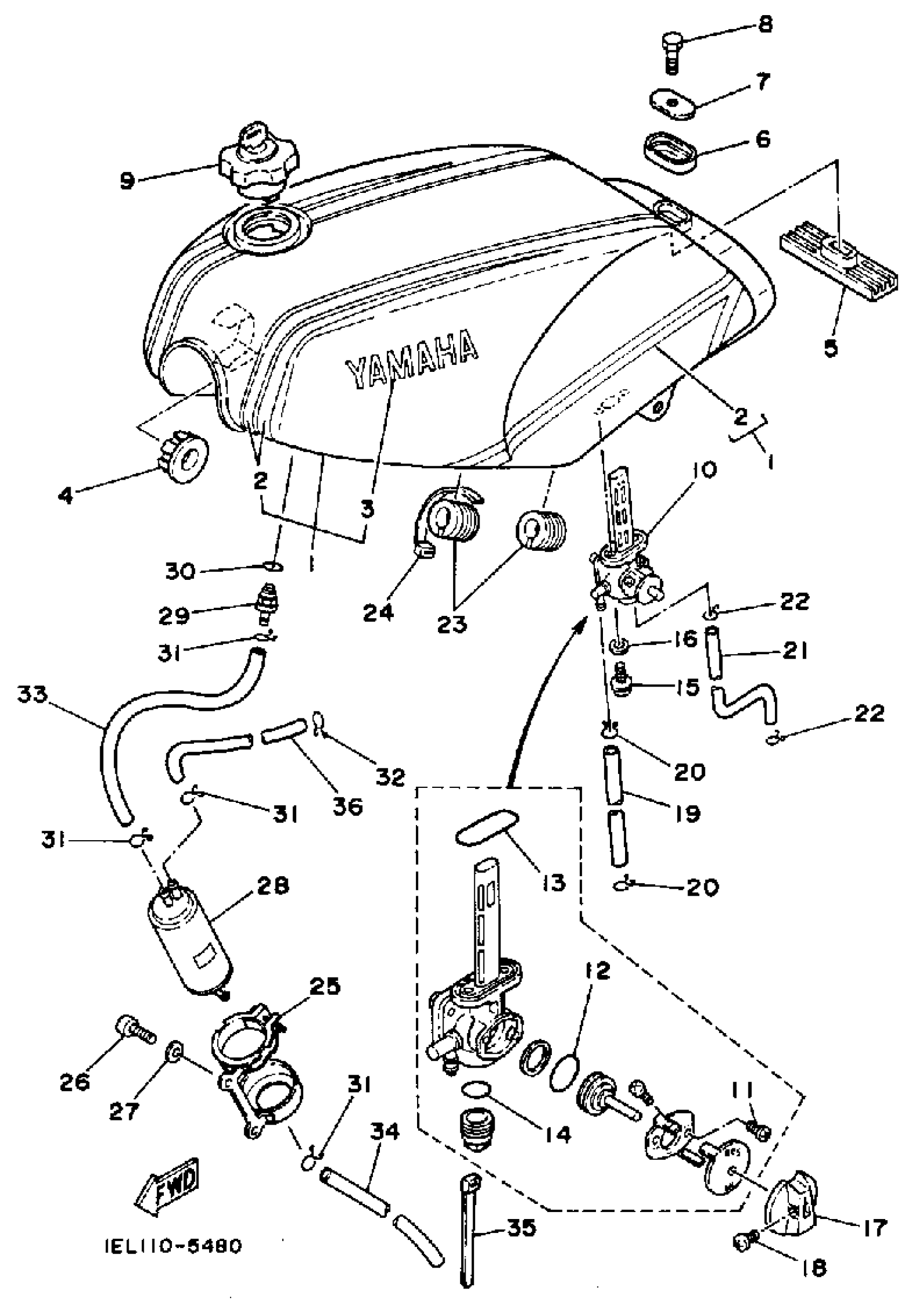

Yamaha RZ350NCII (RZ350II CA) 1985 FUEL TANK (RZ350NC) Diagram

FUEL TANK COMP.

1EL-24110-00-X1

Unavailable

FUEL TANK COMP.

1EL-24110-00-X2

Unavailable

FUEL TANK

1EL-24110-00-X3

Unavailable

. GRAPHIC SET (COMPETITION YELLOW)

29L-24240-50-00

Unavailable

. GRAPHIC SET

29L-24240-60-00

Unavailable

. GRAPHIC SET

48H-24240-00-00

Unavailable

EMBLEM, YAMAHA

99243-00160-00

$12.49

EMBLEM, YAMAHA(3XV)

99224-00160-00

$15.99

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

DAMPER, LOCATING 4

2GH-24184-00-00

Unavailable

DAMPER, LOCATING 3

3Y6-24183-00-00

$7.99

WASHER, SPECIAL

12R-24186-00-00

$9.99

BOLT, HEXAGON

97013-08030-00

$2.49

CAP ASSY

51K-24602-10-00

Unavailable

FUEL COCK ASSY 1

29L-24500-03-00

$271.99

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

O-RING, FUEL COCK

3H3-24534-00-00

Unavailable

O-RING

2W6-24512-00-00

Unavailable

GASKET

4X8-24565-10-00

Unavailable

SCREW 256241430000

90149-06011-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

LEVER, COCK

29L-24524-01-00

Unavailable

SCREW, PAN HEAD(3AC)

98517-03008-00

Unavailable

HOSE (L120)

90445-113E8-00

Unavailable

CLIP

90467-100A1-00

Unavailable

HOSE

29L-2416A-00-00

Unavailable

CLIP (16G)

90467-08021-00

Unavailable

DAMPER, TANK LOCATING 3

1J7-24183-02-00

Unavailable

CLAMP

5Y9-12491-00-00

Unavailable

CANISTER HOLD ASSEMBLY

(1EL-24190-00-00)

Unavailable

BOLT(3JP)

97017-06010-00

Unavailable

WASHER(6TA)

92907-06600-00

Unavailable

CANISTER ASSEMBLY

(51K-24170-00-00)

Unavailable

ROLL OVER VALVE ASSY

20K-24180-00-00

Unavailable

O-RING (4G0)

93210-11453-00

Unavailable

CLIP

90467-090A2-00

Unavailable

CLIP(1JH)

90467-11106-00

Unavailable

HOSE

(90445-102E4-00)

Unavailable

HOSE (L370)

90445-112E1-00

Unavailable

CLAMP

5Y9-12491-00-00

Unavailable

HOSE

(1EL-2416A-00-00)

Unavailable
