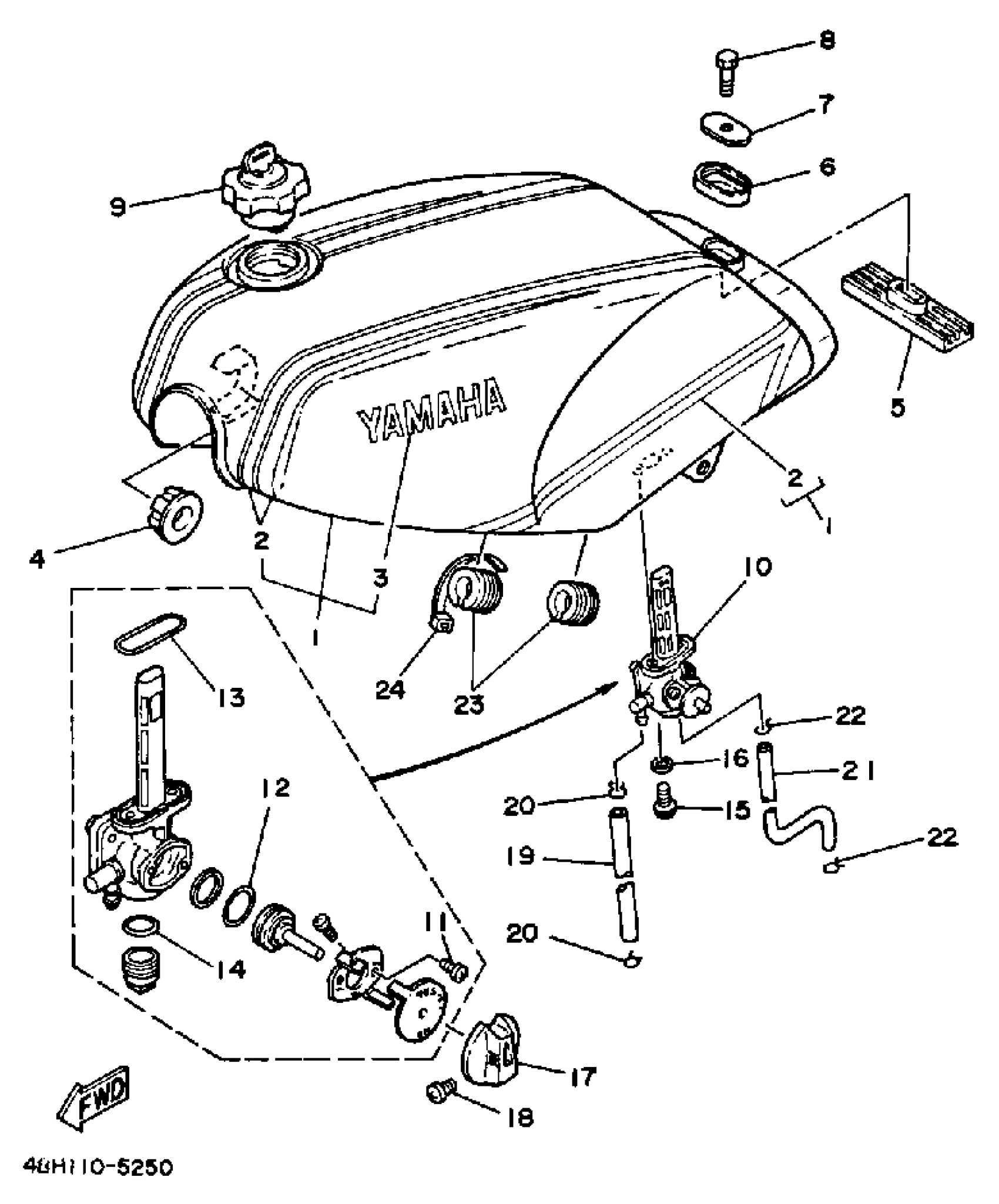

Yamaha RZ350NCII (RZ350II CA) 1985 FUEL TANK (RZ350N) Diagram

#

Description
Price

1

FUEL TANK

48H-24110-01-X1

Unavailable

1

FUEL TANK

48H-24110-01-X4

Unavailable

2

. GRAPHIC SET (COMPETITION YELLOW)

29L-24240-50-00

Unavailable

2

. GRAPHIC SET

29L-24240-60-00

Unavailable

3

EMBLEM, YAMAHA

99243-00160-00

$12.49

3

EMBLEM, YAMAHA(3XV)

99224-00160-00

$15.99

4

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

5

DAMPER, LOCATING 4

2GH-24184-00-00

Unavailable

6

DAMPER, LOCATING 3

3Y6-24183-00-00

$7.99

7

WASHER, SPECIAL

12R-24186-00-00

$9.99

8

BOLT, HEXAGON

97013-08030-00

$2.49

9

CAP ASSY

11H-24602-10-00

$101.99

10

FUEL COCK ASSY 1

29L-24500-03-00

$271.99

11

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

12

O-RING, FUEL COCK

3H3-24534-00-00

$14.49

13

O-RING

2W6-24512-00-00

Unavailable

14

GASKET

4X8-24565-10-00

Unavailable

15

SCREW 256241430000

90149-06011-00

Unavailable

16

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

17

LEVER, COCK

29L-24524-01-00

Unavailable

18

SCREW, PAN HEAD(3AC)

98517-03008-00

Unavailable

19

HOSE (L120)

90445-113E8-00

Unavailable

20

CLIP

90467-100A1-00

Unavailable

21

HOSE

29L-2416A-00-00

Unavailable

22

CLIP (16G)

90467-08021-00

Unavailable

23

DAMPER, TANK LOCATING 3

1J7-24183-02-00

Unavailable

24

CLAMP

5Y9-12491-00-00

Unavailable
