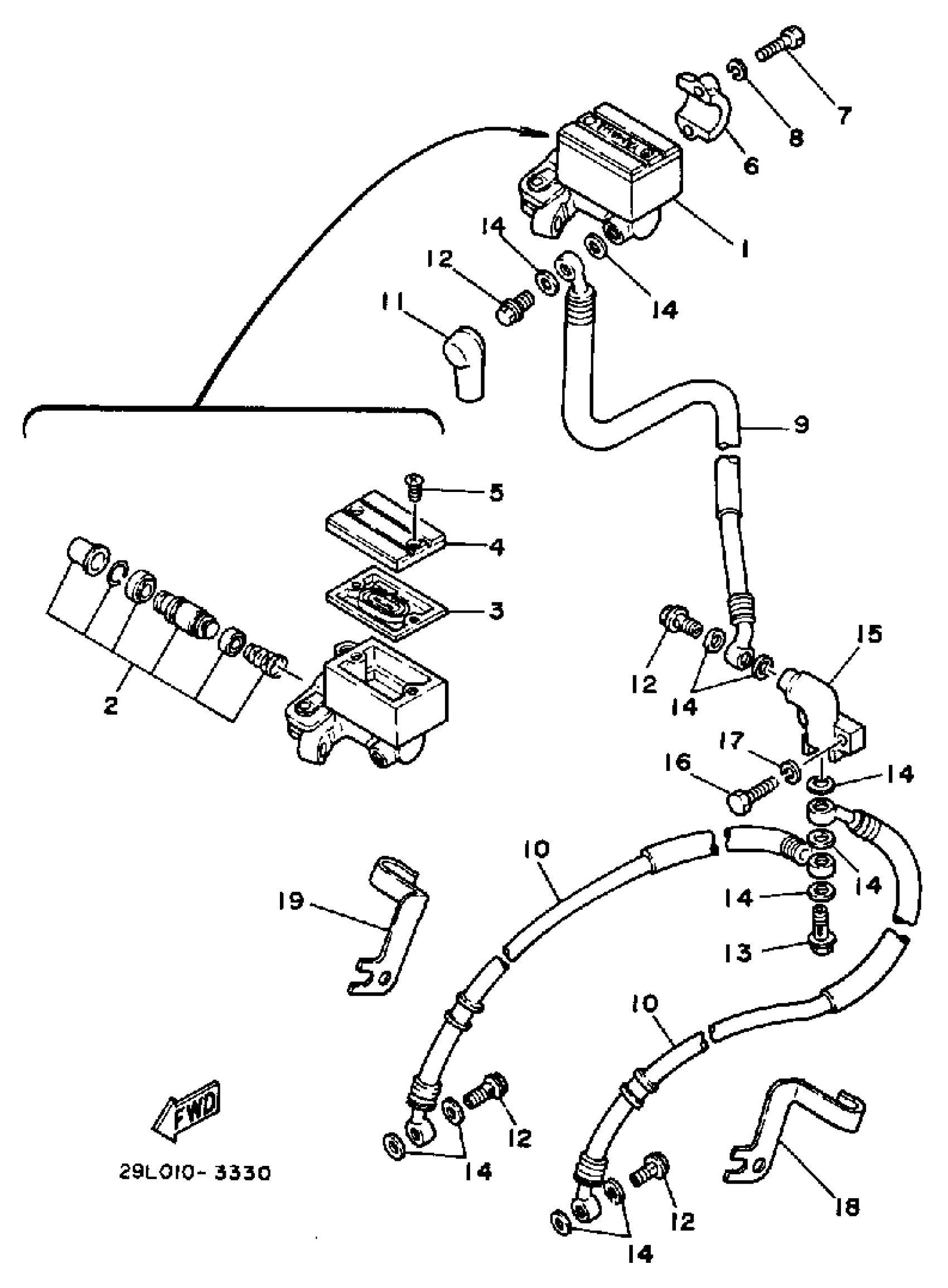

Yamaha RZ350NCII (RZ350II CA) 1985 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

4G0-25850-01-00

Unavailable

2

CYLINDER KIT, MASTER

4K0-W0041-50-00

Unavailable

3

DIAPHRAGM, RESERVOIR

4HM-25854-00-00

$29.13

4

CAP, RESERVOIR

3GM-25852-02-00

$52.23

5

SCREW, FLAT

98707-04012-00

$1.34

6

BRACKET, MASTER CYLINDER

4L0-25867-00-00

Unavailable

7

BOLT, HEXAGON

97017-06025-00

$2.78

8

WASHER, SPRING

92907-06100-00

$0.98

9

HOSE, BRAKE 1

29L-25872-01-00

Unavailable

10

HOSE, BRAKE 2

29L-25873-01-00

Unavailable

11

BOOT, MASTER CYLINDER

4L0-25862-01-00

$5.96

12

BOLT, UNION(3GM)

90401-10159-00

$8.26

13

BOLT, UNION

90401-10038-00

$10.46

14

WASHER, PLATE(481)

90201-10118-00

Unavailable

15

JOINT

1J7-25885-01-00

Unavailable

16

BOLT, HEXAGON

97017-06025-00

$2.78

17

WASHER, SPRING

92907-06100-00

$0.98

18

HOLDER, brake hose 1

11H-25875-10-00

Unavailable

19

HOLDER, brake hose 1

11U-25875-00-00

Unavailable
