Description

Price

1

DISC, BRAKE

29L-25831-10-00

Unavailable

2

DISC, BRAKE (RT)

29L-25831-20-00

Unavailable

3

BOLT,HEX. SOCKET BUTTON

90111-08084-00

$5.60

4

UNAVAILABLE IN PRICE BOOK (29L-25810-00)

29L-2581U-00-00

Unavailable

5

BRAKE PAD KIT

43F-W0045-01-00

Unavailable

6

. SHIM, CALIPER

11U-25827-00-00

Unavailable

7

PAD SPRING, CALIPER

11H-25919-00-00

Unavailable

8

PISTON ASSY, CALIPER

4X8-W0057-00-00

$139.99

9

BLEED SCREW KIT

15B-W0048-00-00

$19.99

10

BOOT

4X8-25917-00-00

Unavailable

11

BOOT 2

5R2-25937-00-00

$37.99

12

CALIPER ASSEMBLY (LEFT) (11H-25810-10) (LEFT)

29L-2580T-00-00

Unavailable

13

BRAKE PAD KIT

43F-W0045-01-00

Unavailable

14

. SHIM, CALIPER

11U-25827-10-00

Unavailable

15

PAD SPRING, CALIPER

11H-25919-00-00

Unavailable

16

PISTON ASSY, CALIPER

4X8-W0057-00-00

$139.99

17

BLEED SCREW KIT

15B-W0048-00-00

$19.99

18

BOOT

4X8-25917-00-00

Unavailable

19

BOOT 2

5R2-25937-00-00

$37.99

20

BOLT, WASHER BASED(1AR)

90105-10634-00

Unavailable

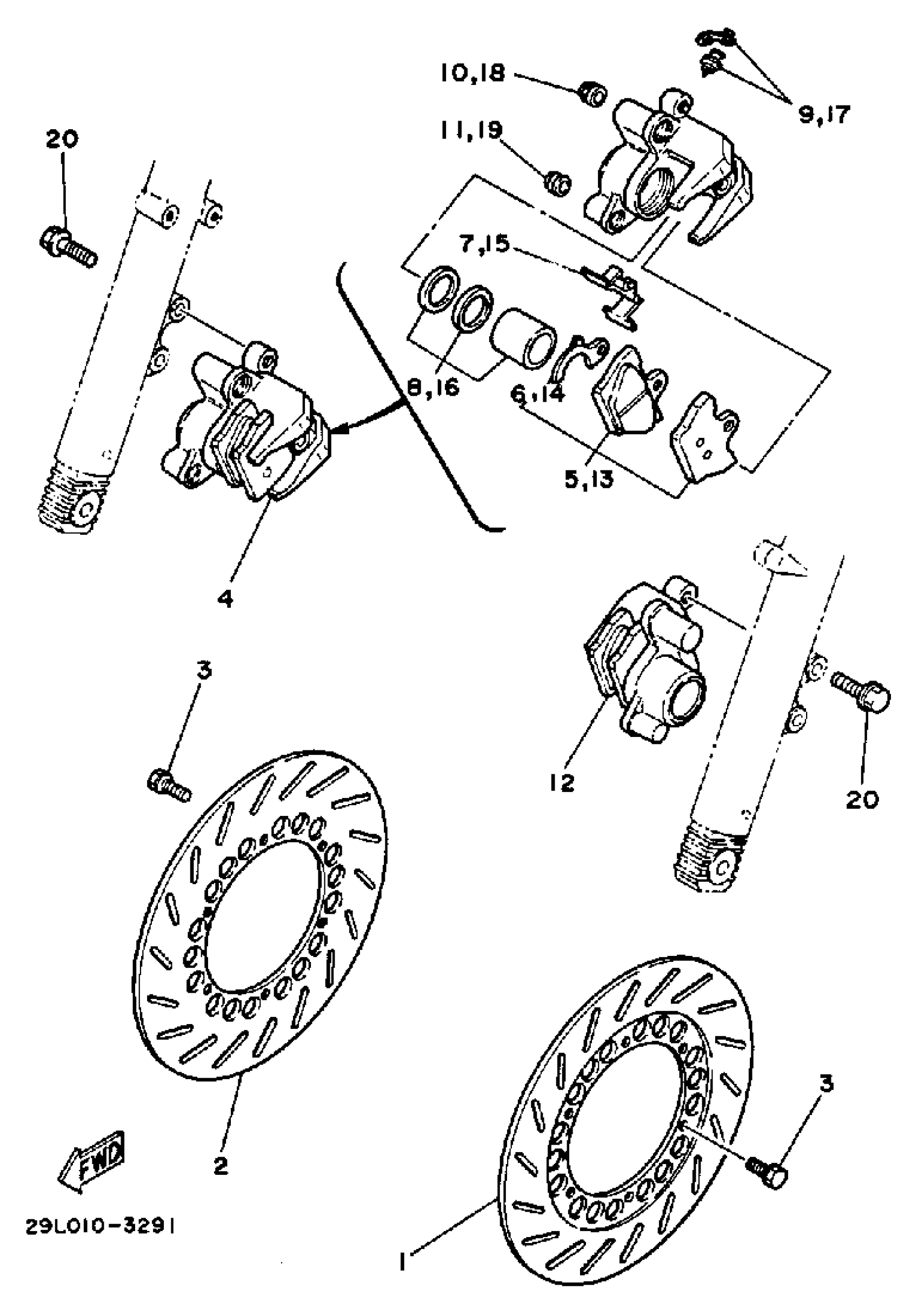

Yamaha RZ350NCII (RZ350II CA) 1985 FRONT BRAKE - CALIPER Diagram

DISC, BRAKE

DISC, BRAKE (RT)

BOLT,HEX. SOCKET BUTTON

UNAVAILABLE IN PRICE BOOK (29L-25810-00)

BRAKE PAD KIT

. SHIM, CALIPER

PAD SPRING, CALIPER

PISTON ASSY, CALIPER

BLEED SCREW KIT

BOOT

BOOT 2

CALIPER ASSEMBLY (LEFT) (11H-25810-10) (LEFT)

BRAKE PAD KIT

. SHIM, CALIPER

PAD SPRING, CALIPER

PISTON ASSY, CALIPER

BLEED SCREW KIT

BOOT

BOOT 2

BOLT, WASHER BASED(1AR)
