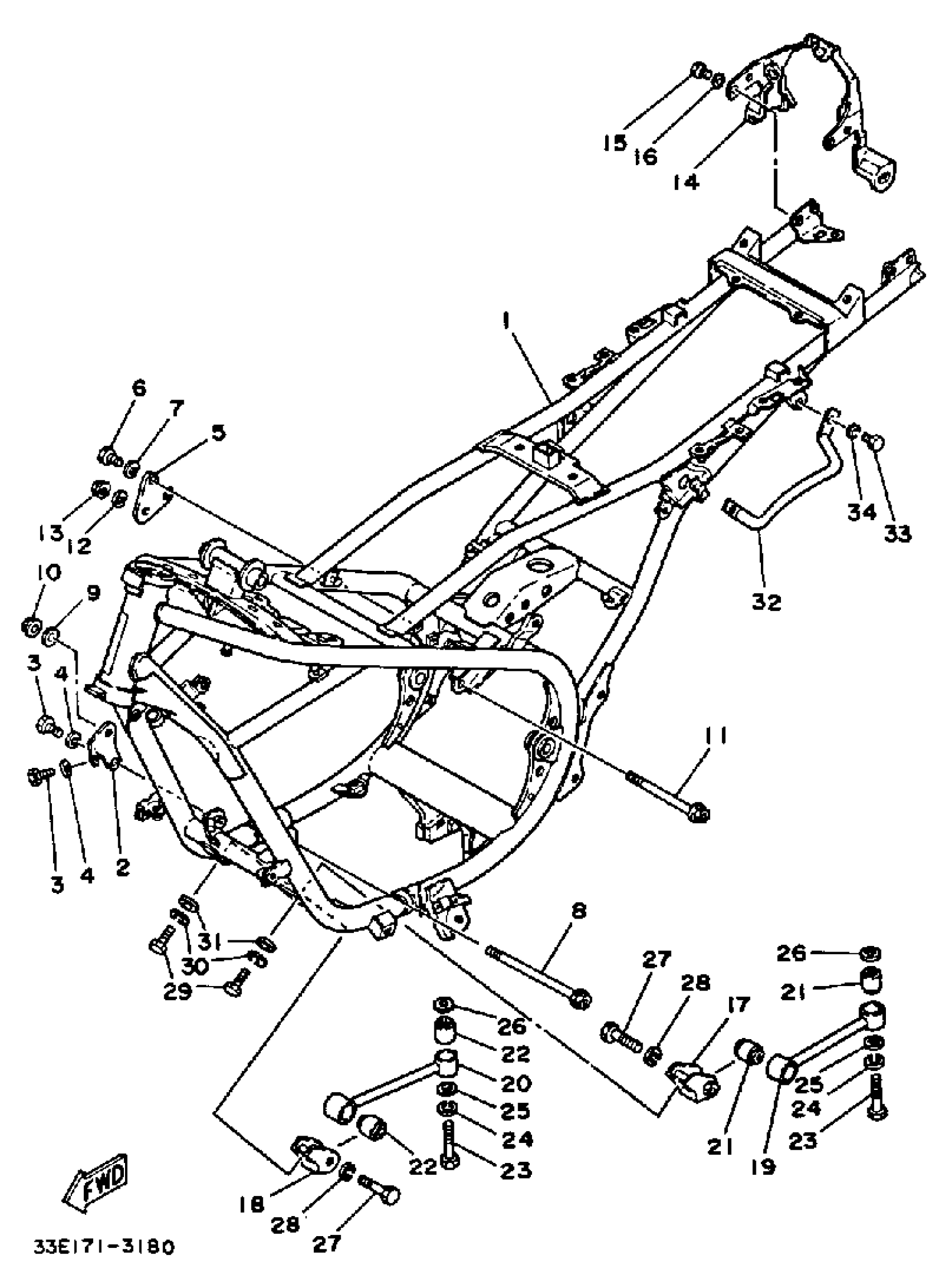

Yamaha RZ350NCII (RZ350II CA) 1985 FRAME RZ350NC Diagram

#

Description
Price

1

FRAME COMP.

(1EL-21110-00-33)

Unavailable

1

FRAME COMP.

1EL-21110-00-FH

Unavailable

2

STAY, ENGINE 2

29L-21315-01-00

Unavailable

3

BOLT, HEXAGON

97013-08020-00

$1.16

4

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

5

STAY, ENGINE 3

29L-21316-00-00

Unavailable

6

BOLT, HEXAGON

97013-08020-00

$1.16

7

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

8

BOLT, FLANGE

90105-10114-00

$12.49

9

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

10

NUT, FLANGE(3BM)

95704-10500-00

$4.29

11

BOLT

90105-10040-00

$5.60

12

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

13

NUT, FLANGE(3BM)

95704-10500-00

$4.29

14

REAR FNDR BRKT COM

29L-21260-00-00

Unavailable

15

BOLT (661)

97013-06012-00

Unavailable

16

WASHER, SPRING

92995-06100-00

Unavailable

17

STAY, ENGINE 4

4L0-21317-00-00

Unavailable

18

STAY, ENGINE 5

4L0-21318-00-00

Unavailable

19

STAY, ENGINE 1

1UA-21314-00-00

Unavailable

20

STAY, ENGINE 6

1UA-21319-00-00

Unavailable

21

DAMPER, RUBBER 1

4L0-21485-00-00

Unavailable

22

DAMPER, RUBBER 1

4L0-21485-00-00

Unavailable

23

BOLT, HEXAGON

97013-10055-00

Unavailable

24

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

25

WASHER, PLATE

92990-10600-00

Unavailable

26

WASHER, PLATE (3L6)

90201-10774-00

Unavailable

27

BOLT

97013-10040-00

Unavailable

28

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

29

BOLT, HEXAGON

97017-08025-00

Unavailable

30

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

31

.. WASHER, PLATE

92990-08600-00

Unavailable

32

HANDLE, STANDING

29L-21165-00-00

Unavailable

33

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

34

WASHER, SPRING

92995-06100-00

Unavailable
