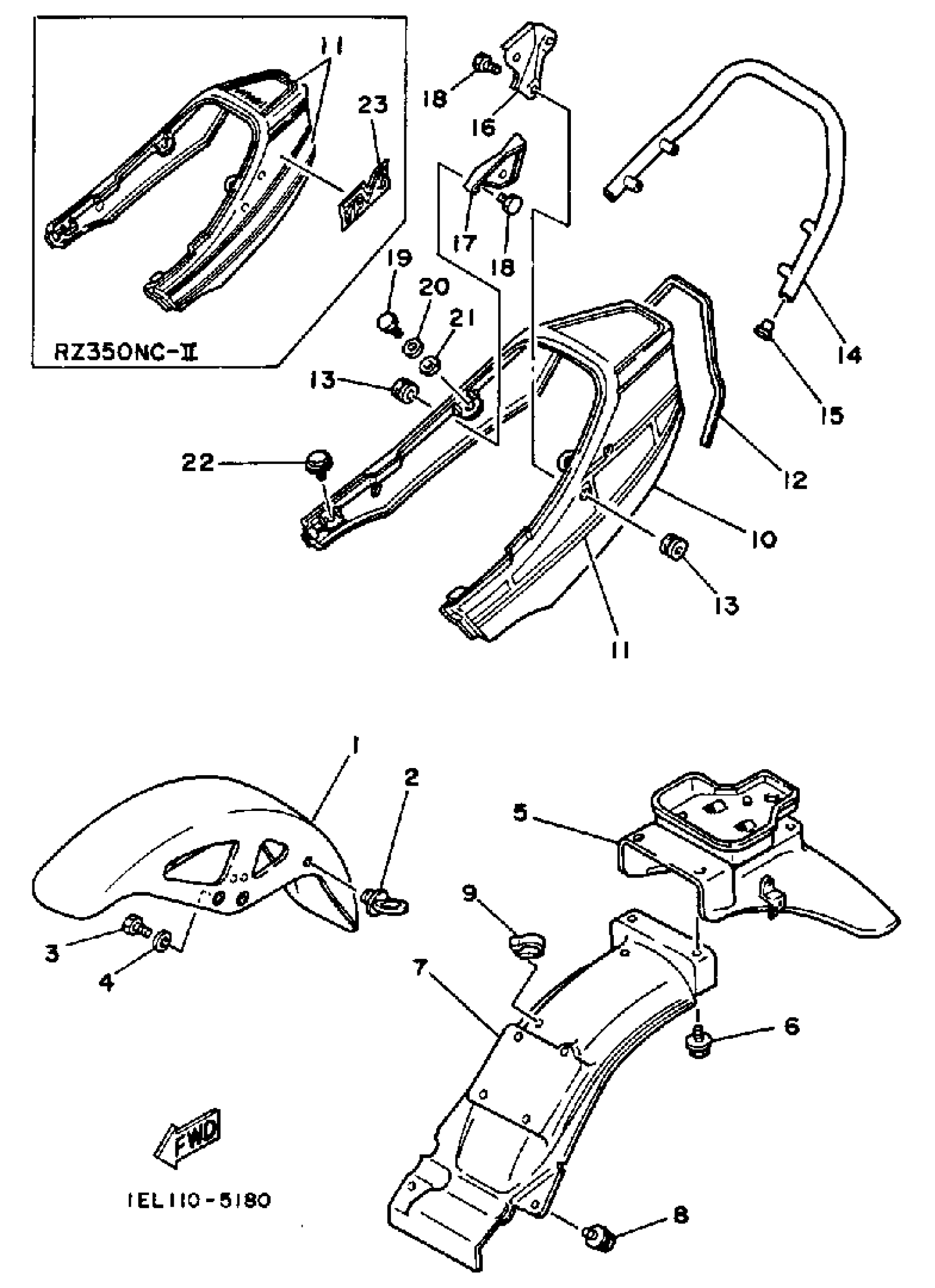

Yamaha RZ350NCII (RZ350II CA) 1985 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

29L-21510-00-5X

Unavailable

1

FENDER, FRONT

29L-21510-00-E1

Unavailable

2

GUIDE, WIRE

1A8-21518-00-00

$7.99

3

BOLT, HEXAGON

97017-06020-00

$4.06

4

WASHER, SPRING

92995-06100-00

Unavailable

5

REAR FENDER (33E-W21616-00)

29L-W2161-01-00

Unavailable

6

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

7

GUARD, MUD

29L-21629-01-00

Unavailable

8

BOLT, WITH WASHER

(90119-06095-00)

Unavailable

9

CLAMP (2H7)

90464-12027-00

Unavailable

10

COVER, REAR FENDER

29L-21651-00-26

Unavailable

10

COVER, REAR FENDER

29L-21651-00-36

Unavailable

11

GRAPHIC (COMPETITION YELLOW)

29L-21660-30-00

Unavailable

11

GRAPHIC

29L-21660-40-00

Unavailable

11

UNAVAILABLE IN PRICE BOOK

482-16600-00-0

Unavailable

12

MOLE 4

36Y-28348-00-00

Unavailable

13

GROMMET(55K)

90480-18431-00

Unavailable

14

STAY, REAR

29L-21645-00-00

Unavailable

15

PLUG

90338-15110-00

Unavailable

16

BRACKET, REAR STAY

29L-21688-00-00

Unavailable

17

BRACKET REAR STAY2

29L-21689-00-00

Unavailable

18

BOLT, HEXAGON

97017-08016-00

Unavailable

19

BOLT, HEXAGON

97017-08025-00

Unavailable

20

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

21

COLLAR (1K5)

90387-10567-00

Unavailable

22

BOLT, WITH WASHER(55K)

90119-06117-00

Unavailable

23

EMBLEM 2

48H-2163H-00-00

Unavailable
