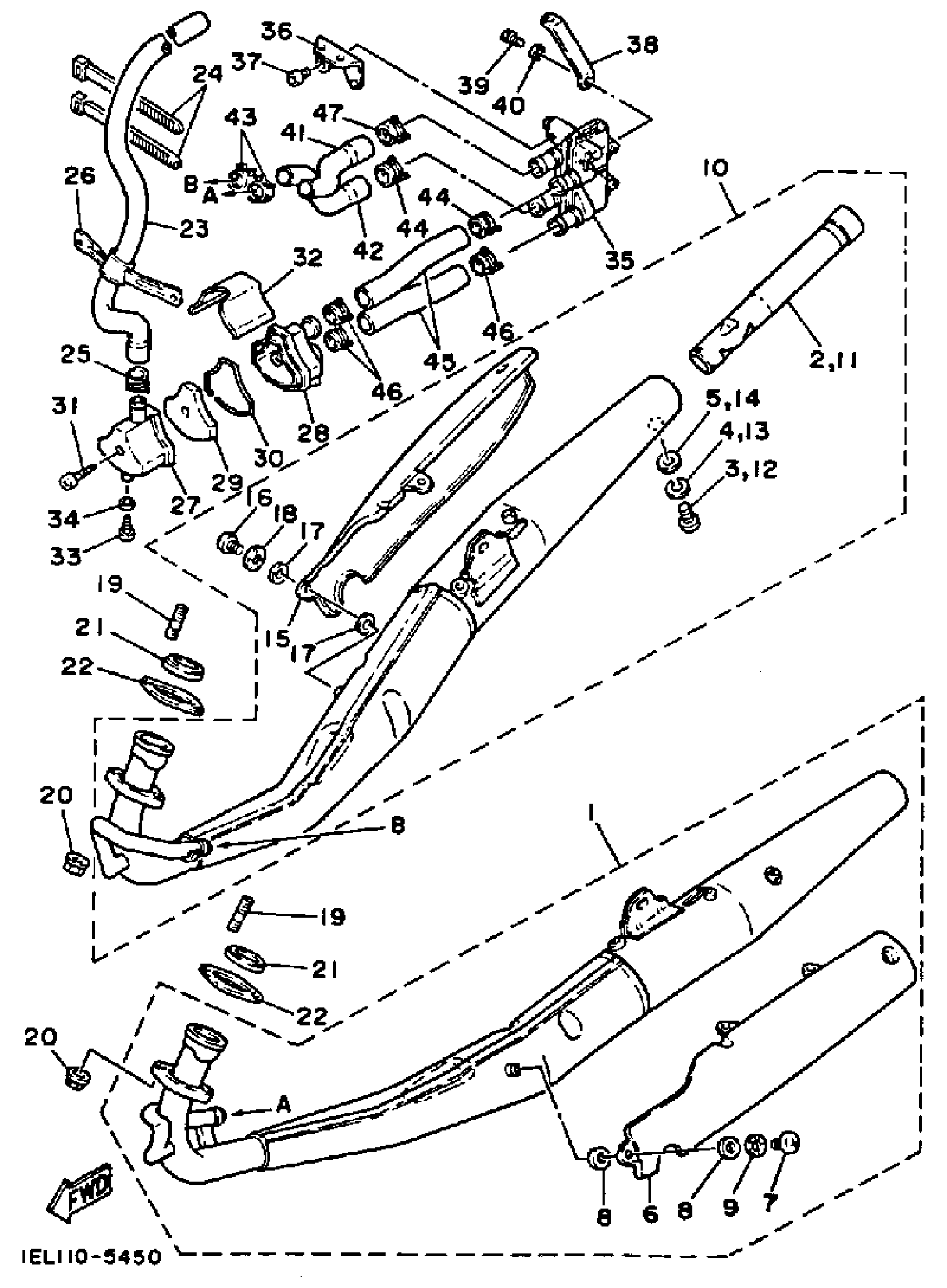

Yamaha RZ350NCII (RZ350II CA) 1985 EXHAUST RZ350NC Diagram

#

Description
Price

1

MUFFLER ASSEMBLY 1

1EL-14710-00-00

Unavailable

2

SILENCER,EXHAUST

48H-14753-01-00

Unavailable

3

SCREW PAN HEAD

98580-06010-00

$8.49

4

WASHER, SPRING

92995-06100-00

Unavailable

5

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

6

. PROTECTOR, MUFFLR1

48H-W1473-00-00

Unavailable

7

SCREW, BINDING

98907-06008-00

$8.49

8

WASHER, PLATE(3MB)

90202-05187-00

$1.38

9

WASHER, WAVE(3RW)

90206-06090-00

$8.49

10

MUFFLER ASSEMBLY.2

1EL-14720-00-00

Unavailable

11

SILENCER,EXHAUST

48H-14753-01-00

Unavailable

12

SCREW PAN HEAD

98580-06010-00

$8.49

13

WASHER, SPRING

92995-06100-00

Unavailable

14

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

15

. PROTECTOR, MUFFLR2

48H-W1474-00-00

Unavailable

16

SCREW, BINDING

98907-06008-00

$8.49

17

WASHER, PLATE(3MB)

90202-05187-00

$1.38

18

WASHER, WAVE(3RW)

90206-06090-00

$8.49

19

BOLT, STUD (4L0)

90116-08365-00

Unavailable

20

NUT, SELF-LOCKING(3BN)

90185-08146-00

Unavailable

21

GASKET, EXHAUST PIPE

29L-14613-00-00

Unavailable

22

GASKET 3

29L-14643-10-00

Unavailable

23

HOSE, BEND 5

48H-14885-00-00

Unavailable

24

BAND, SWITCH CORD

437-83936-11-00

Unavailable

25

CLIP(4HC)

90467-23177-00

Unavailable

26

STAY

(48H-14834-00-00)

Unavailable

27

CASE, AIR CLNR

48H-14857-00-00

Unavailable

28

CAP, CASE

48H-14858-00-00

Unavailable

29

FILTER

48H-14827-00-00

Unavailable

30

SEAL, CAP

48H-14859-00-00

Unavailable

31

YBS83-540 SCREW,PANH.TAPPING

97780-50140-00

Unavailable

32

PLATE 1

(1EL-1477K-00-00)

Unavailable

33

YBS83-525 SCREW,PANH.TAPPING

97780-50125-00

Unavailable

34

. WASHER, PLAIN

92990-05200-00

Unavailable

35

REED VALVE ASSEMBLY.

(48H-14808-00-00)

Unavailable

36

BRACKET

48H-14867-00-00

Unavailable

37

BOLT,SOCKET

91317-06014-00

Unavailable

38

BRACKET 2

(48H-14868-00-00)

Unavailable

39

BOLT, HEXAGON

97017-06030-00

Unavailable

40

WASHER, PLAIN (646)

92990-06600-00

Unavailable

41

HOSE, BEND 1

(48H-14881-00-00)

Unavailable

42

HOSE, BEND 2

(48H-14882-00-00)

Unavailable

43

CLIP (23E)

90467-20085-00

Unavailable

44

CLIP(4HC)

90467-23177-00

Unavailable

45

HOSE, BEND 3

(1EL-14883-00-00)

Unavailable

46

CLIP(4HC)

90467-23177-00

Unavailable

47

CLAMP, HOSE

90460-28243-00

Unavailable
