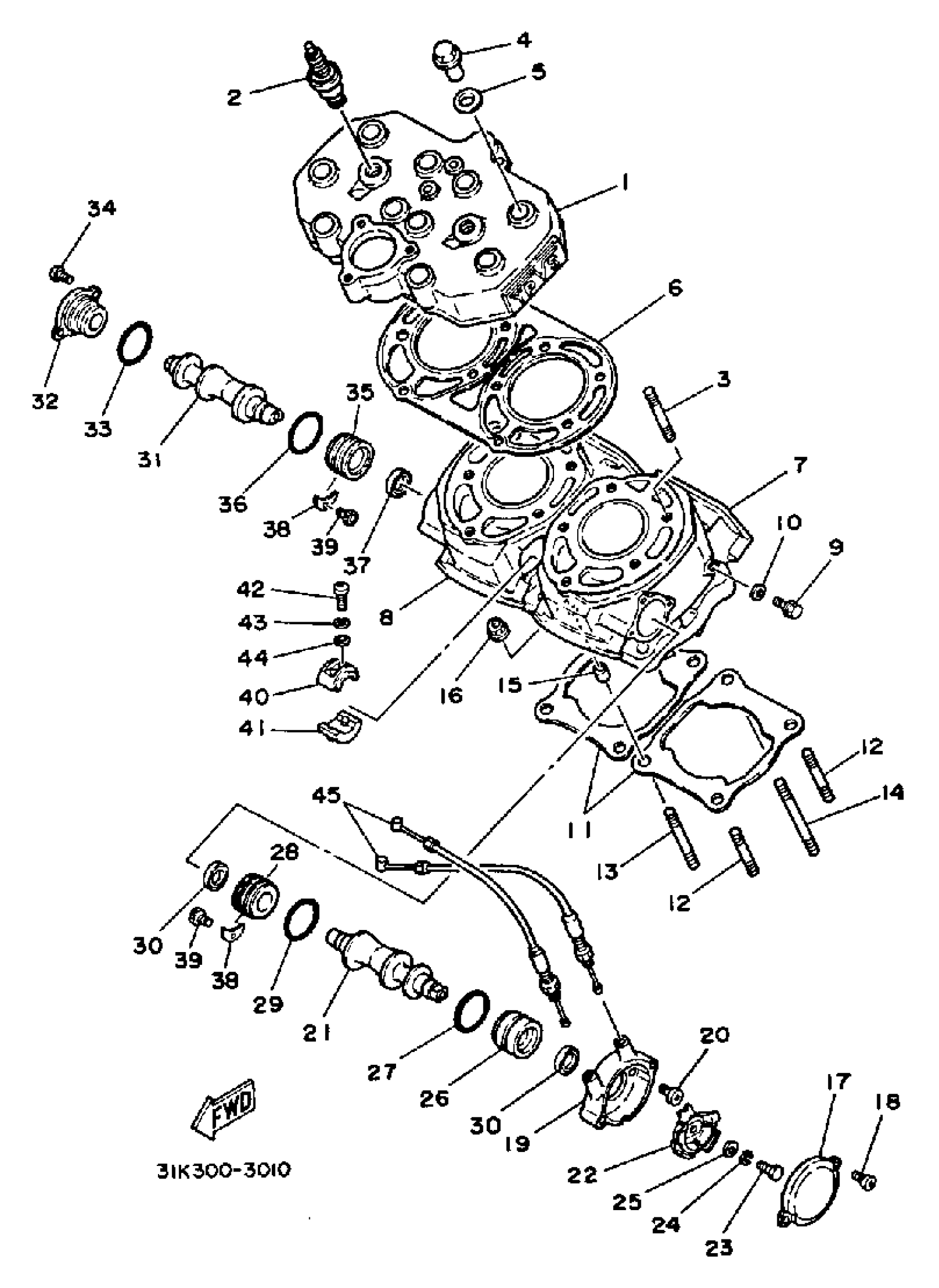

Yamaha RZ350NCII (RZ350II CA) 1985 CYLINDER Diagram
#
1
HEAD, CYLINDER 1
31K-11111-00-00
Unavailable
2
BR8ES NGK SCREW TOP 4PK
BR8-ES000-00-00
Unavailable
4
NUT (5R2)
90179-08343-00
Unavailable
7
CYLINDER 1
48H-11311-00-00
Unavailable
8
CYLINDER 2
48H-11321-00-00
Unavailable
16
NUT(55X)
90179-08491-00
Unavailable
17
CAP, SEAL
2RH-1131R-10-00
Unavailable
18
SCREW, PAN
98517-05012-00
Unavailable
19
COVER
29L-1131M-00-00
Unavailable
20
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
21
VALVE 1
31K-1131A-00-00
Unavailable
22
PULLEY 1
29L-1132E-00-00
Unavailable
23
UNAVAILABLE IN PRICE BOOK (97316-06020)
97116-06020-00
Unavailable
24
WASHER, SPRING
92907-06100-00
Unavailable
25
WASHER(6TA)
92907-06600-00
Unavailable
26
HOLDER 3
31K-1131U-00-00
Unavailable
27
O-RING(1WT)
93210-30734-00
Unavailable
28
HOLDER 2
31K-1131F-00-00
Unavailable
29
O-RING(1WT)
93210-30734-00
Unavailable
30
OIL SEAL (29L)
93108-23010-00
Unavailable
31
VALVE 2
31K-1132A-00-00
Unavailable
32
HOLDER 1
1UA-1131E-00-00
Unavailable
33
O-RING(1WT)
93210-30734-00
Unavailable
34
SCREW, PAN
98517-05012-00
Unavailable
35
HOLDER 2
31K-1131F-00-00
Unavailable
36
O-RING(1WT)
93210-30734-00
Unavailable
37
OIL SEAL (29L)
93108-23010-00
Unavailable
38
PLATE, THRUST 1
31K-11915-00-00
Unavailable
39
BOLT, SOCKET
91317-05010-00
Unavailable
40
JOINT 1
29L-1131H-00-00
Unavailable
41
JOINT 2
29L-1131J-00-00
Unavailable
42
SCREW, PAN HEAD
98517-04025-00
Unavailable
43
WASHER, PLAIN (646)
92990-04600-00
Unavailable
44
WASHER, PLAIN (646)
92990-04600-00
Unavailable
45
WIRE, PULLEY 1
29L-1133E-00-00
Unavailable
