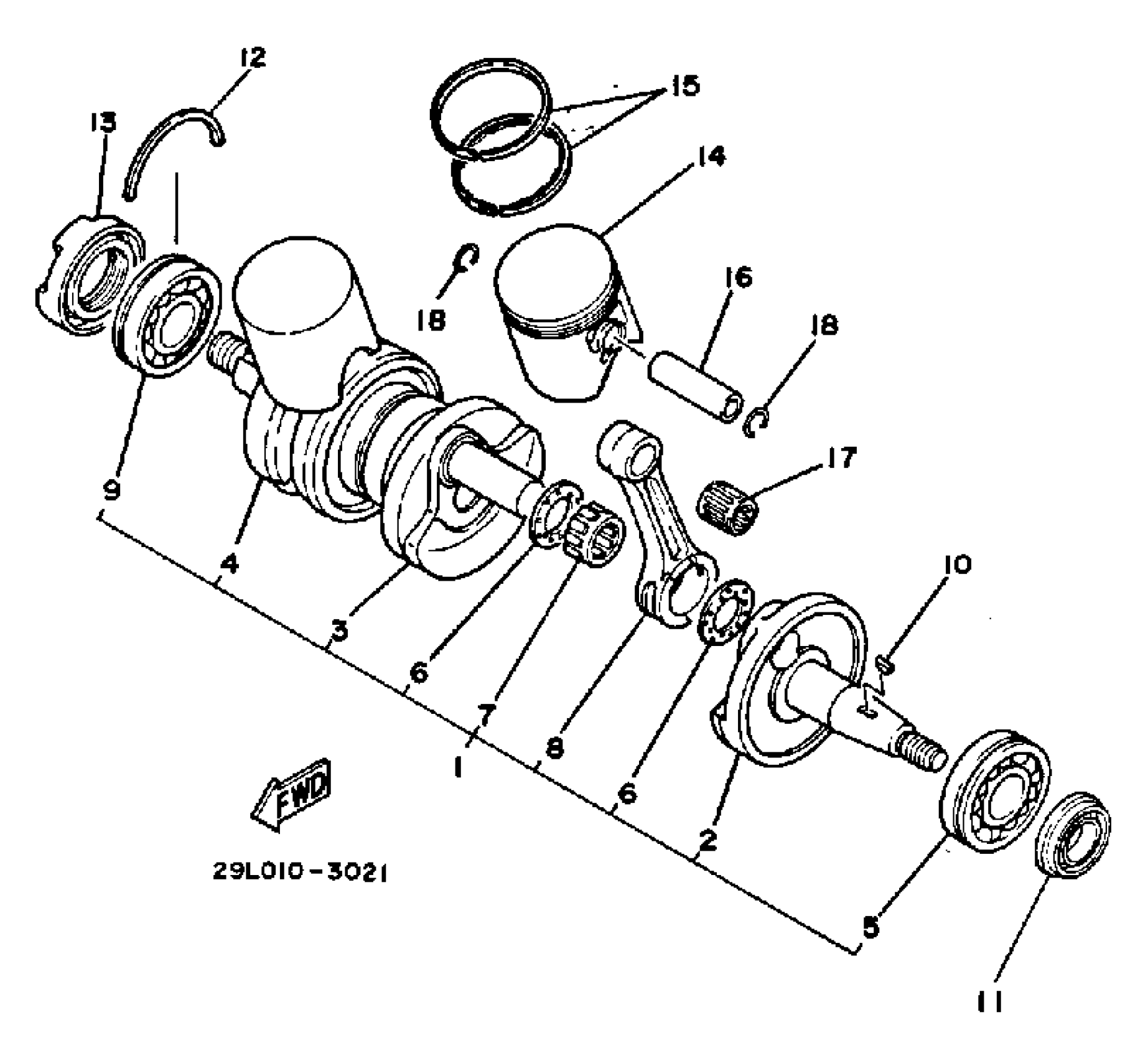

Yamaha RZ350NCII (RZ350II CA) 1985 CRANKSHAFT - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY (29L-11400-20)

29L-11400-21-00

Unavailable

2

CRANK 1

29L-11412-00-00

Unavailable

3

CRANK SUB ASSY 1

29L-11401-09-00

Unavailable

4

CRANK 4

29L-11442-10-00

Unavailable

5

BEARING

93306-30571-00

$72.99

6

WASHER (29L)

90209-22248-00

Unavailable

7

BEARING, CYLINDRICAL(3XP)

93310-523D2-00

Unavailable

8

ROD, CONNECTING

29L-11651-00-00

Unavailable

9

BEARING(1UA)

93306-30549-00

$65.99

10

KEY, WOODRUFF (8R9)

90280-05033-00

$10.49

11

OIL SEAL (2R8)

93103-25108-00

$20.99

12

CIRCLIP

278-17424-01-00

$21.99

13

OIL SEAL (40X62X10-360)

93103-40077-00

$18.99

14

PISTON STD

31K-11631-00-94

Unavailable

14

PISTON 1 O/S 0.25

31K-11635-00-00

Unavailable

14

PISTON 2 O/S 0.50

31K-11636-00-00

Unavailable

15

PISTON RING SET (STD)

1UA-11610-00-00

Unavailable

15

PISTON RING SET

1UA-11610-10-00

Unavailable

15

PISTON RING SET (2ND O/S)

1UA-11610-20-00

Unavailable

16

PIN, PISTON

4L0-11633-00-00

Unavailable

17

BEARING, CYLINDRICAL(8AX)

93310-316D6-00

Unavailable

18

CIRCLIP(1AR)

93450-17129-00

Unavailable
