Description

Price

1

CRCS COVER ASSEMBLY L

29L-15410-00-00

Unavailable

2

SCREW, PAN

98507-06055-00

$8.49

3

SCREW, PAN

98517-06020-00

$8.49

4

PLATE, DUST SEAL

1A0-15497-00-00

Unavailable

5

PROTECTOR

1A0-15491-00-00

Unavailable

6

SCREW, TAPPING(3JP)

97707-50612-00

$7.49

7

COVER, CRANKCASE 2

2GU-15421-00-00

$148.99

8

PIN, DOWEL

99530-12016-00

$4.89

9

GASKET, CRANKCASE COVER 2

3GG-15461-02-00

$33.99

10

SCREW, PAN

98507-06040-00

$3.22

11

SCREW, PAN

98517-06030-00

Unavailable

12

PLUG, OIL LEVEL

4L0-15362-00-00

$21.99

13

O-RING (646)

93210-19123-00

Unavailable

14

CRCS COVER ASSEMBLY R

48H-15420-00-00

Unavailable

15

SCREW, PAN

98517-06020-00

$8.49

16

CLAMP

90462-08071-00

Unavailable

17

CLAMP

90462-08070-00

Unavailable

18

COVER, CRANKCASE 3

29L-15431-00-00

Unavailable

19

SPACER

31K-15317-00-00

Unavailable

20

SPACER, ENGINE MOUNT

48H-15327-00-00

Unavailable

21

SCREW, PAN HEAD

90157-05M19-00

Unavailable

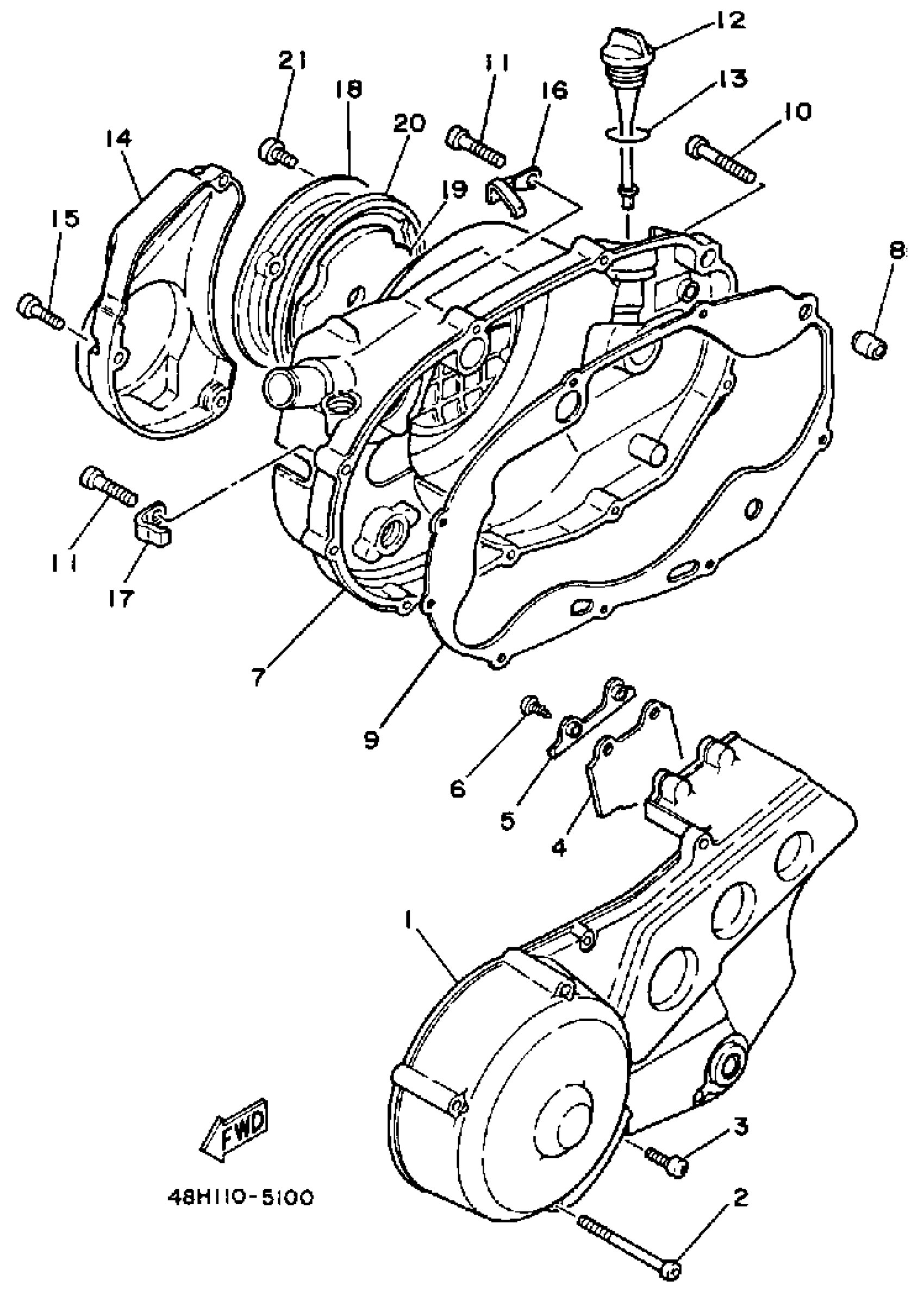

Yamaha RZ350NCII (RZ350II CA) 1985 CRANKCASE COVER 1 Diagram

CRCS COVER ASSEMBLY L

SCREW, PAN

SCREW, PAN

PLATE, DUST SEAL

PROTECTOR

SCREW, TAPPING(3JP)

COVER, CRANKCASE 2

PIN, DOWEL

GASKET, CRANKCASE COVER 2

SCREW, PAN

SCREW, PAN

PLUG, OIL LEVEL

O-RING (646)

CRCS COVER ASSEMBLY R

SCREW, PAN

CLAMP

CLAMP

COVER, CRANKCASE 3

SPACER

SPACER, ENGINE MOUNT

SCREW, PAN HEAD
