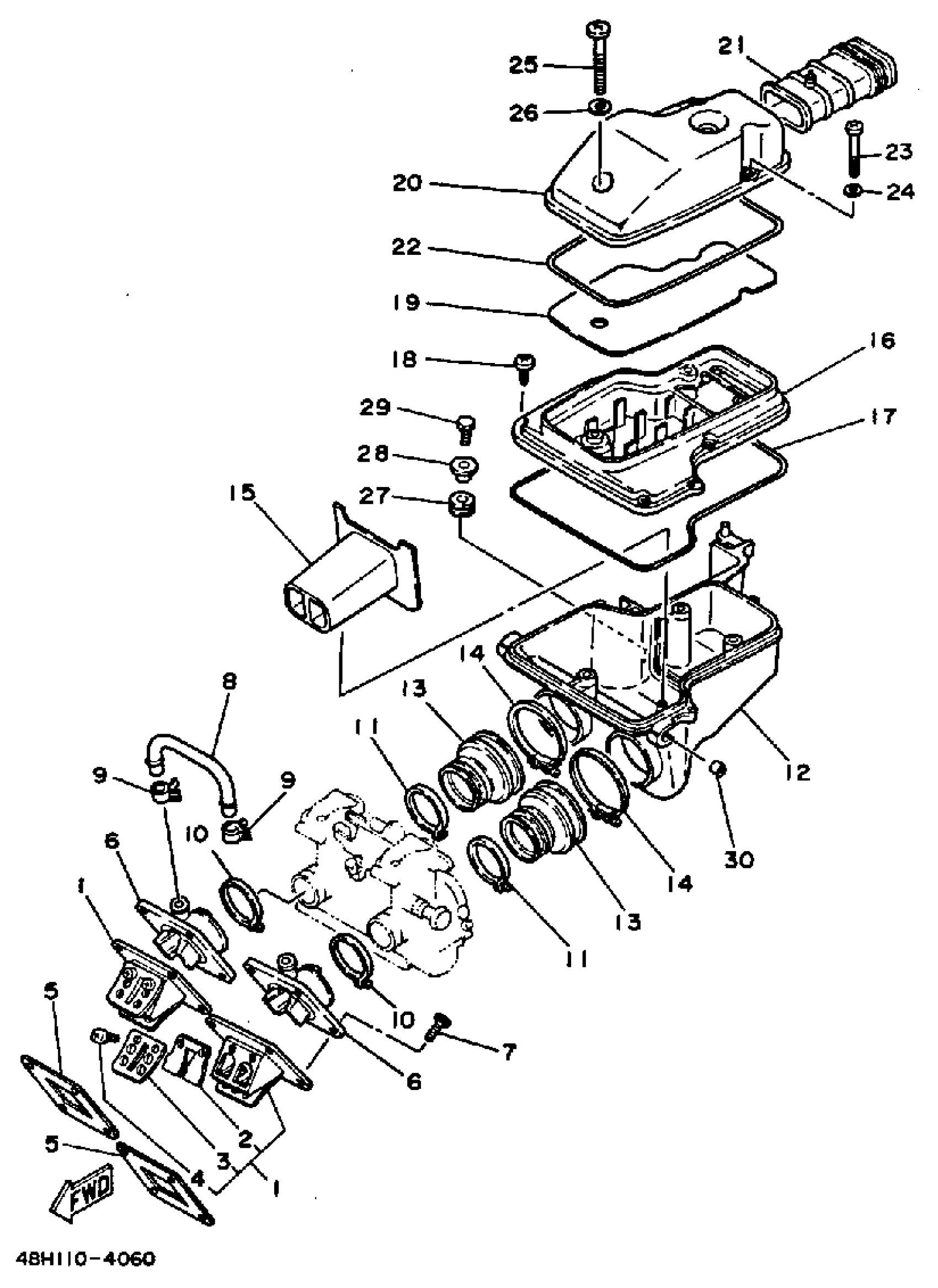

Yamaha RZ350NCII (RZ350II CA) 1985 AIR FILTER Diagram

#

Description
Price

1

REED VALVE ASSY

55K-13610-01-00

Unavailable

2

REED VALVE 1

10V-13613-01-00

$29.99

3

. STOPPER, REED VALVE (10V-12616-01-00)

1UA-13616-00-00

Unavailable

4

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

5

GASKET, VALVE SEAT

3GG-13621-00-00

$8.99

6

JOINT, CARBURETOR

31K-13565-01-00

$66.99

7

BOLT,SOCKET

91317-06025-00

$5.60

8

PIPE

48H-14465-00-00

Unavailable

9

CLIP (23E)

90467-20085-00

$9.49

10

HOSE CLAMP ASSY(1MX)

90450-44046-00

$16.99

11

CLAMP HOSE 278144550000

90460-49058-00

$7.49

12

CASE, AIR CLEANER 1 (29L-14411-00)

51L-14411-00-00

Unavailable

13

JOINT, AIR CLEANER 1

29L-14453-01-00

$22.99

14

CLAMP, HOSE (29L)

90460-68230-00

$16.99

15

PARTN, AIR CLNR CS

29L-1441F-00-00

Unavailable

16

CASE, AIR CLEANER 2

29L-14421-00-00

Unavailable

17

SEAL

1VJ-14462-00-00

Unavailable

18

YBS83-525 SCREW,PANH.TAPPING

97780-50125-00

Unavailable

19

ELEMENT, AIR CLEANER

29L-14451-00-00

Unavailable

20

CAP, CLEANER CASE 1

29L-14412-00-00

Unavailable

21

DUCT

29L-14437-00-00

Unavailable

22

SEAL

1VJ-14462-00-00

Unavailable

23

SCREW, PANHED (GC2)

98580-06555-00

Unavailable

24

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

25

SCREW PAN HEAD

98580-06575-00

Unavailable

26

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

27

GROMMET (2N3)

90480-16233-00

Unavailable

28

COLLAR 8111266500

90387-07037-00

Unavailable

29

BOLT, HEXAGON

97017-06020-00

Unavailable

30

HOSE

90445-12718-00

Unavailable
