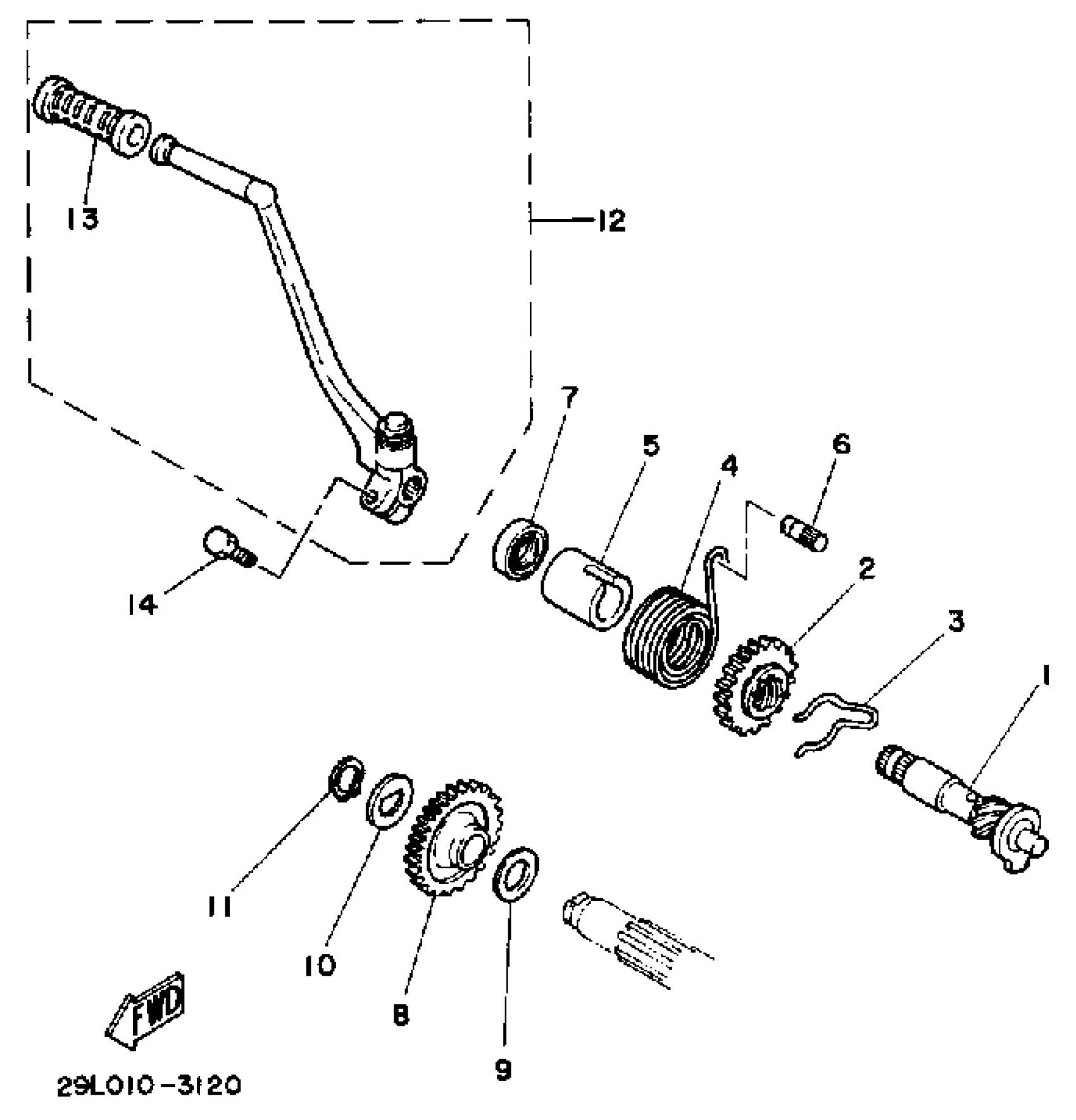

Yamaha RZ350L (RZ350) 1984 STARTER Diagram

#

Description
Price

1

KICK AXLE ASSY

4L0-15660-01-00

Unavailable

2

GEAR, KICK

4L0-15641-00-00

Unavailable

3

CLIP (2R8)

90468-26091-00

$5.75

4

SPRING TORSION 278156650000

90508-30051-00

$12.96

5

SPACER

4L0-15666-00-00

$16.27

6

STOPPER, KICK SPRING

248-15668-00-00

$6.29

7

OIL SEAL (20X30X6-648)

93101-20048-00

$6.82

8

GEAR, KICK IDLE

4L0-15651-00-00

$79.28

9

SHIM, MAIN AXLE (1.0)

164-17417-00-10

$6.22

10

WASHER (4L0)

90214-15020-00

$6.34

11

CIRCLIP(1AR)

99009-15400-00

$4.89

12

KICK CRANK ASSEMBLY (51L-15620-00)

51L-15620-01-00

Unavailable

13

COVER, KICK LEVER

156-15618-01-00

$5.99

14

BOLT, HEXAGON

97017-08030-00

$6.39
