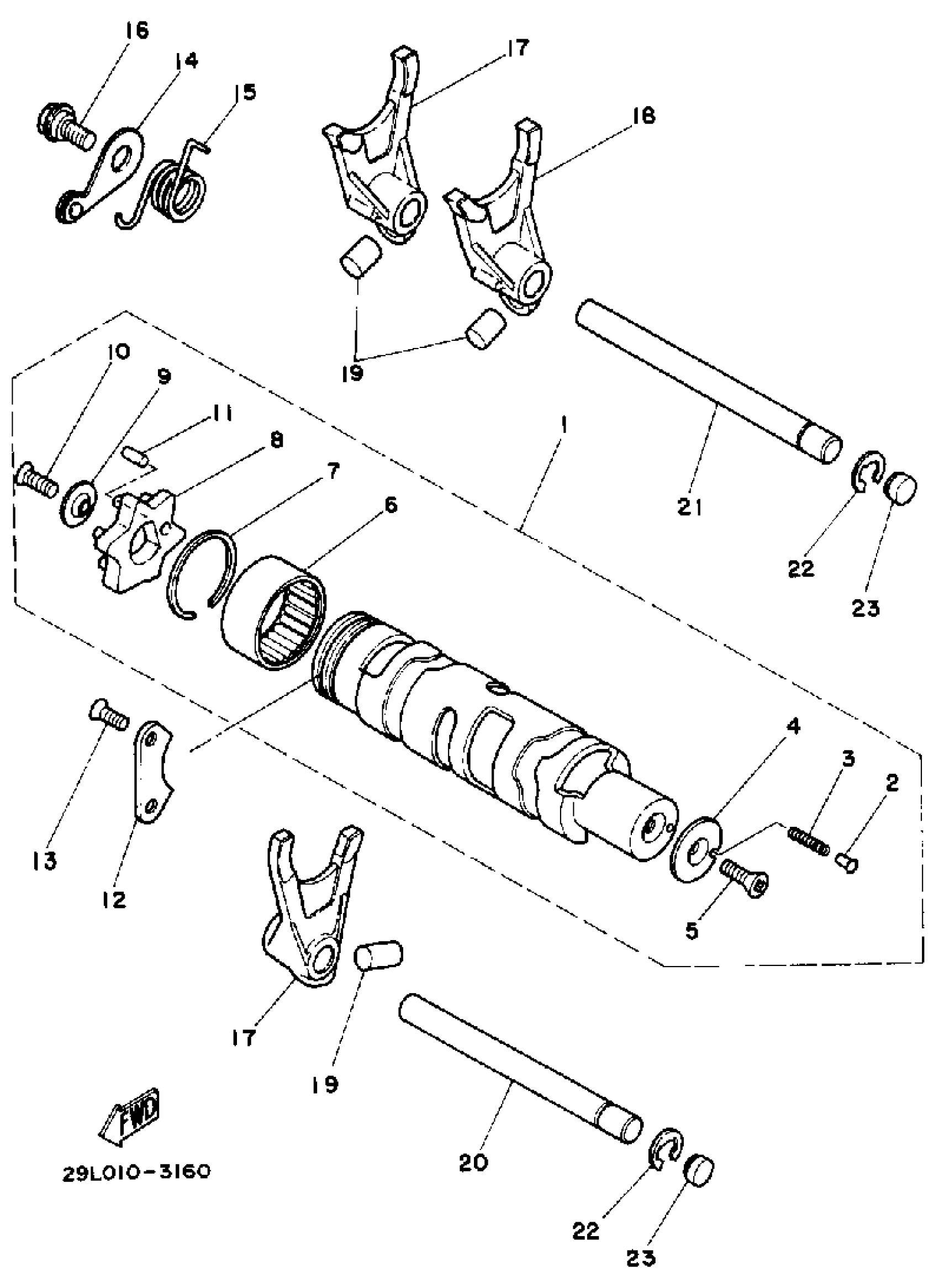

Yamaha RZ350L (RZ350) 1984 SHIFT CAM FORK Diagram

#

Description
Price

1

SHIFT CAM ASSEMBLY

(29L-18540-00-00)

Unavailable

2

POINT, NEUTRAL

4UN-18542-00-00

$8.99

3

SPRING COMPRESSION278185450000

90501-06022-00

$8.49

4

PLATE, SIDE 2

278-18566-00-00

Unavailable

5

SCREW, FLAT

98707-05012-00

$1.71

6

BRG,CYL-CAL ROLLER 22G NT

93315-23612-00

$33.99

7

CIRCLIP (371)

93440-34025-00

$7.49

8

. SEGMENT

4L0-18185-00-00

Unavailable

9

PLATE, SIDE 1

3R4-18561-00-00

$7.99

10

SCREW, FLAT

98707-05016-00

$7.99

11

PIN,DOWEL (168)

93604-12037-00

$8.49

12

PLATE, STOPPER 2

4L0-18562-00-00

$24.99

13

SCREW, FLAT

98707-06014-00

$8.49

14

STOPPER LEVER ASSY

4L0-18140-00-00

$24.99

15

SPRING,TORSION

90508-26714-00

Unavailable

16

BOLT

90109-06190-00

Unavailable

17

FORK, SHIFT 1

2GU-18511-00-00

Unavailable

18

FORK, SHIFT 2

2GU-18512-00-00

Unavailable

19

PIN, STRAIGHT

90250-08017-00

Unavailable

20

BAR, SHIFT FORK GUIDE 1

4L0-18531-01-00

Unavailable

21

BAR, SHIFT FORK GUIDE 2

29L-18535-00-00

Unavailable

22

CIRCLIP (137)

93430-08007-00

Unavailable

23

PLUG, BLIND

90334-10006-00

Unavailable
