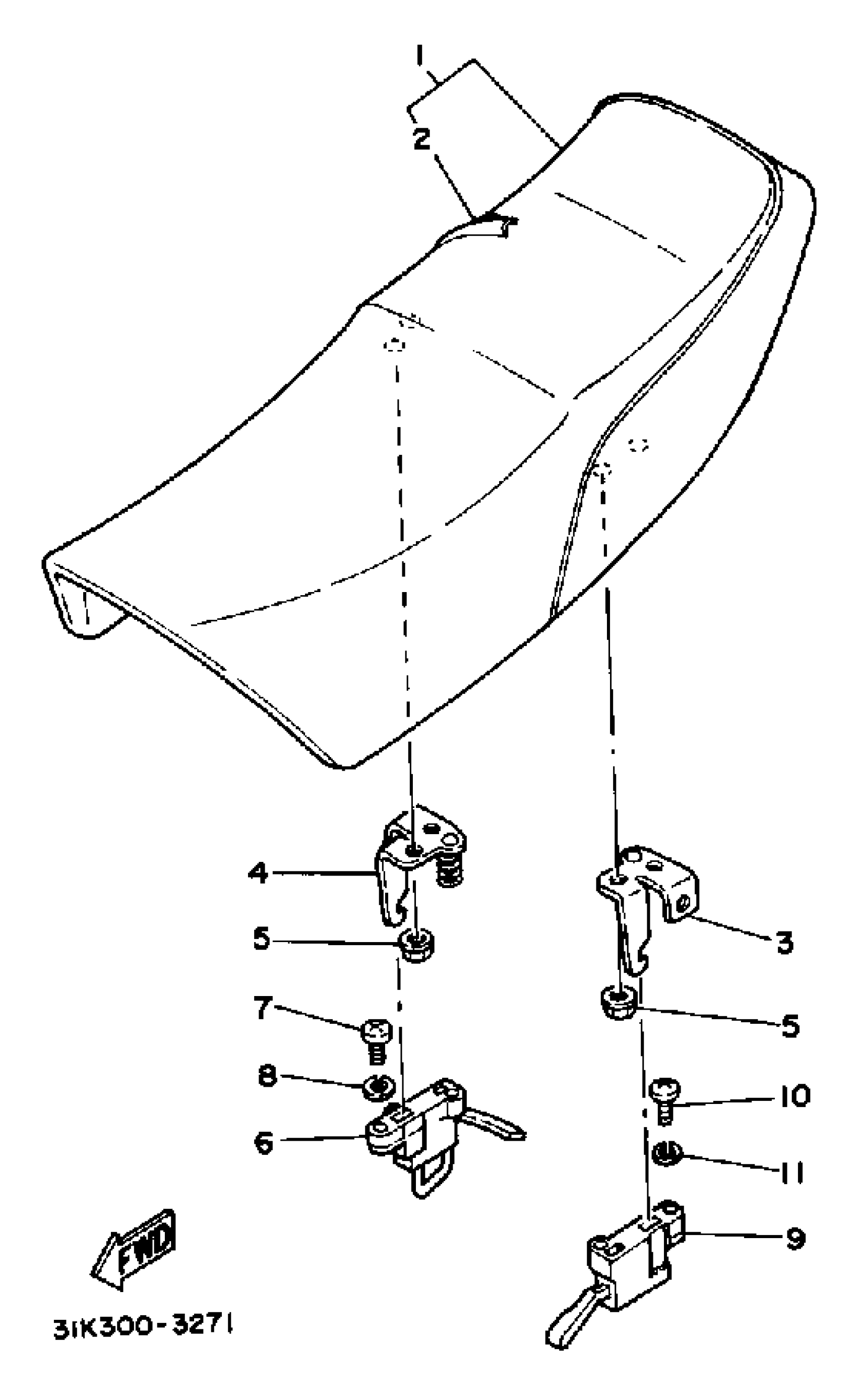

Yamaha RZ350L (RZ350) 1984 SEAT Diagram

#

Description

Price

1

DOUBLE SEAT ASY

1AR-24730-10-00

Unavailable

2

. COVER, DOUBLE SEAT

31K-24731-00-00

Unavailable

3

BRACKET, SEAT

29L-24728-00-00

Unavailable

4

BRACKET, SEAT

29L-24738-00-00

Unavailable

5

NUT, FLANGE(7NB)

95780-06500-00

$1.88

6

SEAT LOCK ASSEMBLY

29L-24705-00-00

Unavailable

7

SCREW, PAN

98507-06014-00

$5.76

8

WASHER, SPRING

92995-06100-00

$2.95

9

SEAT LEVER ASSEMBLY

31A-24760-00-00

Unavailable

10

SCREW, PAN

98507-06014-00

$5.76

11

WASHER, SPRING

92995-06100-00

$2.95
