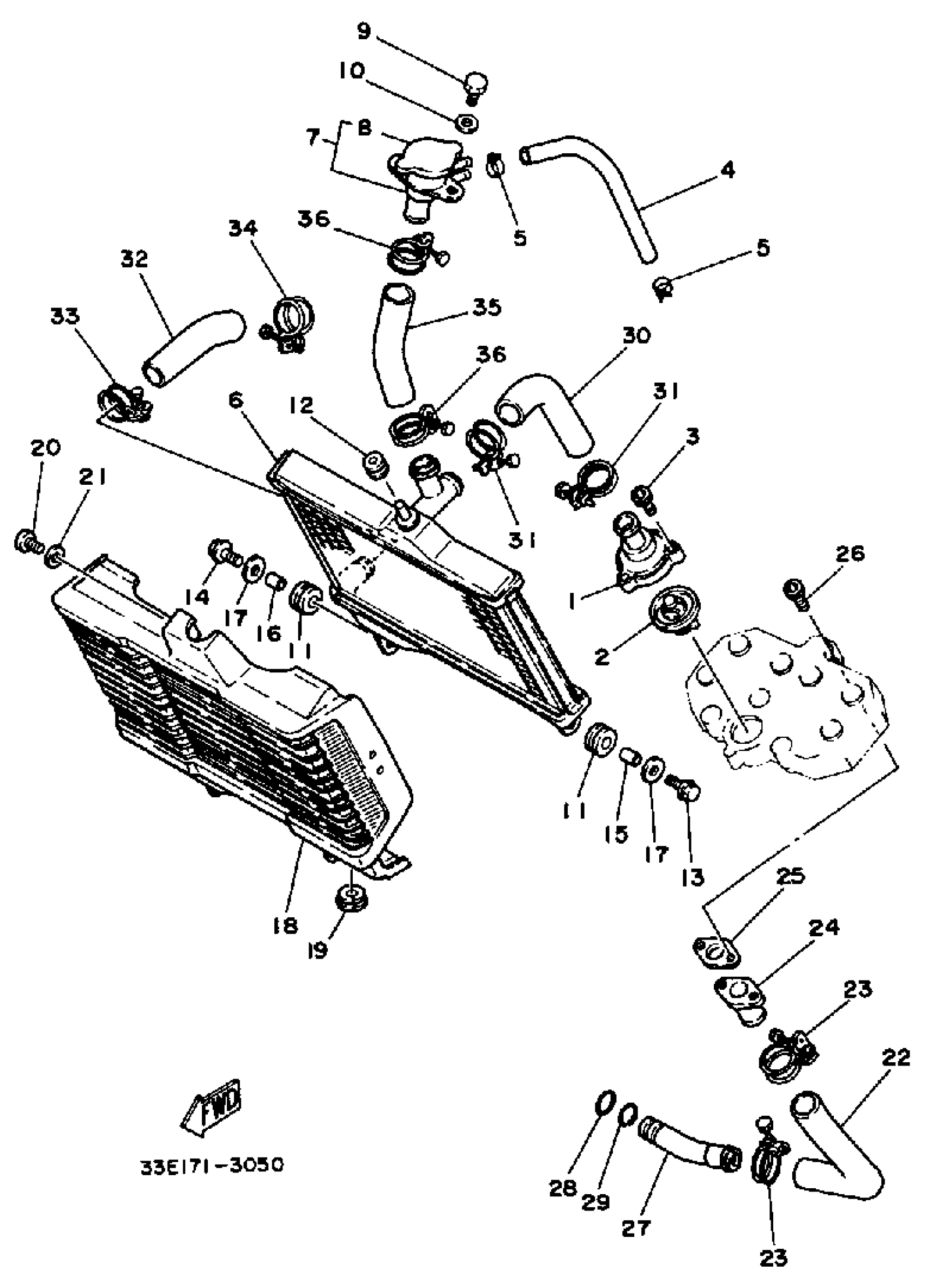

Yamaha RZ350L (RZ350) 1984 RADIATOR HOSE Diagram

#

Description
Price

1

JOINT

29L-12446-01-00

Unavailable

2

THERMOSTAT

29L-12411-01-00

$41.99

3

BOLT,SOCKET

91317-06020-00

Unavailable

4

PIPE 5

29L-12485-00-00

Unavailable

5

CLIP(3YX)

90467-13133-00

$8.49

6

RADIATOR ASY

1YH-12461-00-00

Unavailable

7

CONDUCTION ASSEMBLY

47X-12590-01-00

Unavailable

8

CAP, RADIATOR

4FL-12462-00-00

$62.99

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

10

WASHER, PLATE

90201-06380-00

$0.60

11

GROMMET (29L)

90480-15363-00

$8.49

12

GROMMET

90480-16284-00

$11.49

13

BOLT, FLANGE

95817-06025-00

Unavailable

14

BOLT, FLANGE

95817-06020-00

$3.81

15

COLLAR(2UJ)

90387-061V1-00

$8.49

16

COLLAR

90387-07020-00

Unavailable

17

WASHER, PLATE

90201-06086-00

Unavailable

18

COVER, RADIATOR

29L-12467-00-00

Unavailable

19

GROMMET

90480-12320-00

Unavailable

20

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

21

WASHER, PLATE

90201-06380-00

$0.60

22

PIPE 1

29L-12481-00-00

Unavailable

23

HOSE CLAMP ASSY

90450-32015-00

Unavailable

24

JOINT

4L0-12479-00-00

Unavailable

25

GASKET

3XV-12435-00-00

Unavailable

26

BOLT,SOCKET

91317-06020-00

Unavailable

27

JOINT 1

29L-12469-00-00

Unavailable

28

O-RING (1J7)

93210-16314-00

Unavailable

29

CIRCLIP (4L0)

93440-19083-00

Unavailable

30

PIPE 2

29L-12482-00-00

Unavailable

31

HOSE CLAMP ASSY

90450-32015-00

Unavailable

32

PIPE 4

4L0-12484-00-00

Unavailable

33

HOSE CLAMP ASSY

90450-32015-00

Unavailable

34

HOSE CLAMP ASSY

90450-35001-00

Unavailable

35

PIPE 3

29L-12483-00-00

Unavailable

36

HOSE CLAMP ASSY

90450-32015-00

Unavailable
