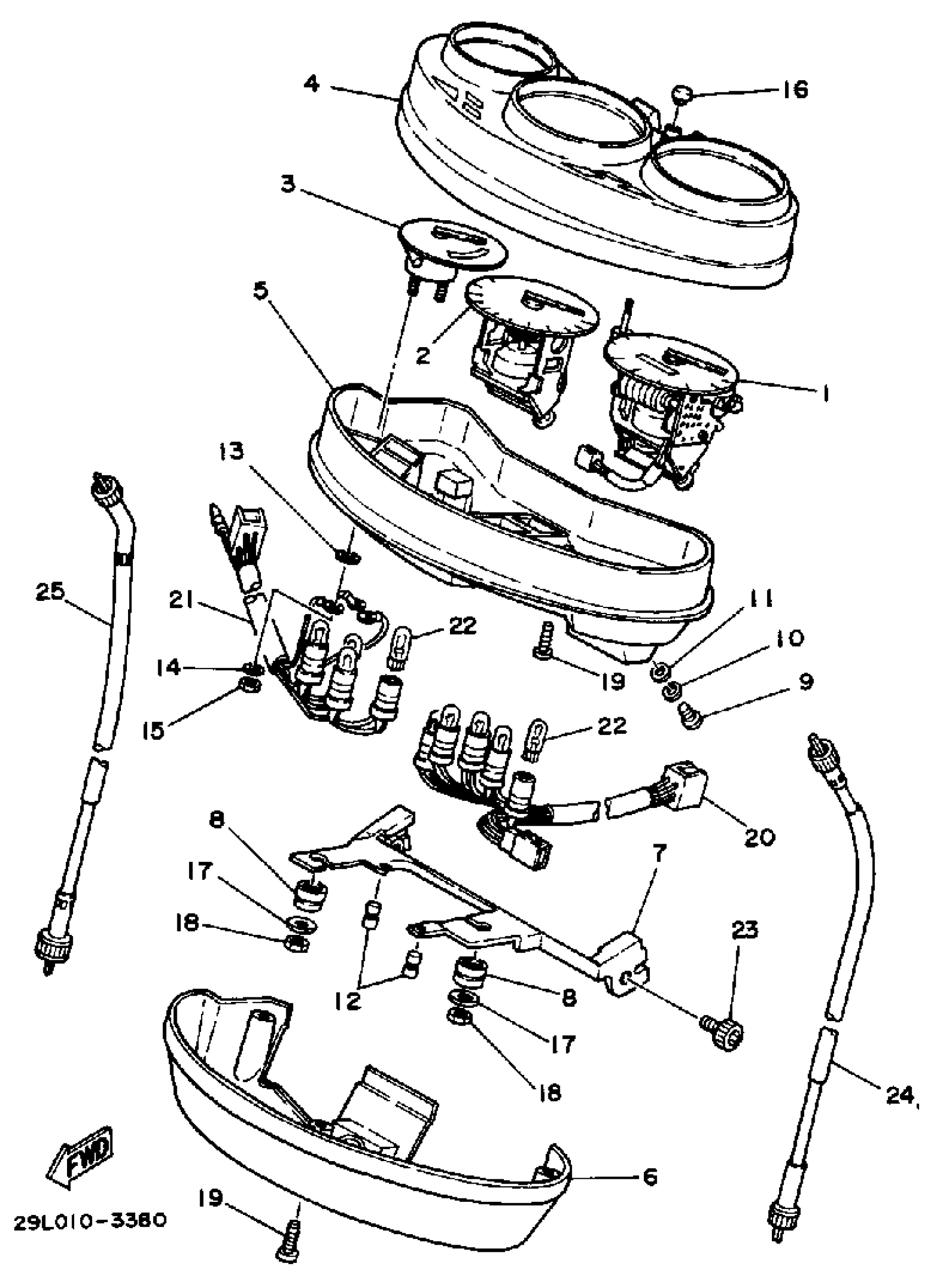

Yamaha RZ350L (RZ350) 1984 METER Diagram
#
Description
Price
1
SPEEDOMETER ASSEMBLY. (48H-83570-A0)
31K-83570-G1-00
Unavailable
2
TACHOMETER ASSEMBLY (48H-83540-00)
29L-83540-00-00
Unavailable
3
WATER TEMP METER
29L-83590-00-00
Unavailable
4
COVER, METER
48H-83559-00-00
Unavailable
5
CASE, INNER
31K-8353H-00-00
Unavailable
6
COVER, METER 2
29L-83579-00-00
Unavailable
7
BRACKET, METER
29L-83519-00-00
Unavailable
15
NUT, HEXAGON SMALL
95304-03700-00
Unavailable
16
KNOB, TRIP METER
29L-83578-00-00
Unavailable
17
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
18
NUT, HEXAGON (663)
95380-05600-00
Unavailable
19
SCREW, TAPPING (5G2)
90164-04006-00
Unavailable
20
SOCKET, METER
48H-83536-00-00
Unavailable
21
SOCKET CORD ASSEMBLY
29L-83520-00-00
Unavailable
22
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
23
BOLT, SOCKET
91317-08012-00
Unavailable
24
SPEEDOMETER CABLE ASSY
3VP-83550-02-00
Unavailable
25
TACHOMETER CABLE ASSY
3BN-83560-10-00
Unavailable
