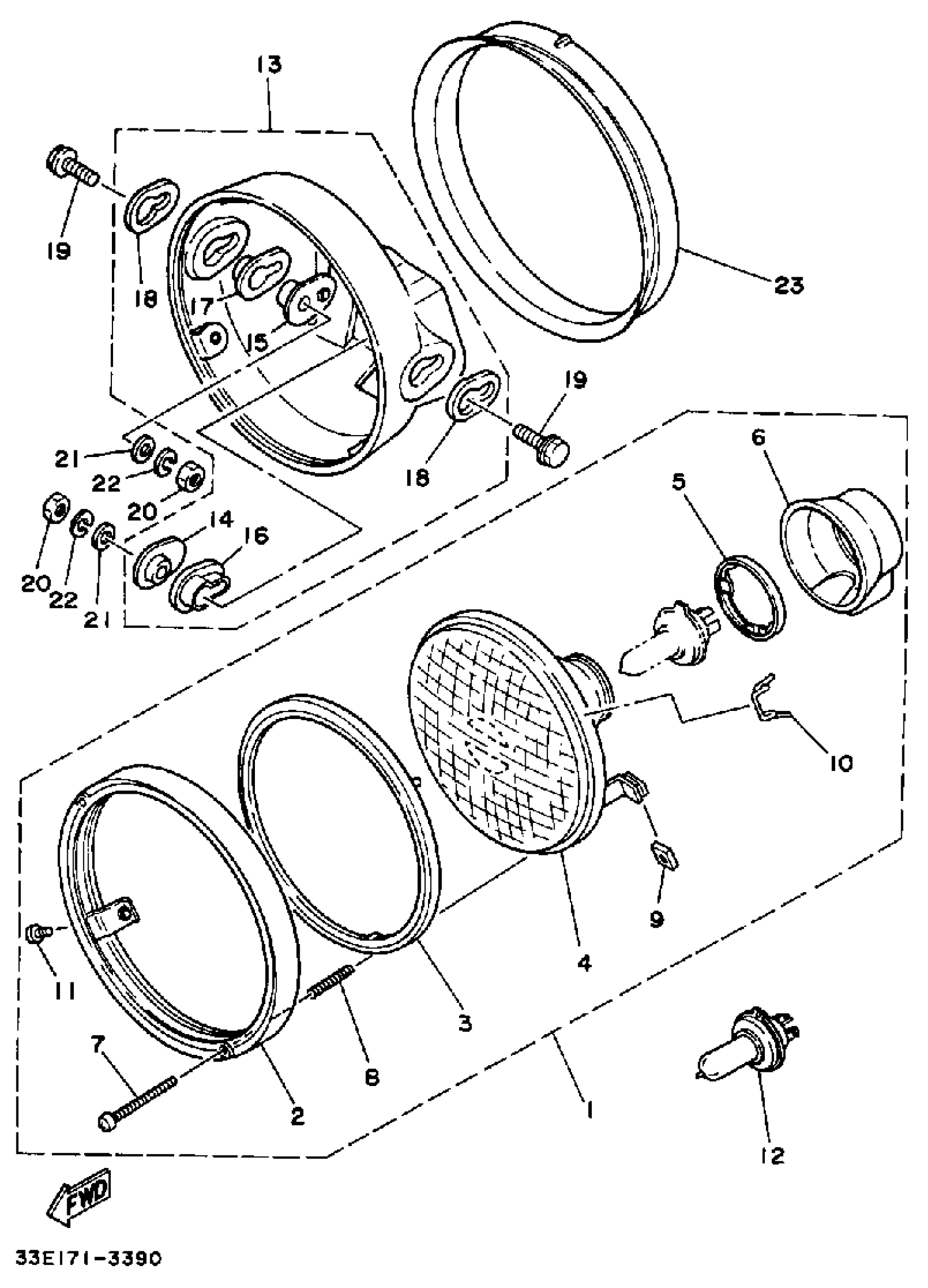

Yamaha RZ350L (RZ350) 1984 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSEMBLY

33E-84303-A0-00

Unavailable

2

. RIM, HEADLIGHT (29L-84315-00)

1AR-84315-00-00

Unavailable

3

RING, RETAINING

29L-84395-00-00

Unavailable

4

LENS ASSY

33E-84320-A0-00

$113.99

5

SETTING PLATE, BULB

2F9-84375-00-00

Unavailable

6

COVER, SOCKET

2F9-84397-01-00

$30.99

7

SCREW, RIM ADJUSTER

43F-84131-00-00

$9.99

8

SPRING, ADJUST

341-84332-60-00

$9.99

9

NUT, ADJUST

198-84334-60-00

$7.99

10

SET SPRING

55X-84124-00-00

$11.99

11

SCREW, PAN

98517-05012-00

$4.73

12

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

13

BODY ASSY

29L-84330-01-00

$47.99

14

COLLAR 1

5G2-84388-00-00

Unavailable

15

. SCREW, MNTNG RING

5G2-84398-00-00

Unavailable

16

BUSHING 1

5G2-84366-00-00

Unavailable

17

. DAMPER, HEADLIGHT 2

5G2-84367-00-00

Unavailable

18

BUSHING

5G2-84368-00-00

Unavailable

19

BOLT, FLANGE(6TA)

95817-08030-00

Unavailable

20

NUT(6L2)

95333-08600-00

Unavailable

21

WASHER, PLAIN

92990-08200-00

Unavailable

22

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

23

DAMPER

29L-28372-02-00

Unavailable
