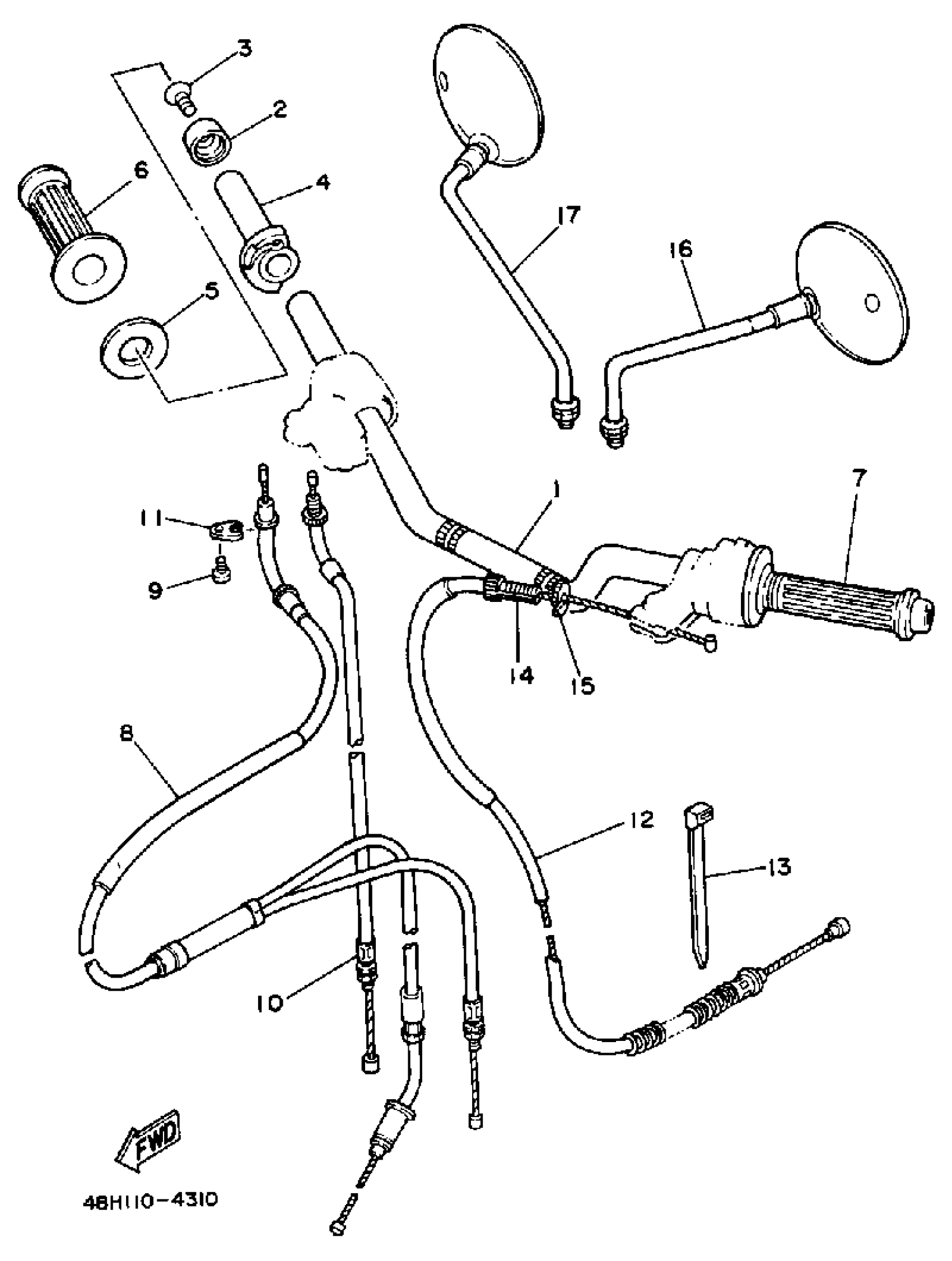

Yamaha RZ350L (RZ350) 1984 HANDLEBAR CABLE Diagram

#

Description
Price

1

HANDLEBAR

29L-26111-00-00

$147.99

2

END, GRIP

29L-26246-00-00

$39.99

3

SCREW, FLAT

98707-06030-00

$7.99

4

TUBE, THRTL GUIDE

36Y-26243-00-00

Unavailable

5

RING, LEAF

3Y1-26249-00-00

$9.99

6

GRIP (R.H)

31A-26242-00-00

$39.99

7

GRIP (L.H)

31A-26241-00-00

$37.99

8

CABLE ASSY, THROTTLE & PUMP

48H-26260-08-00

$86.99

9

GASKET, EXHAUST

98507-05008-00

$3.55

10

CABLE, THROTTLE 2

48H-26312-00-00

Unavailable

11

HOLDER

5H0-26393-00-00

$7.99

12

CABLE, CLUTCH

29L-26335-00-00

Unavailable

13

CLAMP

5Y9-12491-00-00

$6.99

14

BOLT

90123-08002-00

$10.49

15

NUT

90179-08030-00

$5.49

16

MIRROR ASY LH

10W-26280-10-00

Unavailable

17

MIRROR ASY

10W-26290-00-00

Unavailable
