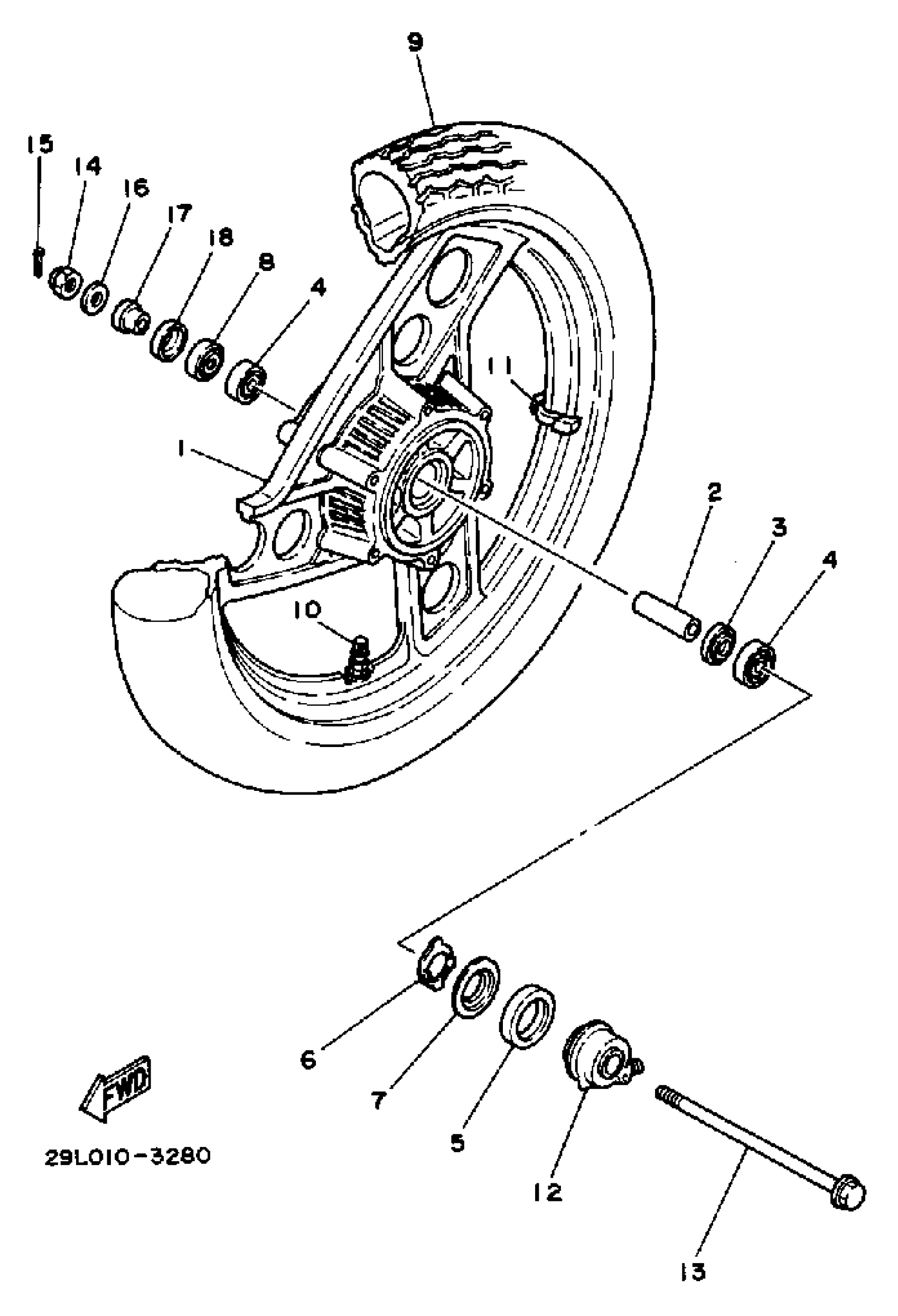

Yamaha RZ350L (RZ350) 1984 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, CAST FRONT

29L-25168-00-8L

Unavailable

1

WHEEL, CAST FRONT

29L-25168-00-98

Unavailable

2

COLLAR (4L0)

90387-123A9-00

Unavailable

3

FLANGE, SPACER

109-25315-00-00

$5.79

4

BEARING

93306-30102-00

$32.65

5

OIL SEAL (45X56X6)

93105-45017-00

$10.74

6

CLUTCH, METER (371,447)

341-25149-00-00

$6.15

7

RETAINER, CLUTCH (371,447)

341-25846-00-00

$6.44

8

OIL SEAL(3TU)

93106-20033-00

$10.29

9

90/90-18 F14TL (94109-187M7)

94109-181F5-00

Unavailable

10

VALVE, RIM (31A)

93900-00031-00

$14.39

11

BALANCER, WHEEL

5MT-25398-00-00

$14.51

11

BALANCER, WHEEL

5MT-25398-10-00

$14.35

11

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

12

GEAR UNIT ASSY.

4L0-25190-10-00

Unavailable

13

AXLE, WHEEL

4L0-25181-00-00

Unavailable

14

NUT CASTLE(481)

90171-12005-00

Unavailable

15

PIN, COTTER

91490-30030-00

Unavailable

16

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

17

COLLAR (40E)

90387-127E0-00

Unavailable

18

COVER HUB DUST

481-25118-01-00

Unavailable
