FRONT FORK

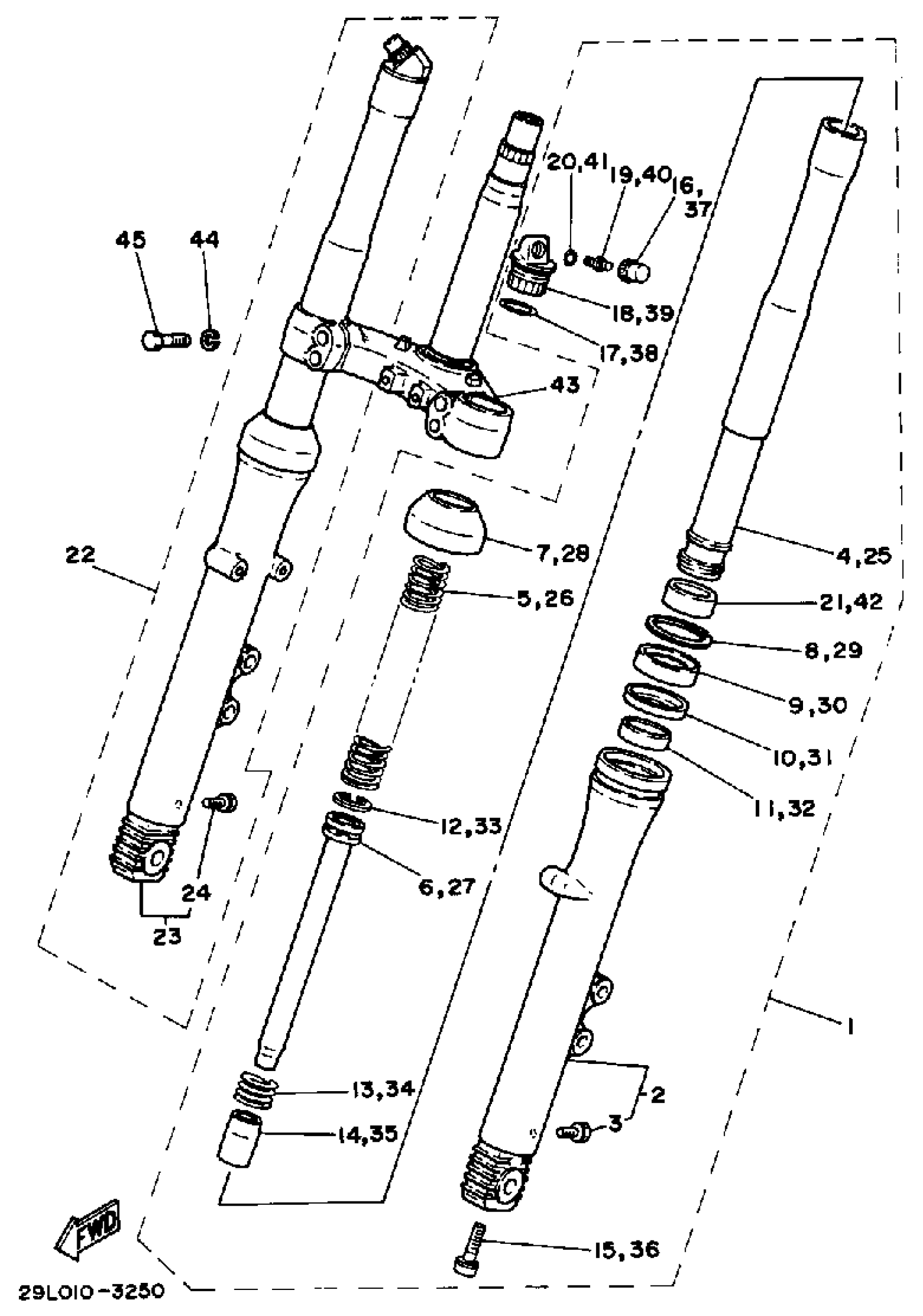

Yamaha RZ350L (RZ350) 1984 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY L
31K-23102-01-00
Unavailable
2
. TUBE, OUTER 1
29L-23126-00-38
Unavailable
4
. INNER TUBE 1
31K-23110-00-00
Unavailable
5
. SPRING, FRONT FORK
29L-23141-00-00
Unavailable
6
PISTON, FRONT FORK
1UA-23171-00-00
Unavailable
9
OIL SEAL
1UA-23145-00-00
Unavailable
10
OIL SEAL
1UA-23145-00-00
Unavailable
12
. RING, PISTON FRONT FORK (2F3-23157-00)
1T4-23157-01-00
Unavailable
13
. SPRING, REBOUND
10M-23151-00-00
Unavailable
14
. SPACER, OIL LOCK
10V-23166-00-00
Unavailable
16
. CAP, AIR VALVE
27H-23184-00-00
Unavailable
17
O-RING
27H-23147-00-00
Unavailable
18
. BOLT, CAP
27H-23111-00-00
Unavailable
19
. AIR VALVE
5K7-23190-00-00
Unavailable
20
O-RING (26H)
93210-06632-00
Unavailable
21
METAL, SLIDE 2
10V-23135-00-00
Unavailable
22
FRONT FORK ASSEMBLY R
31K-23103-01-00
Unavailable
23
TUBE, OUTER 2
(29L-23136-00-38)
Unavailable
25
. INNER TUBE 1
31K-23110-00-00
Unavailable
26
. SPRING, FRONT FORK
29L-23141-00-00
Unavailable
27
PISTON, FRONT FORK
1UA-23171-00-00
Unavailable
30
OIL SEAL
1UA-23145-00-00
Unavailable
31
SPACER, SEAL
10V-23147-00-00
Unavailable
33
. RING, PISTON FRONT FORK (2F3-23157-00)
1T4-23157-01-00
Unavailable
34
. SPRING, REBOUND
10M-23151-00-00
Unavailable
35
. SPACER, OIL LOCK
10V-23166-00-00
Unavailable
37
. CAP, AIR VALVE
27H-23184-00-00
Unavailable
38
O-RING
27H-23147-00-00
Unavailable
39
. BOLT, CAP
27H-23111-00-00
Unavailable
40
. AIR VALVE
5K7-23190-00-00
Unavailable
41
O-RING (26H)
93210-06632-00
Unavailable
42
METAL, SLIDE 2
10V-23135-00-00
Unavailable
43
UNDER BRACKET
31K-23340-30-00
Unavailable
44
. WASHER, SPRING LWR
3J3-23159-00-00
Unavailable
45
BOLT
97017-08035-00
Unavailable
