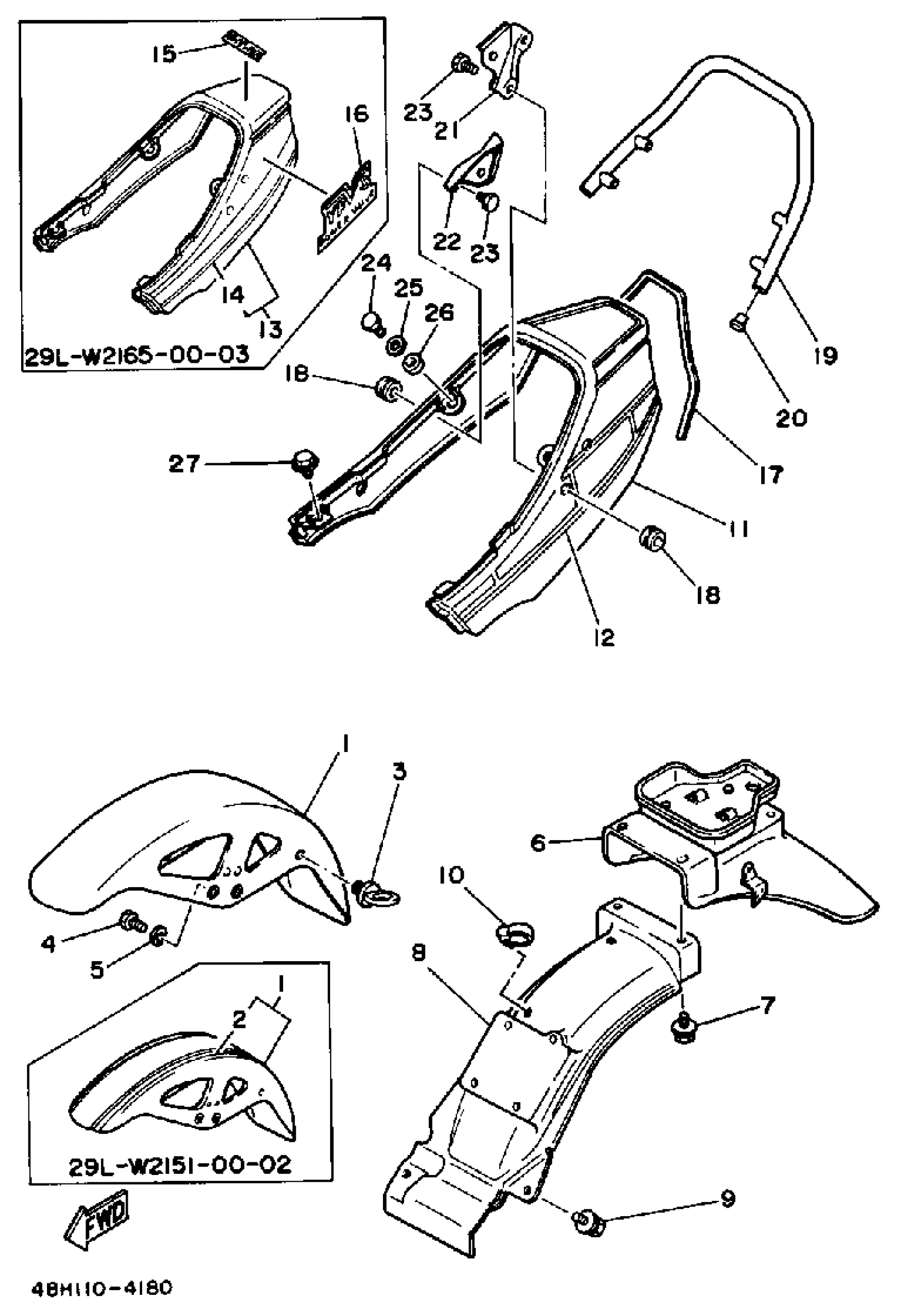

Yamaha RZ350L (RZ350) 1984 FENDER Diagram
#
Description
Price
1
FENDER, FRONT
29L-21510-00-5X
Unavailable
1
FRONT FENDER, COMP
29L-21510-00-36
Unavailable
2
. GRPHC SET, FRT FNDR (SILKY WHITE)
31K-21570-00-00
Unavailable
5
WASHER, SPRING
92995-06100-00
Unavailable
6
REAR FENDER (33E-W21616-00)
29L-W2161-01-00
Unavailable
8
GUARD, MUD
29L-21629-01-00
Unavailable
9
BOLT, WITH WASHER
(90119-06095-00)
Unavailable
10
CLAMP (2H7)
90464-12027-00
Unavailable
11
COVER, REAR FENDER
29L-21651-00-26
Unavailable
12
GRAPHIC (COMPETITION YELLOW)
29L-21660-30-00
Unavailable
13
COVER, REAR FENDER
29L-W2165-00-03
Unavailable
14
. GRAPHIC (SILKY WHITE)
31K-21660-30-00
Unavailable
15
EMBLEM 1 (SILKY WHITE)
31K-2163G-00-00
Unavailable
16
EMBLEM 2 (SILKY WHITE)
31K-2163H-00-00
Unavailable
17
MOLE 4
36Y-28348-00-00
Unavailable
18
GROMMET(55K)
90480-18431-00
Unavailable
19
STAY, REAR
29L-21645-00-00
Unavailable
20
PLUG
90338-15110-00
Unavailable
21
BRACKET, REAR STAY
29L-21688-00-00
Unavailable
22
BRACKET REAR STAY2
29L-21689-00-00
Unavailable
23
BOLT, HEXAGON
97017-08016-00
Unavailable
24
BOLT, HEXAGON
97013-08020-00
Unavailable
25
WASHER, PLATE(3XP)
90201-086P8-00
Unavailable
26
COLLAR (1K5)
90387-10567-00
Unavailable
27
BOLT, WITH WASHER(55K)
90119-06117-00
Unavailable
