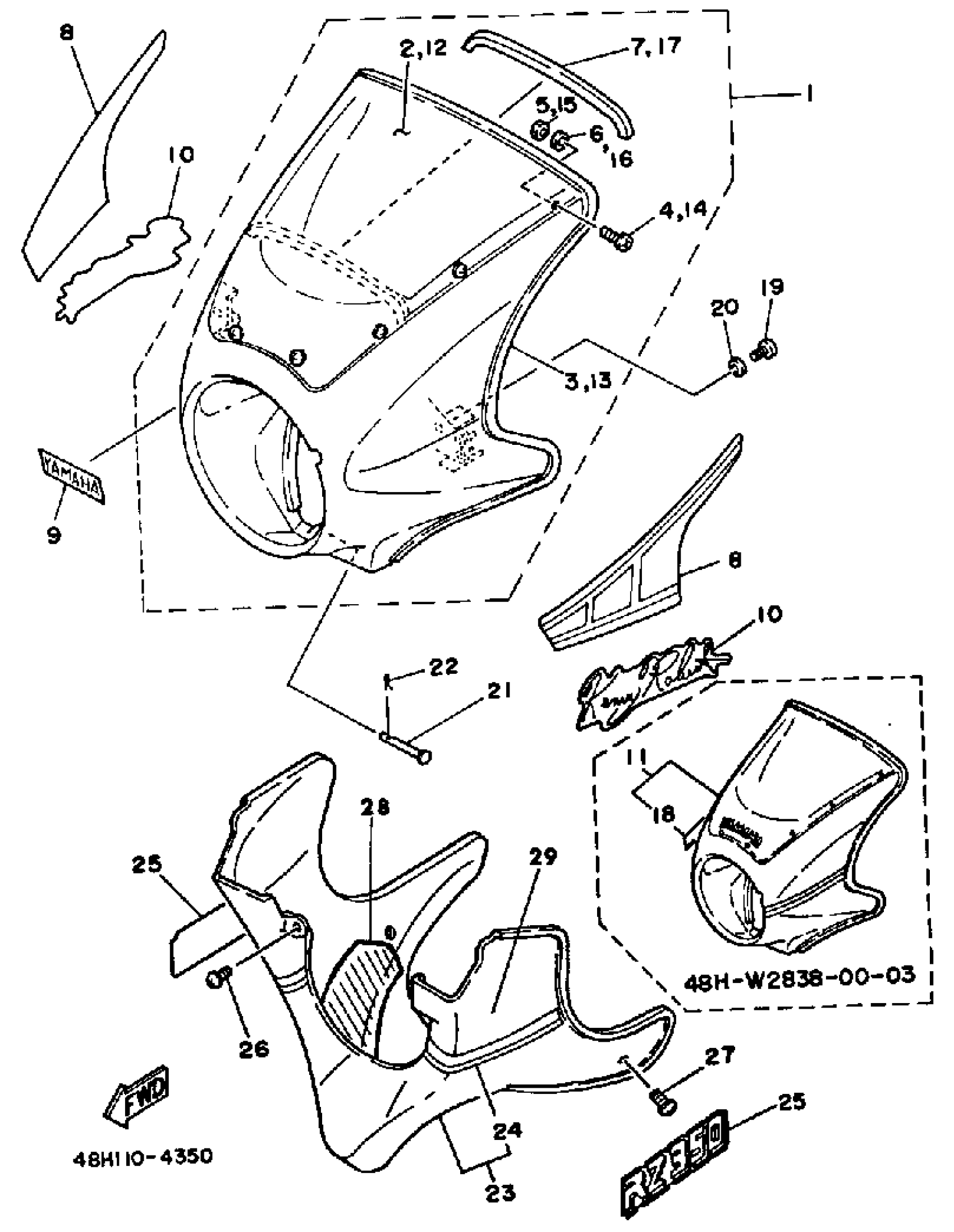

Yamaha RZ350L (RZ350) 1984 FAIRING COWLING Diagram

#

Description
Price

1

COWLING ASSEMBLY

48H-28350-10-26

Unavailable

2

WINDSHIELD

33E-28381-00-00

Unavailable

3

TRIM

29L-28376-00-00

Unavailable

4

. SCREW, PAN HEAD

90157-04062-00

Unavailable

5

NUT(6TA)

95307-04600-00

$8.49

6

WASHER, PLATE (8M6)

90201-047A2-00

$3.35

7

DAMPER

29L-28217-00-00

$7.99

8

GRPHC SET, COWLING (COMPETITION YELLOW)

29L-28390-70-00

Unavailable

9

EMBLEM, YAMAHA

99244-00080-00

$15.99

10

EMBLEM (COMPETITION YELLOW)

48H-28328-00-00

Unavailable

11

COWLING ASSEMBLY

48H-W2838-10-03

Unavailable

12

WINDSHIELD

33E-28381-00-00

Unavailable

13

TRIM

29L-28376-00-00

Unavailable

14

. SCREW, PAN HEAD

90157-04062-00

Unavailable

15

NUT(6TA)

95307-04600-00

$8.49

16

WASHER, PLATE (8M6)

90201-047A2-00

$3.35

17

DAMPER

29L-28217-00-00

$7.99

18

. GRPHC SET, COWLING (SILKY WHITE)

31K-28390-00-00

Unavailable

19

SCREW,PAN HEAD

98580-08012-00

Unavailable

20

WASHER(JN5)

92907-08100-00

Unavailable

21

PIN, CLEVIS

91701-05060-00

Unavailable

22

CLIP (156-83525-00)

90468-10050-00

Unavailable

23

COVER, LOWER (48H-W2839-00-02)

48H-W2839-00-1X

Unavailable

23

COVER LOWER

(48H-W2839-00-5X)

Unavailable

24

. GRAHIC SET, LWR CVR (COMPETITION YELLOW)

29L-28301-00-00

Unavailable

24

. GRAHIC SET, LWR CVR (SILKY WHITE)

31K-28301-40-00

Unavailable

25

EMBLEM 1 (SILKY WHITE)

35G-2839H-00-00

Unavailable

25

EMBLEM 1 (COMPETITION YELLOW)

35G-2839H-20-00

Unavailable

26

SCREW, BINDING(3XV)

90154-05059-00

Unavailable

27

SCREW, BINDING (31K)

90154-06014-00

Unavailable

28

SEAT 3 RIGHT

1EL-2848L-00-00

Unavailable

29

SEAT 2 LEFT

1EL-2848K-00-00

Unavailable
