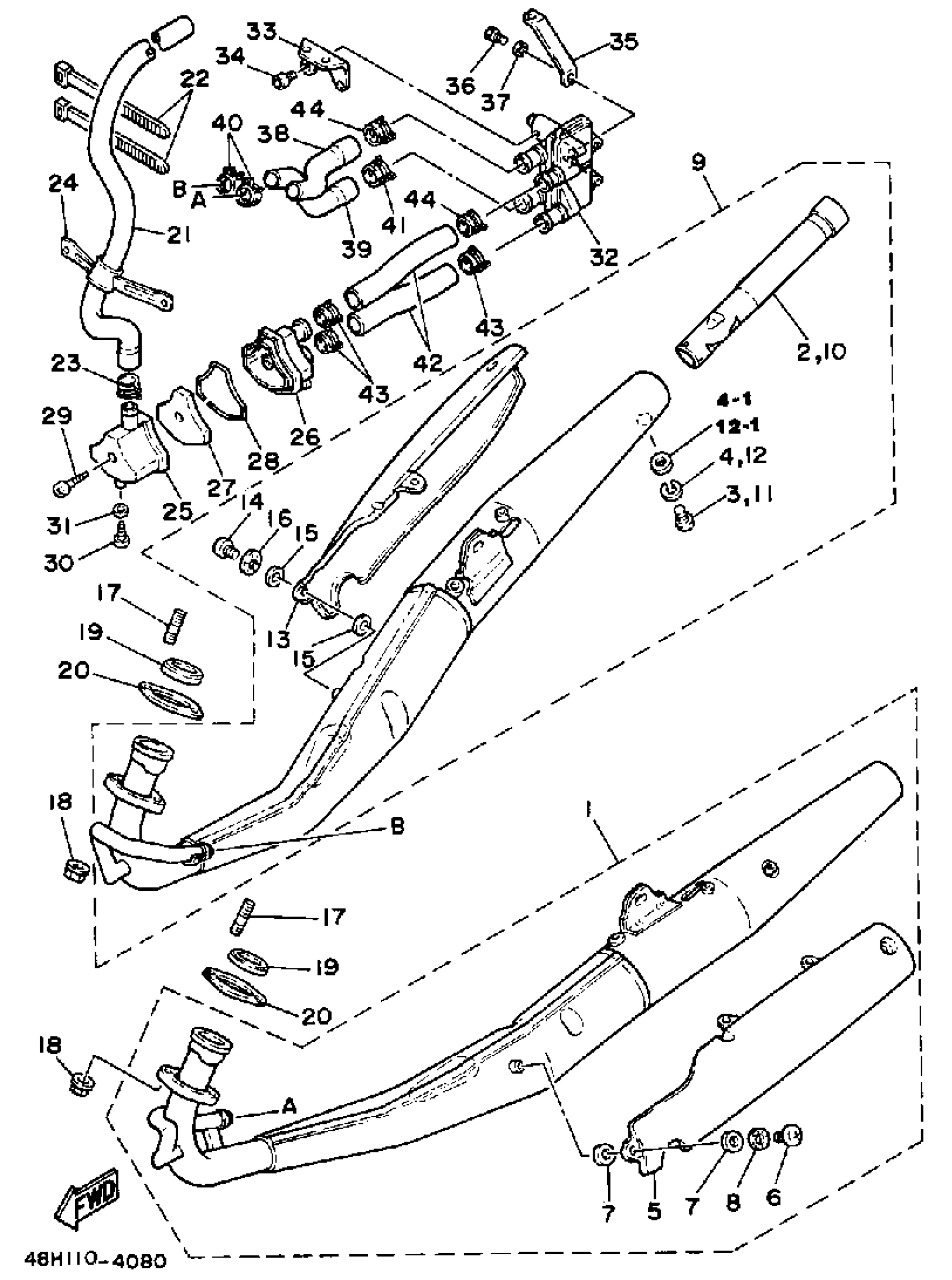

Yamaha RZ350L (RZ350) 1984 EXHAUST Diagram

#

Description
Price

1

MUFFLER ASSEMBLY L

48H-14710-00-00

Unavailable

1

WASHER, PLAIN (646)

92990-06600-00

$2.80

2

SILENCER,EXHAUST

48H-14753-01-00

Unavailable

3

SCREW PAN HEAD

98580-06010-00

$8.49

4

WASHER, SPRING

92995-06100-00

Unavailable

5

. PROTECTOR, MUFFLR1

48H-W1473-00-00

Unavailable

6

SCREW, BINDING

98907-06008-00

$8.49

7

WASHER, PLATE(3MB)

90202-05187-00

$1.38

8

WASHER, WAVE(3RW)

90206-06090-00

$8.49

9

MUFFLER ASSEMBLY R

48H-14720-00-00

Unavailable

10

SILENCER,EXHAUST

48H-14753-01-00

Unavailable

11

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

SCREW PAN HEAD

98580-06010-00

$8.49

12

WASHER, SPRING

92995-06100-00

Unavailable

13

. PROTECTOR, MUFFLR2

48H-W1474-00-00

Unavailable

14

SCREW, BINDING

98907-06008-00

$8.49

15

WASHER, PLATE(3MB)

90202-05187-00

$1.38

16

WASHER, WAVE(3RW)

90206-06090-00

$8.49

17

BOLT, STUD (4L0)

90116-08365-00

Unavailable

18

NUT, SELF-LOCKING(3BN)

90185-08146-00

Unavailable

19

GASKET, EXHAUST PIPE

29L-14613-00-00

Unavailable

20

GASKET 3

29L-14643-10-00

Unavailable

21

HOSE, BEND 5

48H-14885-00-00

Unavailable

22

BAND, SWITCH CORD

437-83936-01-00

Unavailable

23

CLIP(4HC)

90467-23177-00

Unavailable

24

STAY

(48H-14834-00-00)

Unavailable

25

CASE, AIR CLNR

48H-14857-00-00

Unavailable

26

CAP, CASE

48H-14858-00-00

Unavailable

27

FILTER

48H-14827-00-00

Unavailable

28

SEAL, CAP

48H-14859-00-00

Unavailable

29

YBS83-540 SCREW,PANH.TAPPING

97780-50140-00

Unavailable

30

YBS83-525 SCREW,PANH.TAPPING

97780-50125-00

Unavailable

31

. WASHER, PLAIN

92990-05200-00

Unavailable

32

REED VALVE ASSEMBLY.

(48H-14808-00-00)

Unavailable

33

BRACKET

48H-14867-00-00

Unavailable

34

BOLT,SOCKET

91317-06014-00

Unavailable

35

BRACKET 2

(48H-14868-00-00)

Unavailable

36

BOLT, HEXAGON

97017-06030-00

Unavailable

37

WASHER, PLAIN (646)

92990-06600-00

$2.80

38

HOSE, BEND 1

(48H-14881-00-00)

Unavailable

39

HOSE, BEND 2

(48H-14882-00-00)

Unavailable

40

CLIP (23E)

90467-20085-00

Unavailable

41

CLIP(4HC)

90467-23177-00

Unavailable

42

HOSE, BEND 3

(48H-14883-00-00)

Unavailable

43

CLIP(4HC)

90467-23177-00

Unavailable

44

CLAMP, HOSE

90460-28243-00

Unavailable
