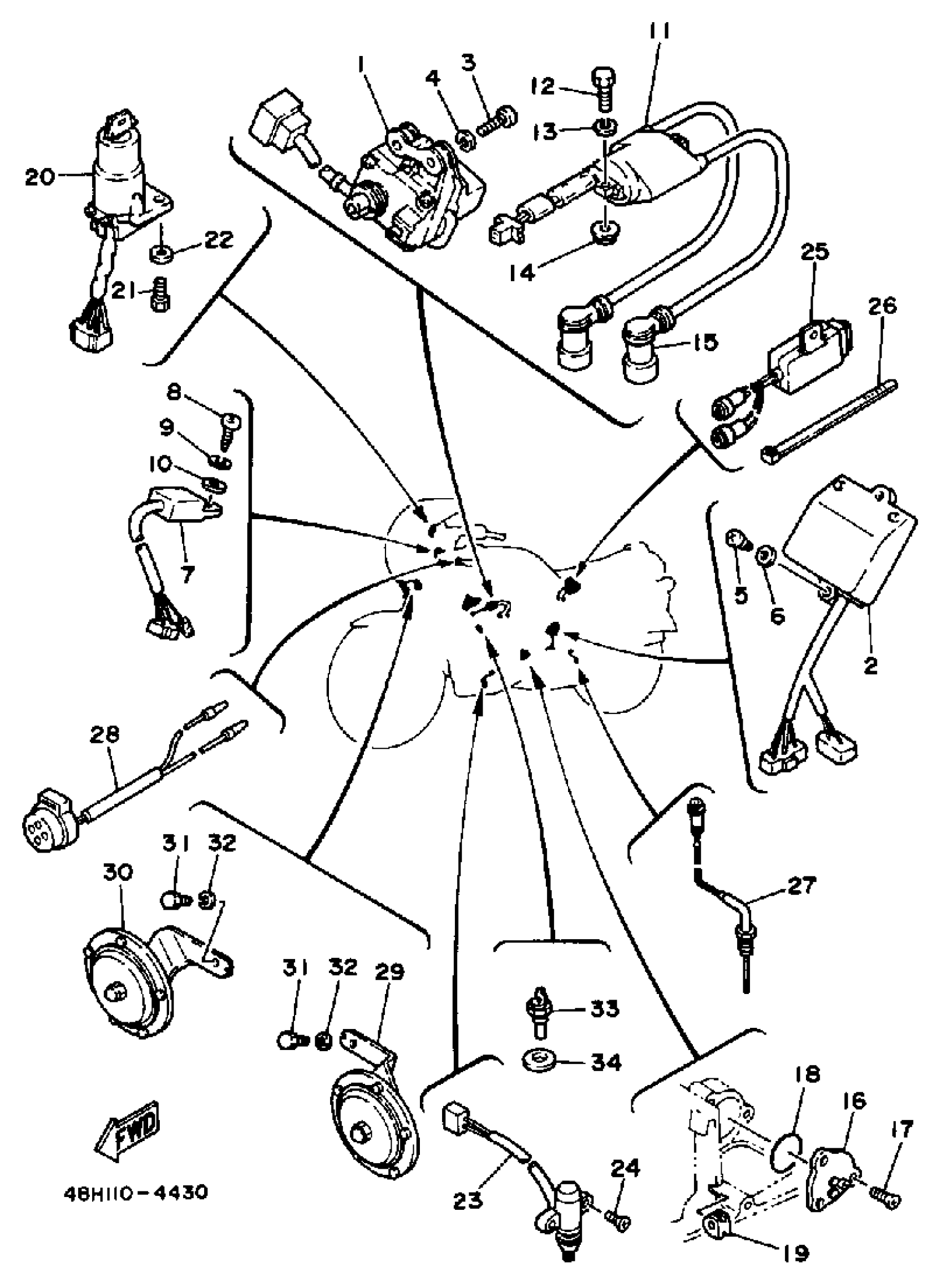

Yamaha RZ350L (RZ350) 1984 ELECTRICAL 2 Diagram

#

Description
Price

1

SERVOMOTOR ASSEMBLY

29L-85820-M2-00

Unavailable

2

CONTROL UNIT ASSEMBLY

29L-85830-M0-00

Unavailable

3

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

4

WASHER, SPRING

92995-06100-00

Unavailable

5

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

$2.70

6

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

7

CONTROL UNIT ASSEMBLY

4Y3-85590-M0-00

Unavailable

8

SCREW, TAPPING(JA3)

97707-60520-00

$8.49

9

WASHER, SPRING

92995-06100-00

Unavailable

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

IGNITION COIL ASSEMBLY

4L0-82310-50-00

Unavailable

12

BOLT, HEXAGON

97017-06025-00

$4.24

13

WASHER, SPRING

92995-06100-00

Unavailable

14

NUT, FLANGE(7NB)

95780-06500-00

$2.60

15

PLUG CAP ASSY

4BP-82370-01-00

$35.99

16

NEUTRAL SWITCH ASSY

1L9-82540-00-00

Unavailable

17

SCREW, FLAT

98707-05012-00

Unavailable

18

O-RING (371)

93210-29196-00

Unavailable

19

GROMMET

90480-01148-00

Unavailable

20

MAIN SWCH STRG LCK

1GM-82501-31-00

Unavailable

21

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

22

WASHER, PLAIN (646)

92990-06600-00

$2.80

23

SWITCH, SIDE STAND

33E-82566-00-00

Unavailable

24

SCREW, FLAT

98707-05016-00

Unavailable

25

CONTROL UNIT ASSEMBLY

48H-85740-00-00

Unavailable

26

BAND

1UA-82591-00-00

Unavailable

27

THERMOSENSOR ASSEMBLY

48H-85790-00-00

Unavailable

28

AUDIO PILOT ASSEMBLY

48H-83390-20-00

Unavailable

29

HORN

29L-83371-20-00

Unavailable

30

HORN

29L-83371-30-00

Unavailable

31

BOLT, HEXAGON

97017-08016-00

Unavailable

32

WASHER(JN5)

92907-08100-00

Unavailable

33

THERMO UNIT

5R2-83591-00-00

Unavailable

34

WASHER, PLATE(481)

90201-10118-00

Unavailable
