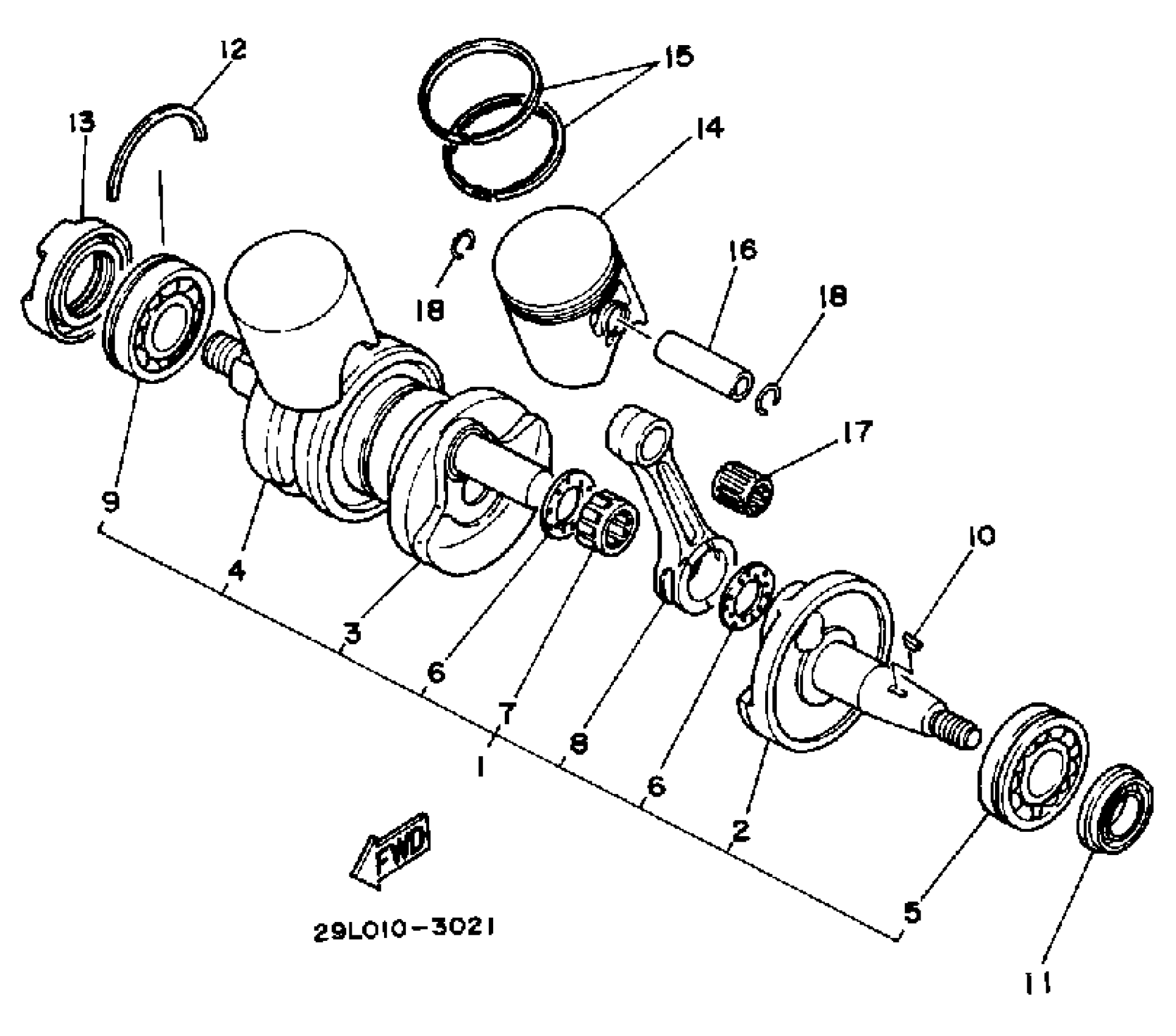

Yamaha RZ350L (RZ350) 1984 CRANKSHAFT PISTON Diagram

CRANKSHAFT ASSEMBLY (29L-11400-20)

29L-11400-21-00

Unavailable

CRANK 1

29L-11412-00-00

Unavailable

CRANK SUB ASSY 1

29L-11401-09-00

Unavailable

CRANK 4

29L-11442-10-00

Unavailable

BEARING

93306-30571-00

$72.99

WASHER (29L)

90209-22248-00

Unavailable

BEARING, CYLINDRICAL(3XP)

93310-523D2-00

Unavailable

ROD, CONNECTING

29L-11651-00-00

Unavailable

BEARING(1UA)

93306-30549-00

$65.99

KEY, WOODRUFF (8R9)

90280-05033-00

$10.49

OIL SEAL (2R8)

93103-25108-00

$20.99

CIRCLIP

278-17424-01-00

$21.99

OIL SEAL (40X62X10-360)

93103-40077-00

$18.99

PISTON STD

31K-11631-00-94

Unavailable

PISTON 1 O/S 0.25

31K-11635-00-00

Unavailable

PISTON 2 O/S 0.50

31K-11636-00-00

Unavailable

PISTON RING SET (STD)

1UA-11610-00-00

Unavailable

PISTON RING SET

1UA-11610-10-00

Unavailable

PISTON RING SET (2ND O/S)

1UA-11610-20-00

Unavailable

PIN, PISTON

4L0-11633-00-00

Unavailable

BEARING, CYLINDRICAL(8AX)

93310-316D6-00

Unavailable

CIRCLIP(1AR)

93450-17129-00

Unavailable
