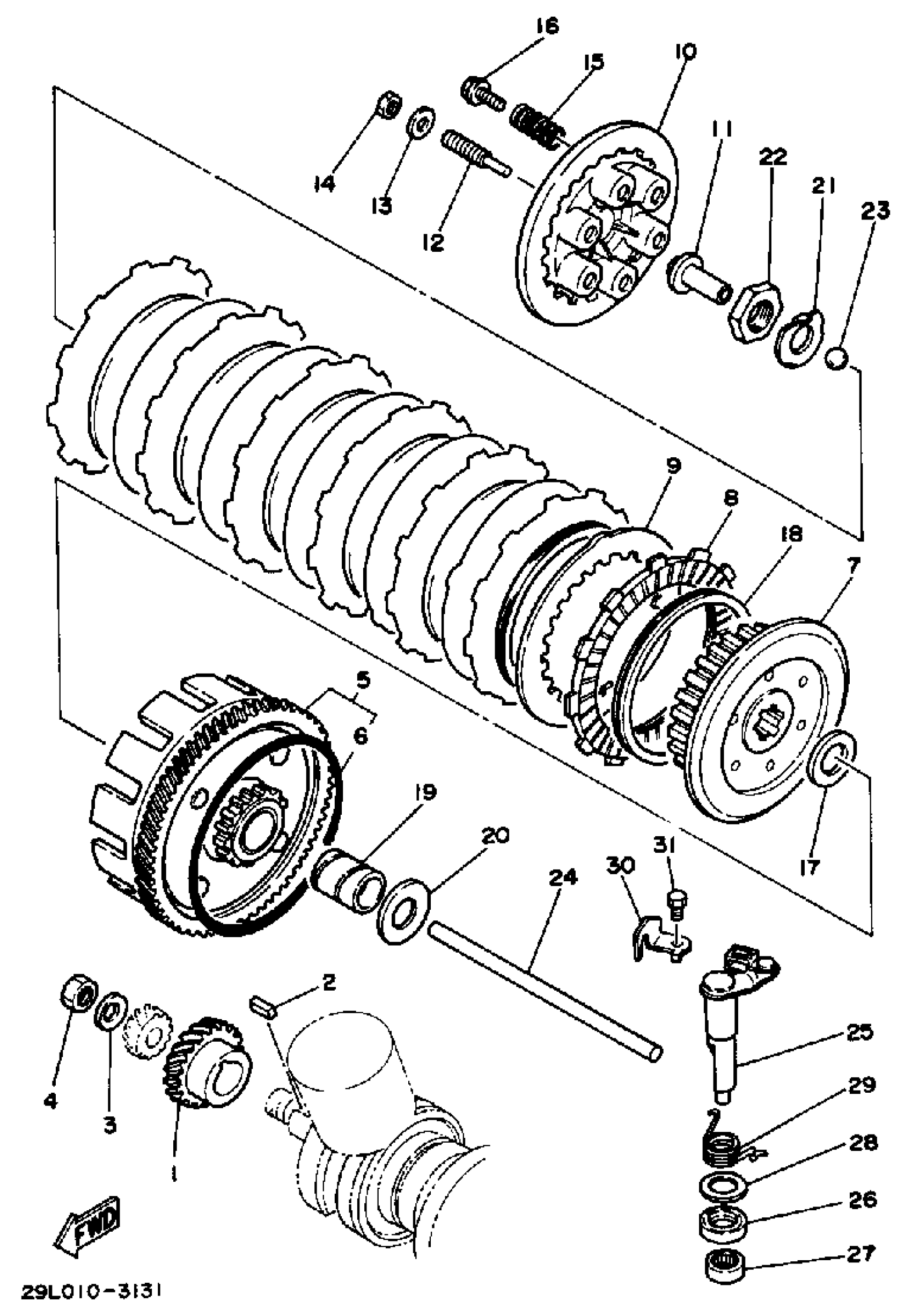

Yamaha RZ350L (RZ350) 1984 CLUTCH Diagram
#
Description
Price
1
GEAR, PRIMARY DRIVE
4L0-16111-00-00
Unavailable
6
O-RING
93211-10232-00
Unavailable
8
UNAVAILABLE IN PRICE BOOK
5Y1-16321-01-00
Unavailable
13
WASHER, PLAIN
92990-08200-00
Unavailable
15
SPRING COMPRESSION168163330000
90501-23138-00
Unavailable
16
SCREW, WITH WASHER (1W4)
90159-06016-00
Unavailable
17
PLATE, THRUST
360-16154-00-00
Unavailable
18
RING, CUSHION
278-16367-00-00
Unavailable
19
SPACER
278-16181-01-00
Unavailable
20
PLATE, THRUST
360-16154-00-00
Unavailable
21
WASHER, LOCK (29L)
90215-20223-00
Unavailable
22
NUT, HEXAGON (29L)
90170-20320-00
Unavailable
23
BALL (1M1)
93515-32029-00
Unavailable
24
ROD, PUSH 2
29L-16357-00-00
Unavailable
25
PUSH LEVER ASSY
29L-16380-00-00
Unavailable
26
OIL SEAL (17X28X6-101)
93102-17004-00
Unavailable
27
BRG,CYL-CAL ROLLER 10G KY
93315-11720-00
Unavailable
28
WASHER PLATE 168217580000
90201-18262-00
Unavailable
29
SPRING, TORSION (29L)
90508-16599-00
Unavailable
30
CLAMP (29L)
90465-16239-00
Unavailable
31
BOLT(3JP)
97017-06010-00
Unavailable
