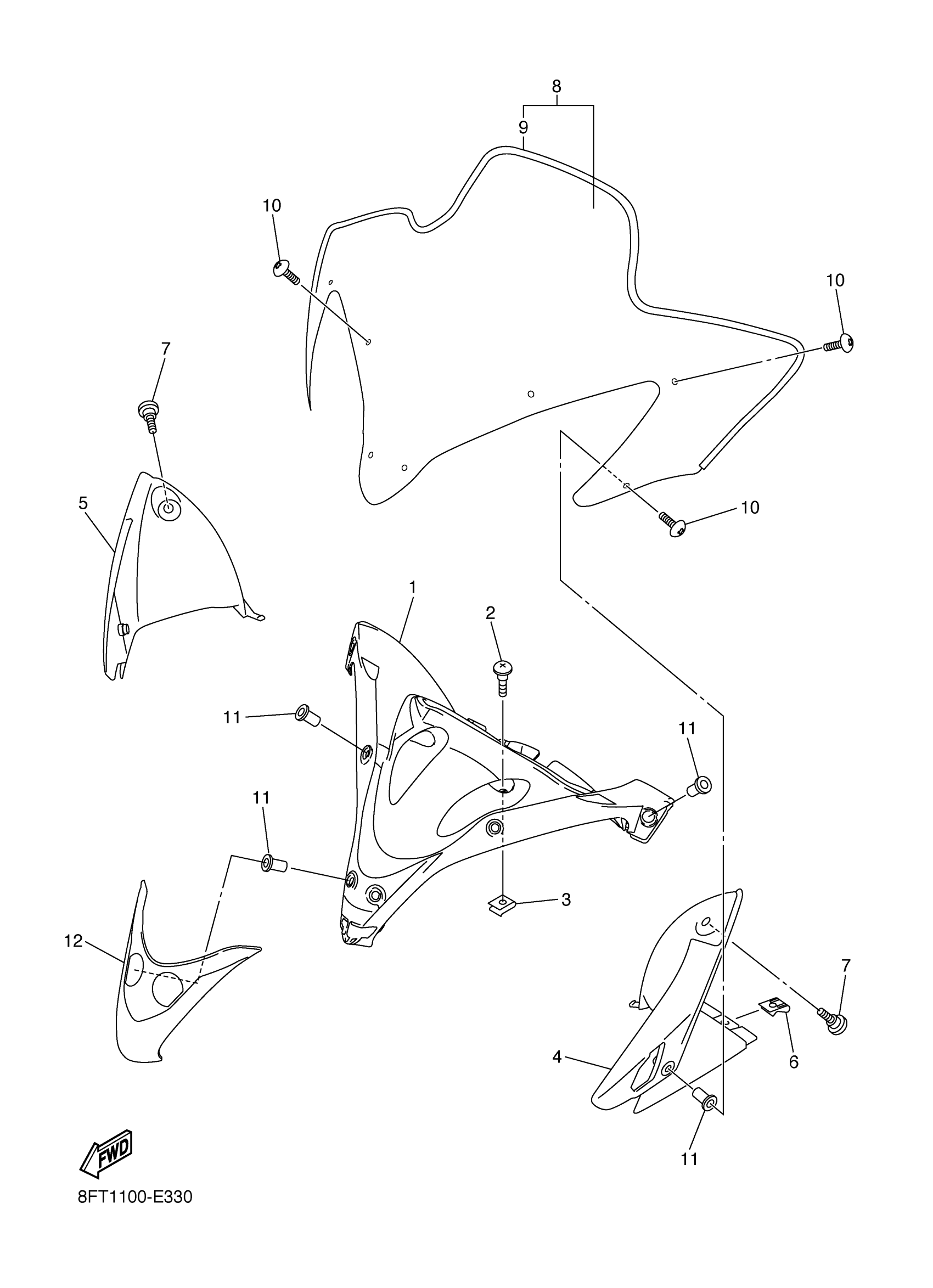

Yamaha RXW10W (ATTAK) 8FT3 2007 WINDSHIELD Diagram

#

Description
Price

1

COVER, HEADLIGHT

8FP-77251-00-00

$243.99

2

SCREW, BINDING

90154-06009-00

$4.61

3

NUT, SPRING

90183-06100-00

$10.49

4

PLATE 1

8FP-77185-00-00

$52.99

5

PLATE 2

8FP-77186-00-00

$59.99

6

PLATE, SPRING

5PW-2177L-01-00

$6.99

7

SCREW, BINDING

90154-06009-00

$4.61

8

WINDSHIELD COMP.

8FR-K7210-10-00

Unavailable

8

WINDSHIELD COMP.

8FT-K7210-20-00

Unavailable

8

WINDSHIELD COMP.

8GD-K7210-10-00

Unavailable

8

WINDSHIELD COMP.

8GV-K7210-10-00

Unavailable

9

. TRIM, UPPER

8FT-K7213-00-00

Unavailable

10

SCREW, ROUND HEAD(1UX)

90150-05024-00

$5.60

11

NUT(1KT)

90179-05523-00

$8.49

12

FAIRING

8FP-K7231-00-00

Unavailable
