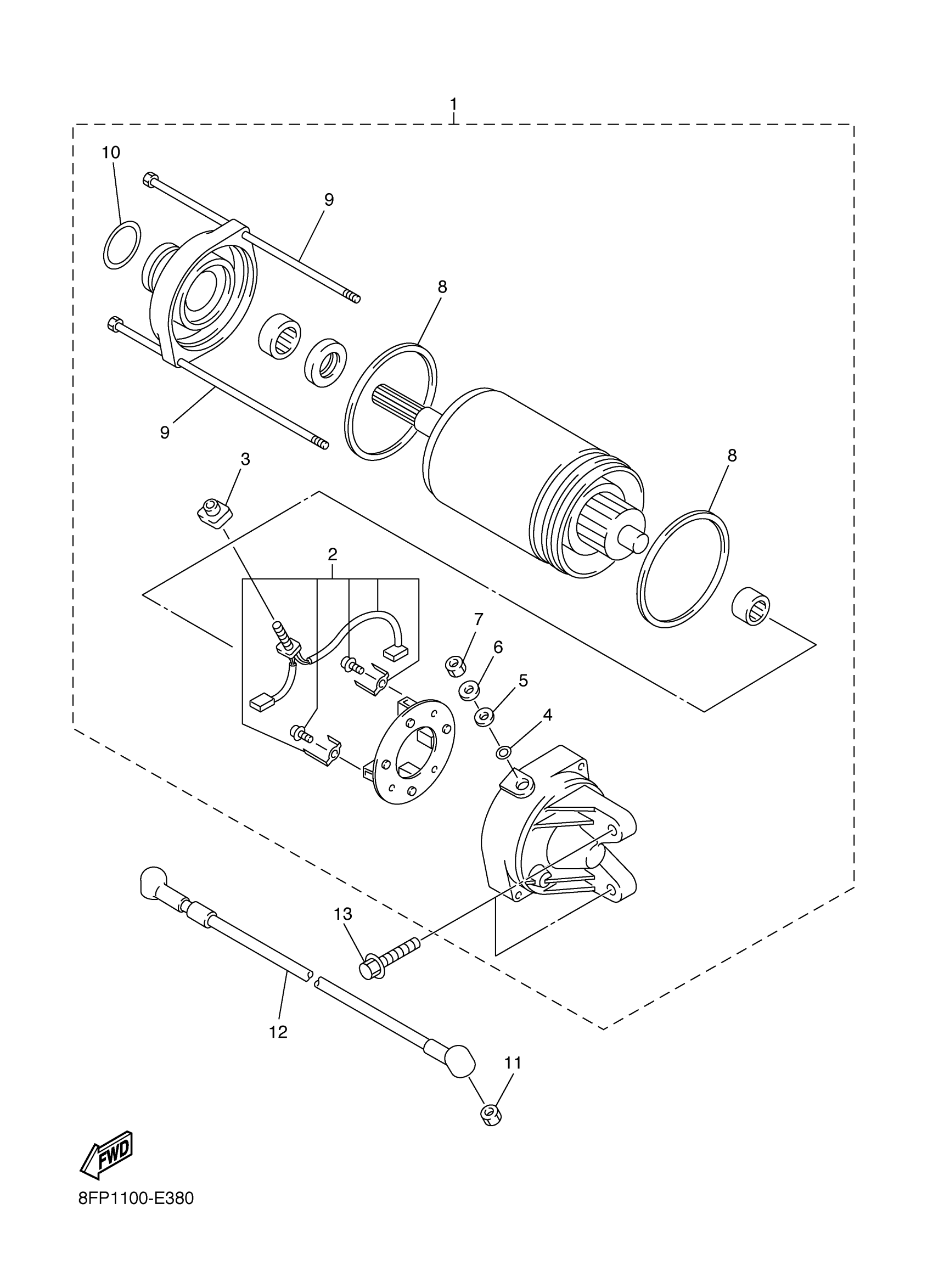

Yamaha RXW10W (ATTAK) 8FT3 2007 STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY

8HG-81890-00-00

$837.99

2

BRUSH SET

1D7-81801-00-00

$73.99

3

BUSH, TERMINAL

5PX-8182G-00-00

$6.99

4

O-RING (26H)

93210-06632-00

$8.49

5

WASHER, PLAIN

8FA-8181L-00-00

Unavailable

6

WASHER, PLATE (8H9)

90201-06726-00

$2.17

7

NUT(650)

95380-06700-00

$8.49

8

GASKET

5PX-81861-00-00

Unavailable

9

SCREW

8FA-81846-00-00

Unavailable

10

O-RING (437)

93210-24235-00

$7.49

11

NUT(650)

95380-06700-00

$8.49

12

CORD COMP.

8FA-8183G-00-00

Unavailable

13

BOLT, FLANGE(6TA)

95817-08030-00

$8.49
