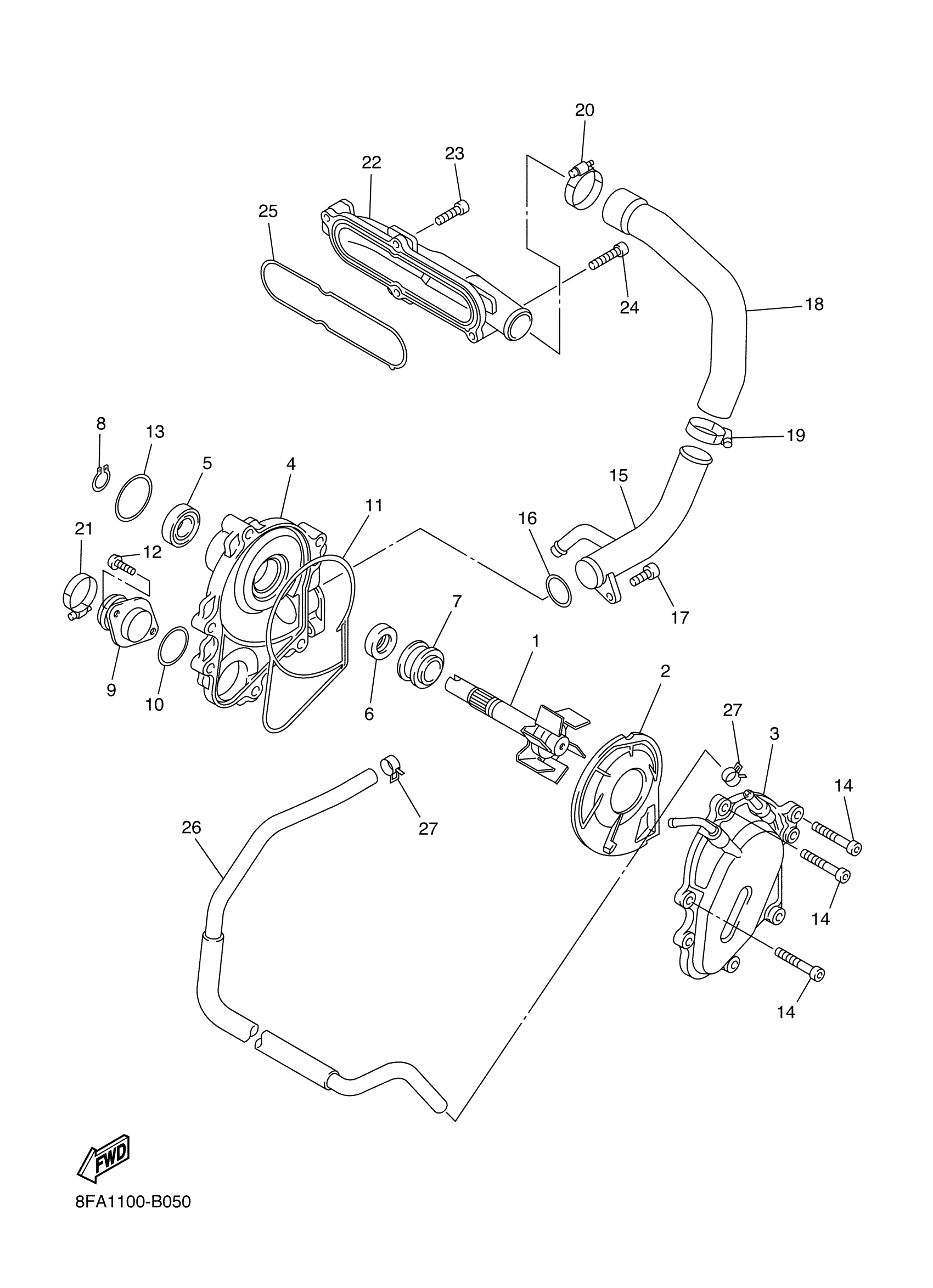

Yamaha RXW10SK (RX WARRIOR LIMITED EDITION) 8GB11 2005 WATER PUMP Diagram

#

Description
Price

1

IMPELLER SHAFT ASSY

8FA-12450-00-00

$69.99

2

COVER, IMPELLER

8FA-1243G-00-00

Unavailable

3

COVER, HOUSING

8FA-12422-00-00

$76.99

4

HOUSING, WATER PUMP

8FA-12421-00-00

Unavailable

5

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

6

OIL SEAL

93101-12173-00

$13.49

7

SEAL, MECHANICAL

11H-12438-10-00

$62.99

8

CIRCLIP(10Y)

99009-12400-00

$3.59

9

JOINT 2

8FA-1247A-00-00

Unavailable

10

O-RING

93210-22M93-00

Unavailable

11

O-RING

8FA-12439-00-00

$14.49

12

SCREW, TAPPING

90167-05004-00

$0.37

13

O-RING (22F)

93210-38516-00

Unavailable

14

BOLT,SOCKET

91317-06035-00

Unavailable

15

PIPE 1

8FA-12481-00-00

Unavailable

16

O-RING

93210-235A1-00

Unavailable

17

BOLT,SOCKET

91317-06012-00

Unavailable

18

HOSE 8

8HG-12552-00-00

Unavailable

19

HOSE CLAMP ASSY

90450-35001-00

Unavailable

20

HOSE CLAMP ASSY(3GM)

90450-38040-00

Unavailable

21

HOSE CLAMP ASSY

90450-35001-00

Unavailable

22

JOINT 1

8FA-12469-00-00

Unavailable

23

BOLT,SOCKET

91317-06020-00

Unavailable

24

BOLT,SOCKET

91317-06035-00

Unavailable

25

GASKET

8FA-12435-00-00

Unavailable

26

PIPE 5

8FA-12485-00-00

Unavailable

27

CLIP(3BM)

90467-10135-00

Unavailable
