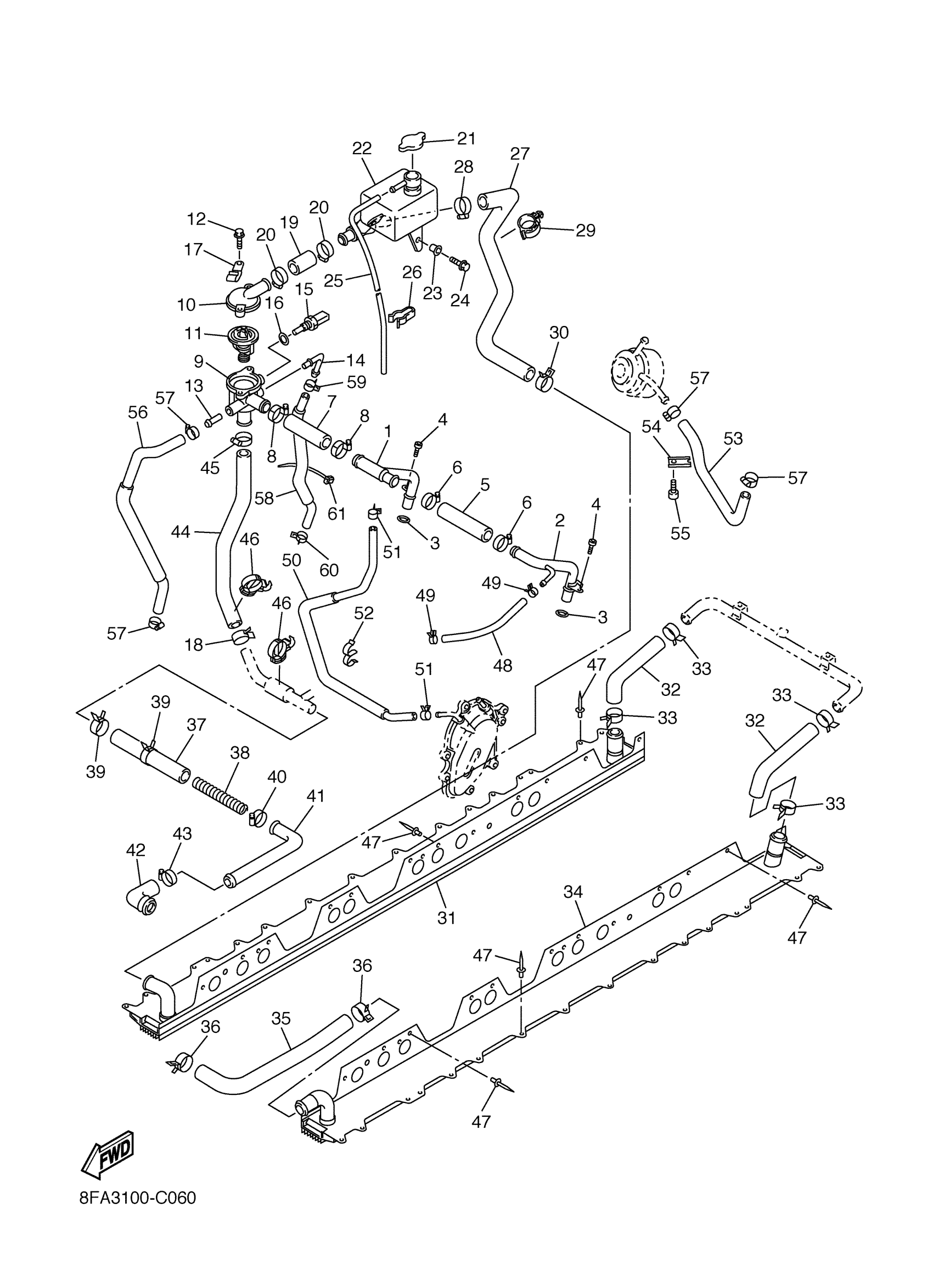

Yamaha RXW10SK (RX WARRIOR LIMITED EDITION) 8GB11 2005 RADIATOR HOSE Diagram

#

Description
Price

1

PIPE 2

8FA-12482-01-00

Unavailable

2

PIPE 3

8FA-12483-01-00

Unavailable

3

O-RING (716)

93210-18417-00

$7.49

4

BOLT,SOCKET

91317-06016-00

$1.25

5

HOSE 1

8FA-1243A-00-00

Unavailable

6

HOSE CLAMP ASSY

90450-28001-00

$14.99

7

HOSE 2

8FA-1243E-00-00

Unavailable

8

HOSE CLAMP ASSY

90450-35001-00

$5.60

9

HOUSING, THERMOSTA

8FA-W1258-02-00

Unavailable

10

COVER, THERMOSTAT

5EB-12413-00-00

$83.99

11

THERMOSTAT ASSY

8FA-12410-00-00

$88.99

12

. BOLT, FLANGE

95027-06020-00

Unavailable

13

JOINT, HOSE 3

8FA-12584-00-00

$6.99

14

JOINT, HOSE 4

8FA-12594-00-00

Unavailable

15

THERMOSENSOR ASSY

8CC-85790-01-00

$95.99

16

WASHER, PLATE

90201-12790-00

Unavailable

17

. CLAMP

90465-06M28-00

Unavailable

18

CLIP (8M6)

90467-28046-00

Unavailable

19

HOSE,3

8FA-1243F-00-00

Unavailable

20

HOSE CLAMP ASSY

90450-35001-00

$5.60

21

CAP, RADIATOR

4FL-12462-00-00

Unavailable

22

TANK, RESERVE

8FA-1249B-02-00

Unavailable

23

COLLAR (838-84757-00)

90387-06024-00

Unavailable

24

BOLT, FLANGE

95817-06020-00

Unavailable

25

HOSE (L600)

90445-083J5-00

Unavailable

26

CLAMP(53Y)

90464-15065-00

Unavailable

27

HOSE, 4

8FA-1244G-01-00

Unavailable

28

HOSE CLAMP ASSY

90450-35001-00

$5.60

29

CLAMP

90464-32002-00

Unavailable

30

CLIP (8M6)

90467-28046-00

Unavailable

31

HEAT EXCHANGER

8FG-1240F-01-00

Unavailable

32

PIPE 6

8FA-12476-00-00

Unavailable

33

CLIP (8M6)

90467-28046-00

Unavailable

34

HEAT EXCHANGER

8FG-1240E-01-00

Unavailable

35

PIPE 7

8FA-12477-00-00

Unavailable

36

CLIP (8M6)

90467-28046-00

Unavailable

37

PIPE 8

8FA-1248A-00-00

Unavailable

38

SPRING, COMPRESSION

90501-12002-00

Unavailable

39

CLIP (8M6)

90467-28046-00

Unavailable

40

HOSE CLAMP ASSY

90450-35001-00

$5.60

41

PIPE, WATER

8FA-12564-00-00

Unavailable

42

JOINT

99999-03536-00

Unavailable

43

HOSE CLAMP ASSY

90450-35001-00

$5.60

44

PIPE 9

8FA-1248E-01-00

Unavailable

45

HOSE CLAMP ASSY

90450-35001-00

$5.60

46

CLAMP

90464-36001-00

Unavailable

47

RIVET, BLIND

90267-47195-00

Unavailable

48

HOSE,3

5FL-1243F-00-00

Unavailable

49

CLIP(3BM)

90467-10135-00

Unavailable

50

HOSE 3

8FA-12578-00-00

Unavailable

51

CLIP(3BM)

90467-10135-00

Unavailable

52

CLAMP(4TX)

90464-12238-00

Unavailable

53

HOSE 5

8FA-12588-00-00

Unavailable

54

CLAMP 1

8FA-12491-00-00

Unavailable

55

BOLT,SOCKET

91317-06012-00

Unavailable

56

HOSE 6

8FA-12589-01-00

Unavailable

57

HOSE CLAMP ASSY

90450-18M09-00

Unavailable

58

HOSE 4

8FA-12579-00-00

Unavailable

59

CLIP(3BM)

90467-10135-00

Unavailable

60

CLIP (7K7)

90467-11044-00

Unavailable

61

CLAMP(4FM)

90464-15195-00

Unavailable
