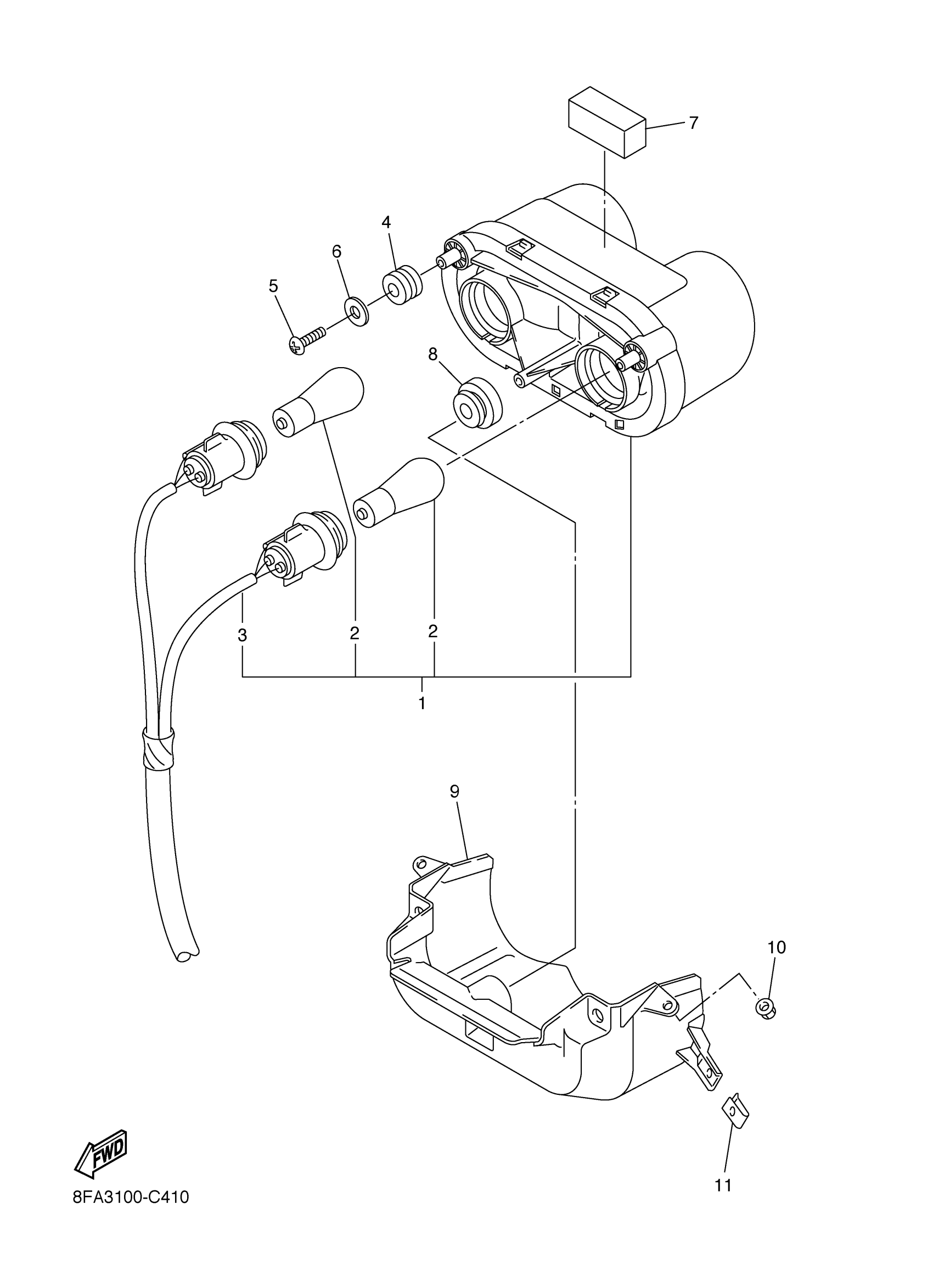

Yamaha RXW10SJ (RX WARRIOR LIMITED EDITION) 8FH1 2004 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

5JJ-84710-12-00

$146.71

2

BULB

1A2-84714-50-00

$11.36

3

CORD ASSY

5JJ-84755-00-00

Unavailable

4

DAMPER

4XV-83513-00-00

$5.98

5

SCREW, TAPPING(4MV)

97707-50016-00

$1.16

6

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

7

DAMPER

5JJ-21747-00-00

Unavailable

8

GROMMET (509)

90480-18171-00

$6.11

9

BRACKET, TAILLIGHT

8FA-2117E-00-00

Unavailable

10

NUT,SELF-LOCKING

95607-06200-00

$10.09

11

NUT, SPRING(4ES)

90183-06069-00

$5.69
