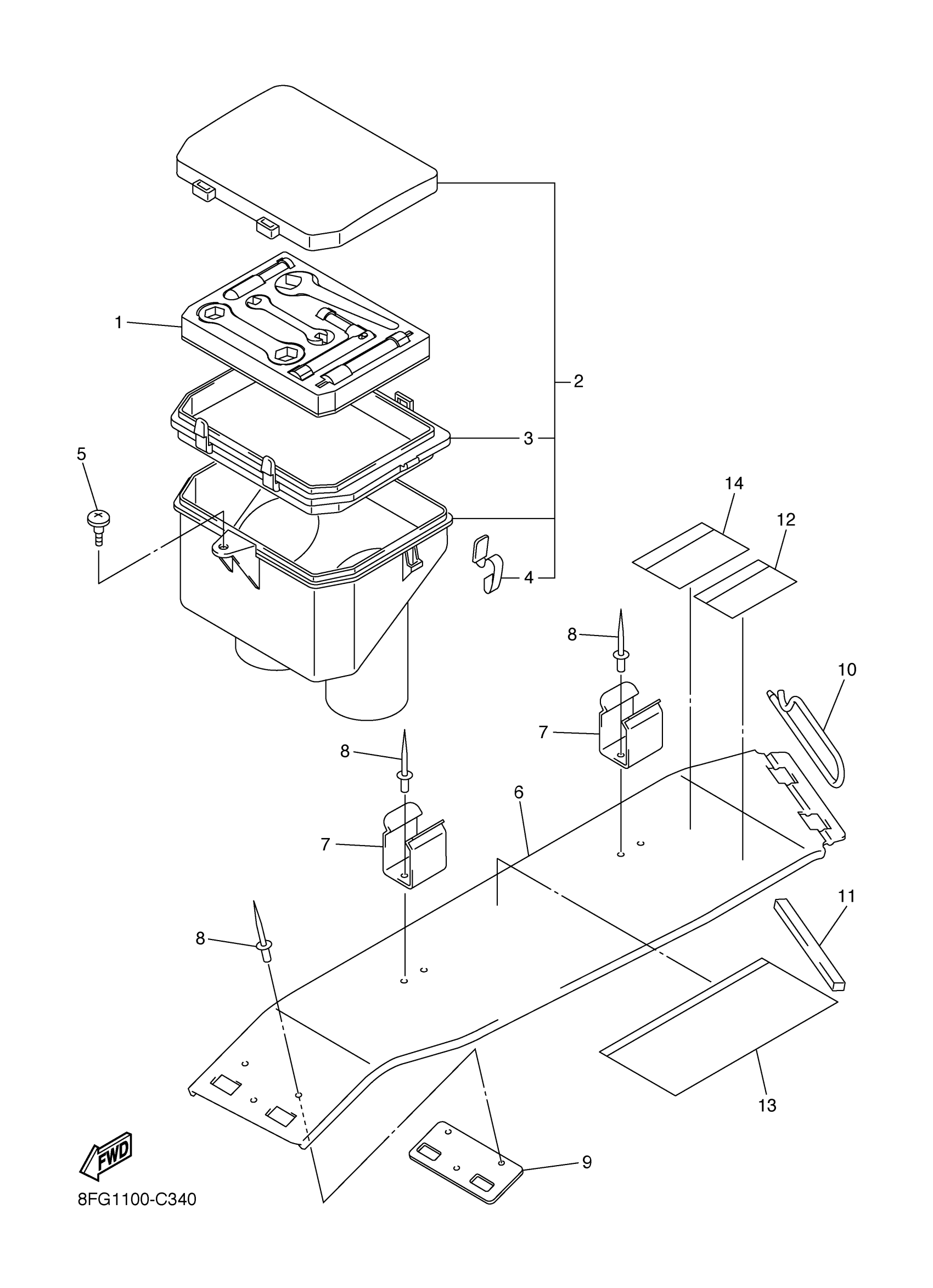

Yamaha RXW10SJ (RX WARRIOR LIMITED EDITION) 8FH1 2004 GUARD LUGGAGE BOX Diagram

#

Description
Price

1

TOOL KIT

8FA-28100-00-00

Unavailable

2

LUGGAGE BOX ASSY

8FA-77390-00-00

$82.97

3

BOX, TOOL

8FA-77381-00-00

Unavailable

4

HOOK

8FA-2814E-00-00

$6.54

5

SCREW, BINDING

90154-06009-00

$2.80

6

GUARD, DRIVE

8FA-77311-02-00

Unavailable

7

STAY, BELT

8CR-77338-00-00

$4.93

8

RIVET, BLIND

90267-48010-00

$1.94

9

PROTECTOR

8FA-77373-00-00

Unavailable

10

PIN

8CR-77384-01-00

$11.36

11

DAMPER 1

8CR-77319-00-00

$0.57

12

LABEL, WARNING 2

8BD-77762-00-00

$3.84

13

LABEL SUSPENSION 1

8FG-4730A-00-00

Unavailable

14

LABEL SUSPENSION 2

8FG-4730B-00-00

Unavailable
