- RXW10L (ATTAK) 8FT1 2006
SECONDARY SHEAVE

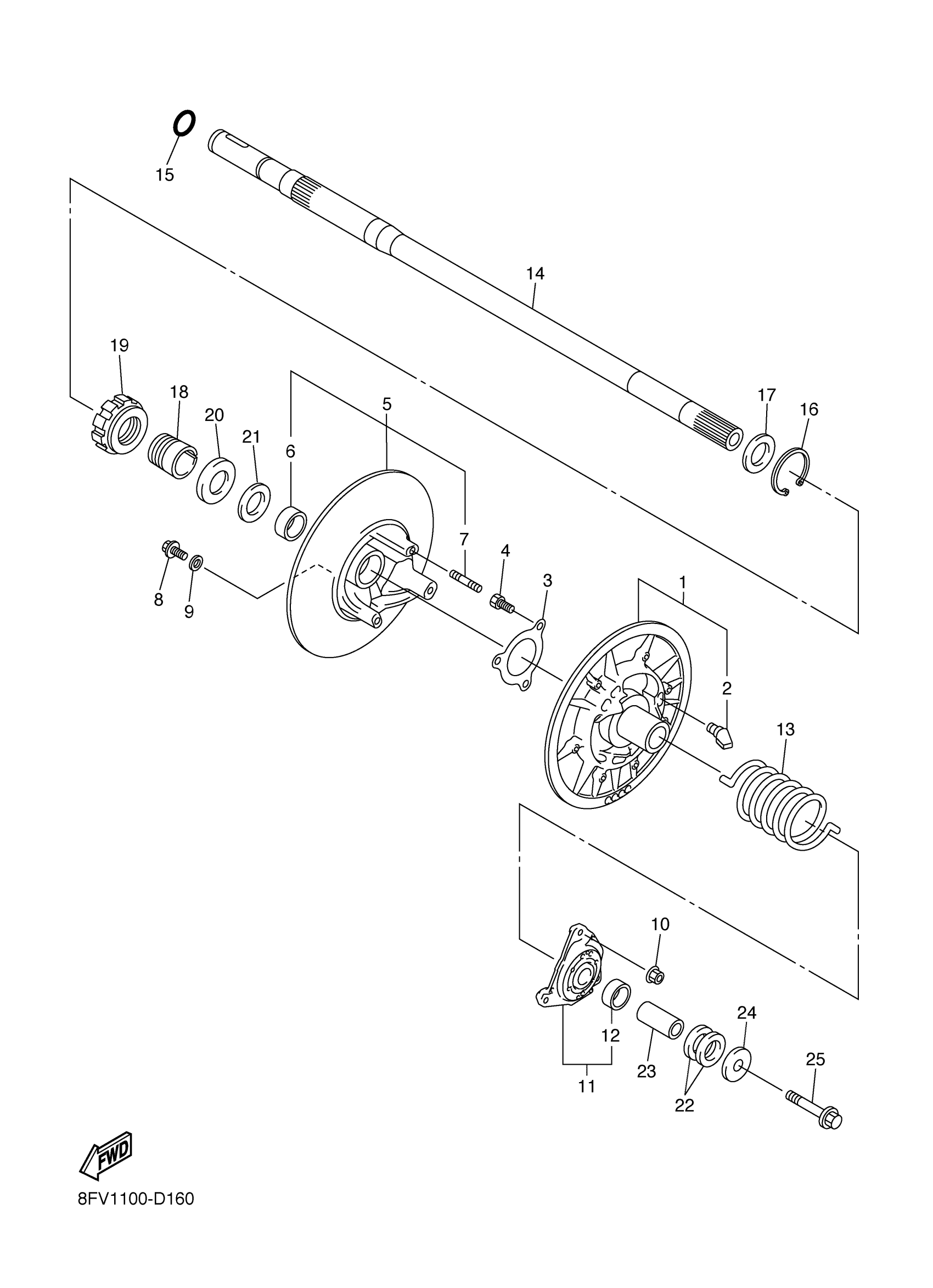

Yamaha RXW10L (ATTAK) 8FT1 2006 SECONDARY SHEAVE Diagram
#
Description
Price
1
SECONDARY FIXED SHEAVE COMP.
8ER-17660-30-00
Unavailable
2
SHOE, RAMP
8ER-17688-00-00
$32.99
3
STOPPER, HOLDER
8BV-17656-00-00
$22.99
4
SCREW, BINDING
98907-06016-00
$9.49
5
SECONDARY SLIDING SHEAVE
8BU-17670-20-00
Unavailable
6
BUSH, BIMETAL FORMED(8BN)
90384-38243-00
$63.99
7
BOLT, STUD 3
95617-08630-00
$4.99
8
BOLT, WASHER BASED(8BN)
90105-06734-00
$3.50
9
WASHER, PLATE (371)
90201-06431-00
$5.60
9
WASHER, PLATE (22K)
90201-061H1-00
$4.72
10
NUT(8BN)
90179-08655-00
$10.49
11
SEAT SPRING SET
8FA-17604-00-00
$212.99
12
BUSH, BIMETAL FORMED(8BN)
90384-38243-00
$63.99
13
SPRING, TORSION
90508-60007-00
$47.99
14
SHAFT, SECONDARY
8FU-17681-00-00
Unavailable
15
O-RING
93210-22298-00
Unavailable
16
CIRCLIP
93410-30084-00
Unavailable
17
WASHER, PLATE (2H7)
90201-30666-00
Unavailable
18
COLLAR
8FA-17645-10-00
Unavailable
19
NUT, BEARING
8FA-17642-00-00
Unavailable
20
WASHER
90209-25012-00
Unavailable
21
WASHER, PLATE (248-27226-00)
90201-25289-00
Unavailable
22
WASHER, PLATE (T=0.5)
90201-222F0-00
Unavailable
22
WASHER, PLATE (8L8)
90201-225A4-00
Unavailable
23
COLLAR
90387-14019-00
Unavailable
24
WASHER, PLATE
90201-14022-00
Unavailable
25
BOLT, WASHER BASED(8CJ)
90105-14766-00
Unavailable
