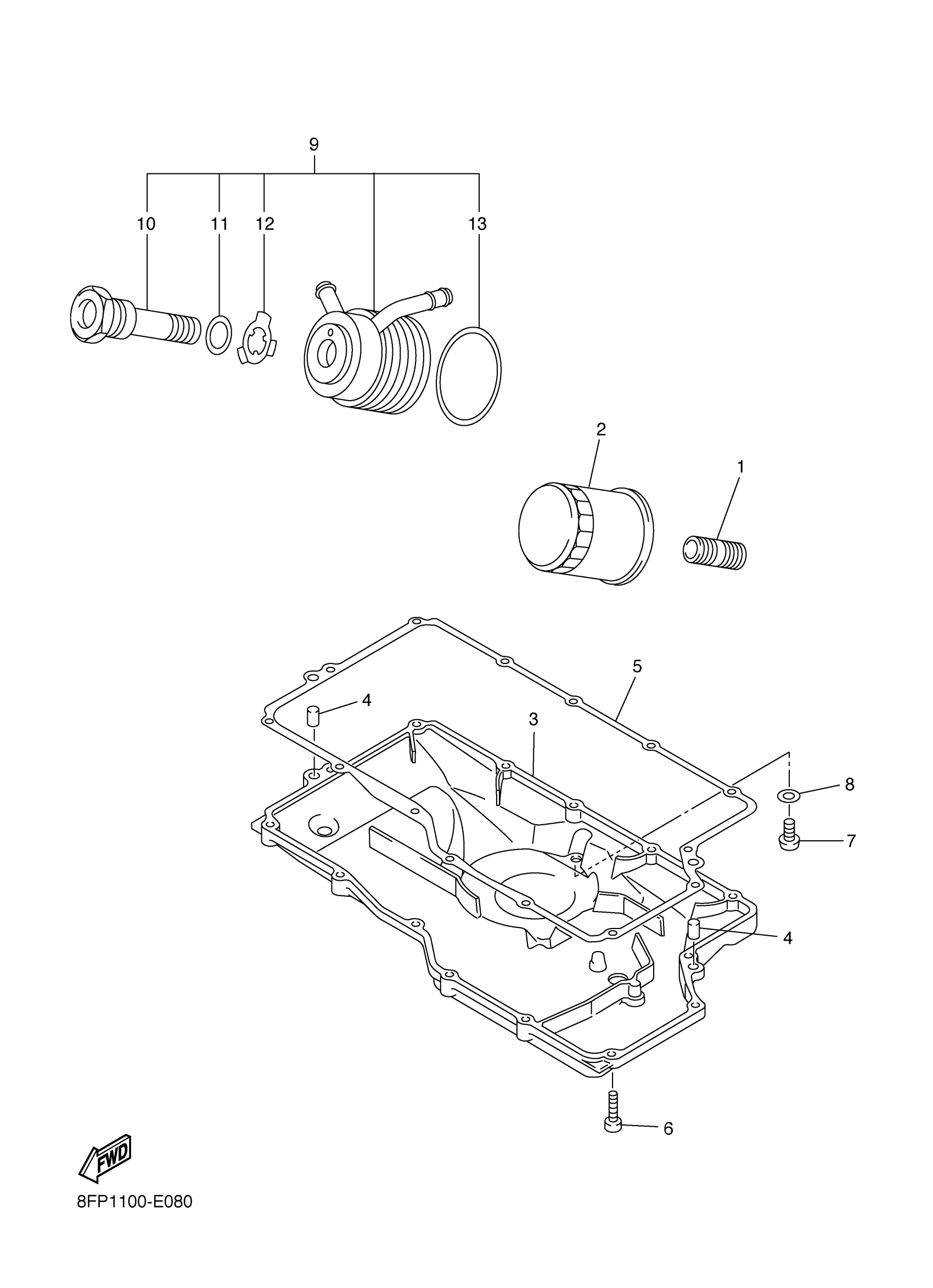

Yamaha RXW10L (ATTAK) 8FT1 2006 OIL CLEANER Diagram

#

Description
Price

1

BOLT, UNION

90401-20007-00

$13.86

2

ELEMENT ASSY, OIL

5GH-13440-90-00

Unavailable

3

COVER, STRAINER

8FA-13417-01-00

Unavailable

4

PIN, DOWEL

99530-08012-00

$4.89

5

GASKET, STRAINER COVER

8FA-13414-00-00

$17.28

6

BOLT,SOCKET

91317-06025-00

$1.91

7

BOLT, BUTTON HEAD

92017-10016-00

$5.98

8

GASKET

90430-10188-00

$5.89

9

OIL COOLER ASSY

8FP-13470-00-00

Unavailable

10

BOLT, UNION

5PW-12822-00-00

$79.18

11

O-RING

5PW-13473-00-00

$13.21

12

WASHER

5PW-13318-00-00

Unavailable

13

GASKET

5PW-13475-00-00

$35.30
