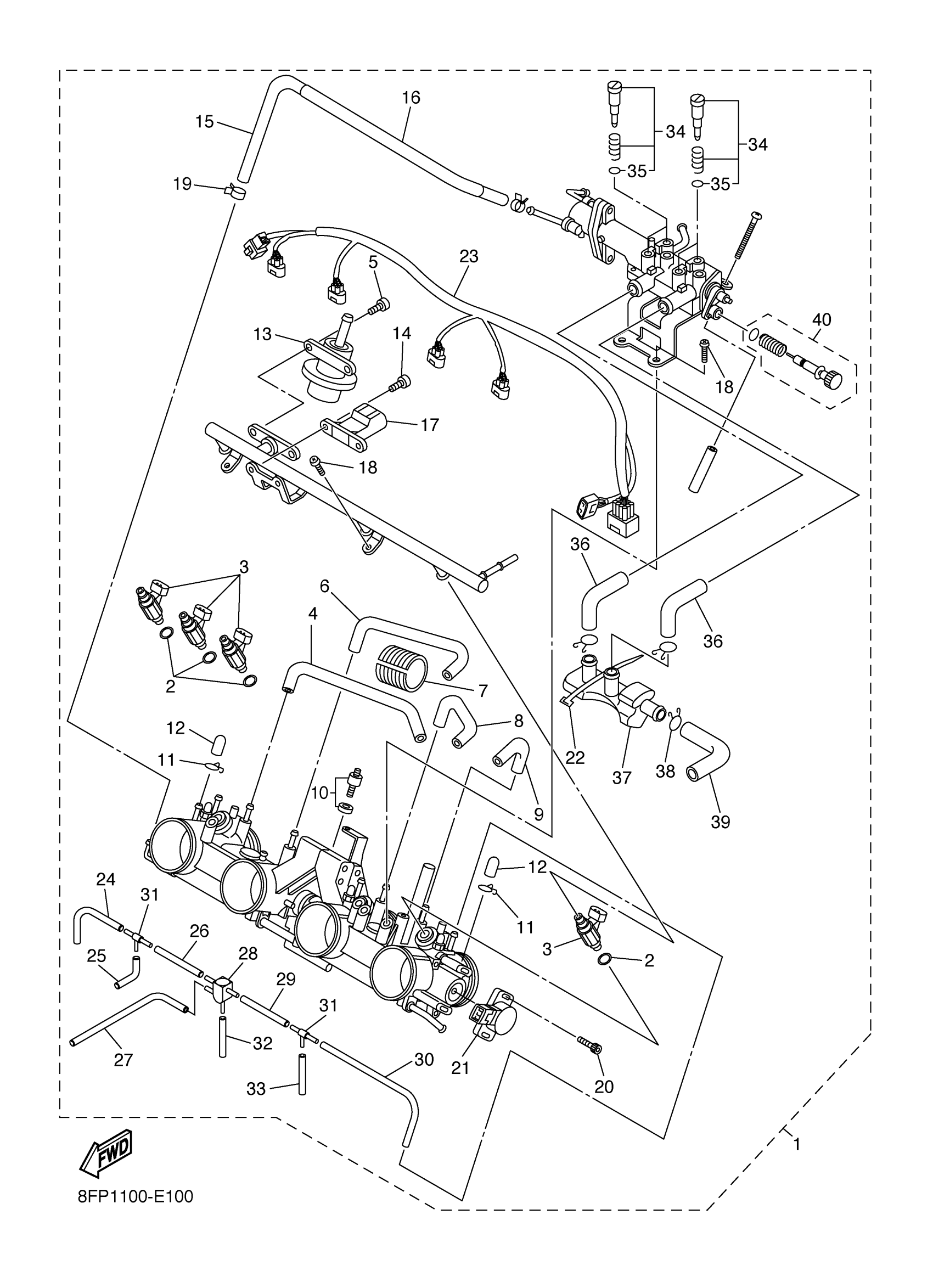

Yamaha RXW10L (ATTAK) 8FT1 2006 INTAKE 2 Diagram
#
1
THROTTLE BODY ASSY
8FP-13750-10-00
Unavailable
2
GASKET, MANIFOLD
8FP-13556-00-00
$13.99
3
INJECTOR
8FP-13761-10-00
Unavailable
4
HOSE
8FP-14987-00-00
Unavailable
5
GASKET, EXHAUST
98507-05008-00
$3.55
6
HOSE
8FP-14987-10-00
Unavailable
7
PIPE
8FP-14396-00-00
Unavailable
8
HOSE
8FP-14987-20-00
Unavailable
9
HOSE
8FP-14987-30-00
Unavailable
10
THROTTLE SCREW SET
5JW-14103-10-00
Unavailable
11
CLIP, PIPE
8A7-14139-00-00
$8.99
12
CAP
895-14169-00-00
$5.49
13
REGULATOR, PRESSURE
8FP-13906-00-00
Unavailable
14
SCREW, PAN
98507-06010-00
$3.55
15
. PIPE 1
8FP-14348-00-00
Unavailable
16
PIPE 1
8FP-14348-10-00
Unavailable
17
SENSOR, PRESSURE
5PS-82380-00-00
Unavailable
18
SCREW, PAN
98517-06012-00
Unavailable
19
CLIP
90467-11028-00
Unavailable
20
SCREW
8CC-14216-10-00
Unavailable
21
THROTTLE SENSOR ASSY
3P6-85885-01-00
Unavailable
22
CLIP
4KM-14137-00-00
Unavailable
23
EXTENSION, WIRE HARNESS
8FP-82386-01-00
Unavailable
24
PIPE 1
5JW-14348-00-00
Unavailable
25
PIPE
8FP-14349-00-00
Unavailable
26
HOSE
5PS-14987-00-00
Unavailable
27
PIPE
8FP-14349-10-00
Unavailable
28
CONNECTOR
5PW-1410F-00-00
Unavailable
29
PIPE
8FP-14349-20-00
Unavailable
30
HOSE
5JW-14987-00-00
Unavailable
31
. PIPE, JOINT 1
68V-24376-00-00
Unavailable
32
PIPE 1
5FL-14348-10-00
Unavailable
33
PIPE
8FP-14349-30-00
Unavailable
34
AIR SCREW SET
5JW-14104-00-00
Unavailable
35
O-RING, PILOT SCREW
3H1-14147-00-00
Unavailable
36
. PIPE
8FP-14148-00-00
Unavailable
37
JOINT
8FP-14454-00-00
Unavailable
38
CLIP (21V)
90467-22080-00
Unavailable
39
PIPE
8FP-14149-00-00
Unavailable
40
ADJUST SCREW SET
8FP-14503-00-00
Unavailable
