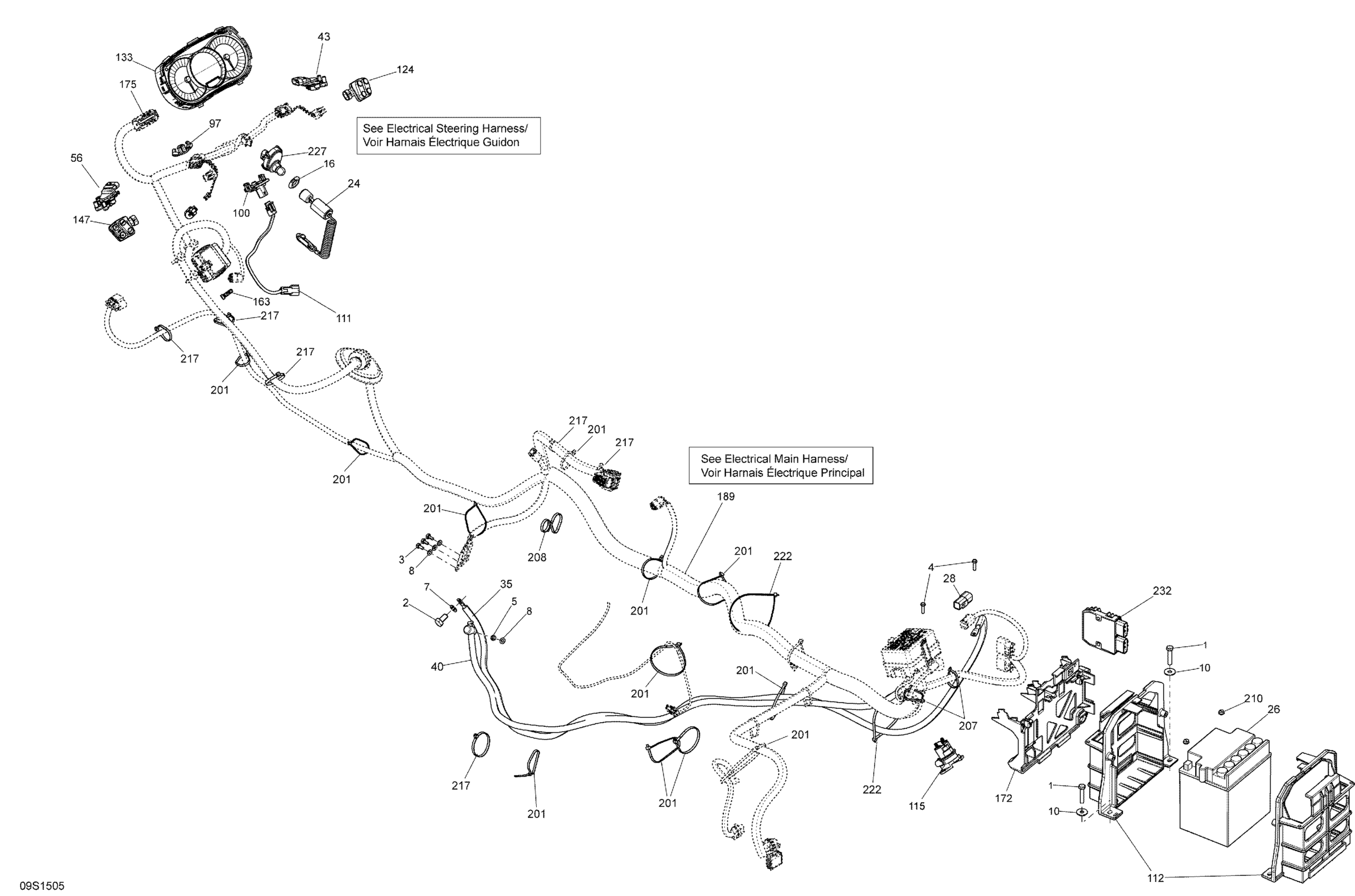

Sea-doo RXT-X aS 260 & RS. 2015 Electrical System _09S1505 Diagram

Hex. Screw M8 X 40

207184060

$2.22

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

Hex. Screw 10-14 X 7/8”

211000023

$3.59

Elastic Stop Nut M6, Brass

232561200

$4.23

Elastic Stop Nut M6, Brass

232561200

$4.23

Flat Washer 10 mm, Stainless

234000600

$1.46

Stainless Flat Washer M6

234061600

$0.33

Stainless Flat Washer M6

234061600

$0.33

Flat Washer 8 mm, Stainless

234082600

$2.43

Safety Nut (DESS Switch)

278002963

$3.28

Safety Lanyard Ass'y, RFID

278003400

$84.99

Safety Lanyard Ass'y, Learning / RFID

278003401

$84.99

Battery, 30 Amperes

278001882

$184.01

Diagnostic Connector

278002704

$19.49

Battery Ground Cable

278003269

$41.49

Cable-Starter

278003398

$63.99

Throttle Position Sensor

278002283

$119.99

LH Throttle Sensor

278002284

$119.99

O.T.A.S Actuator

278003537

$42.99

O.T.A.S. Sensor Ass'y

278003009

$109.99

Battery Support

278003306

$20.99

Starter Relay

278003012

$42.49

Switch RH Mode/Set

278002602

$126.99

LCD Gauge

278003382

$699.99

LCD Gauge

278003382

$699.99

Switch LH VTS/Sport/Eco | Package STD

278002767

$126.99

Not Available As Spare Parts

XXX

Unavailable

Clip (double dart)

278002910

$11.12

Support

278003048

$21.99

Steering Harness Ass'y

278003266

$319.99

Steering Harness Ass'y

278003266

$319.99

Main Harness (AS)

278003252

$589.99

Main Harness (AS)

278003252

$589.99

Tie Wrap 368 mm

293750008

$1.04

Tie Rap 300mm

293750053

$2.11

Battery Bolt Kit

250000282

$7.29

Tie-Rap 180 mm

414115200

$0.11

Tie Rap, 533 mm

293750047

$2.09

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99
