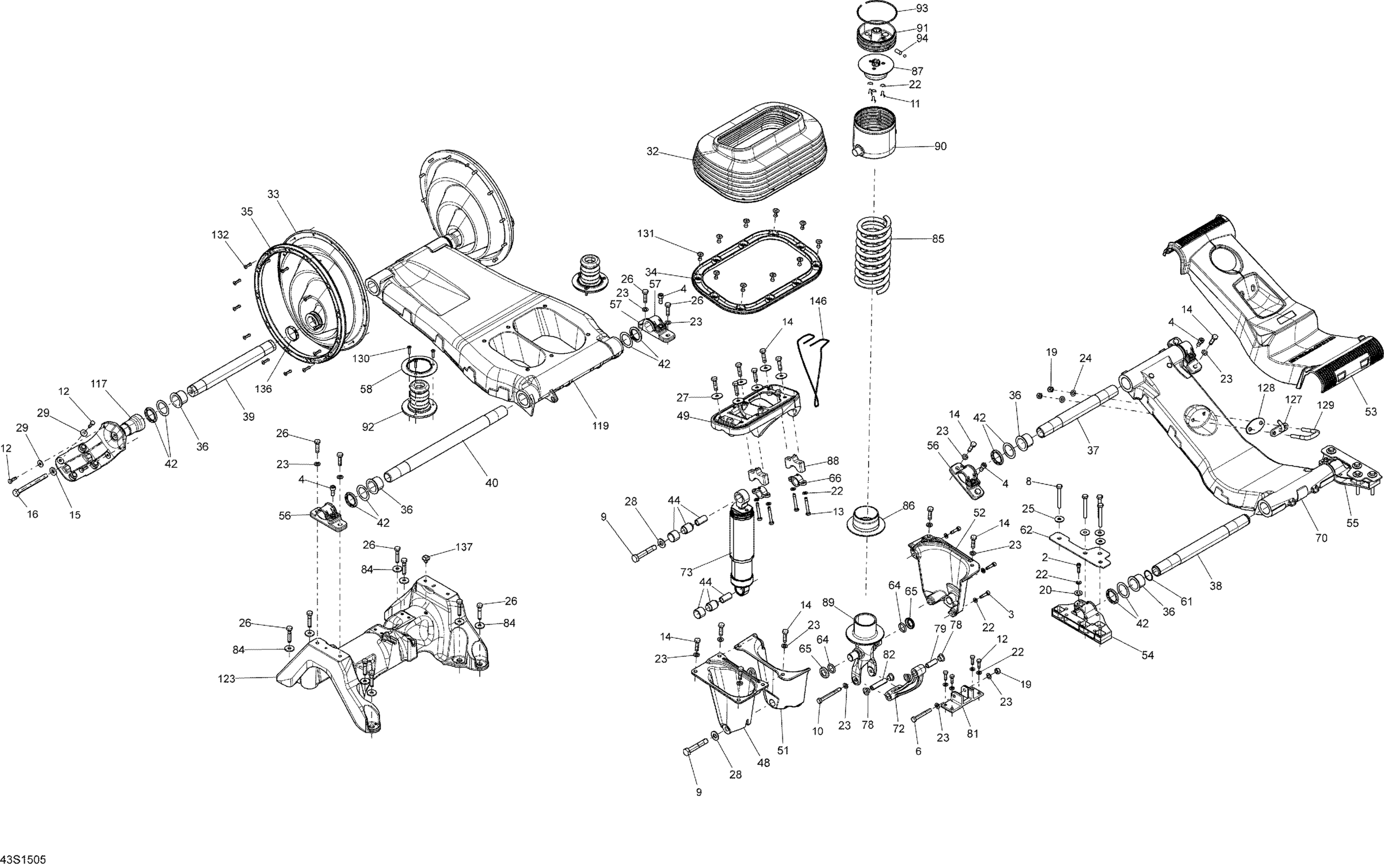

Sea-doo RXT-X aS 260 & RS. 2015 Suspension _43S1505 Diagram

#

Description
Price

2

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.62

3

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.70

4

Socket Head Screw M8 X 20, Scotch Grip

205582060

$4.15

6

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086060

$1.79

8

Hex. Screw M8 X 65

207186560

$3.61

9

HEX. SCREW M12 X 70, SCOTCH GRIP - Call your local BRP dealership

207227060

Unavailable

10

HEX. SCREW M8 X 75, SCOTCH GRIP - Call your local BRP dealership

207287560

Unavailable

11

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

12

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

13

Hex. Screw M6 x 45, Scotch Grip

207364560

$1.51

14

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.55

15

Flat Washer

211200051

$1.34

16

Hex. Screw M10 X 110, Scotch Grip

230201060

$10.54

19

Hex. Elastic Nut M8 Brass

232581200

$1.29

20

Flat Washer 10 mm, Stainless

234001600

$0.91

22

Stainless Flat Washer M6

234061600

$0.25

23

Flat Washer M8, Stainless

234080600

$1.25

24

Stainless, Flat Washer 8 mm

234081600

$0.46

25

Flat Washer 8 mm, Stainless

234082600

$1.98

26

HEX. SCREW M8 X 40, SOTCH GRIP - Call your local BRP dealership

250000729

Unavailable

27

Flat Washer 8 mm, Stainless

250200175

$1.29

28

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

29

Flat Washer M6

250200115

$2.72

32

CENTRAL BELLOWS - Call your local BRP dealership

279000008

Unavailable

33

Lateral Bellows

279000009

$63.02

34

Retaining Plate

279000010

$16.39

35

Retaining Ring

279000011

$13.62

36

Bushing

279000019

$19.47

37

PIVOT TUBE - Call your local BRP dealership

279000031

Unavailable

38

PIVOT TUBE - Call your local BRP dealership

279000033

Unavailable

39

PIVOT TUBE - Call your local BRP dealership

279000038

Unavailable

40

PIVOT TUBE - Call your local BRP dealership

279000041

Unavailable

42

RUBBER BUMPER - Call your local BRP dealership

279000047

Unavailable

44

Bushing

279000051

$75.34

48

SHOCK LOWER HOLDER - Call your local BRP dealership

279000055

Unavailable

49

Shock Upper Holder

279000057

$177.58

51

LH SPRING HOLDER - Call your local BRP dealership

279000070

Unavailable

52

RH SPRING HOLDER - Call your local BRP dealership

279000074

Unavailable

53

REAR ARM MOULDING - Call your local BRP dealership

279000080

Unavailable

54

LH REAR BASE - Call your local BRP dealership

279000083

Unavailable

55

RH REAR BASE - Call your local BRP dealership

279000087

Unavailable

56

LH CLAMP - Call your local BRP dealership

279000089

Unavailable

57

RH CLAMP - Call your local BRP dealership

279000092

Unavailable

58

Retaining Ring

279000115

$11.69

61

RETAINING RING - Call your local BRP dealership

279000100

Unavailable

62

RETAINING PLATE - Call your local BRP dealership

279000114

$13.42

63

BUSHING - Call your local BRP dealership

279000103

Unavailable

64

O-RING - Call your local BRP dealership

279000104

Unavailable

65

BUSHING - Call your local BRP dealership

279000105

Unavailable

66

CLAMP - Call your local BRP dealership

279000106

Unavailable

70

REAR ARM ASS'Y - Call your local BRP dealership | Includes 1001 to 1001c

279000001

Unavailable

72

SPRING ALIGNMENT ARM - Call your local BRP dealership

279000157

Unavailable

73

SHOCK - Call your local BRP dealership

279000324

Unavailable

78

BUSHING - Call your local BRP dealership

279000137

$7.10

79

SPACER - Call your local BRP dealership

279000138

Unavailable

81

BRACKET - Call your local BRP dealership

279000155

Unavailable

82

SPACER - Call your local BRP dealership

279000153

Unavailable

84

Flat Washer

279000336

$8.35

85

PAINTED SPRING - Call your local BRP dealership

279000180

Unavailable

86

LOWER SPRING PROTECTOR - Call your local BRP dealership

279000182

Unavailable

87

Upper Spring Protector

279000183

$8.57

88

E-COAT SPACER - Call your local BRP dealership

279000206

Unavailable

89

LOWER SPRING PROTECTOR - Call your local BRP dealership

279000188

Unavailable

90

Upper Spring Holder

279000189

$261.16

91

UPPER SPRING HOLDER - Call your local BRP dealership

279000191

Unavailable

92

RUBBER BUMPER - Call your local BRP dealership

279000193

Unavailable

93

Retaining Ring

279000198

$12.52

94

PLUNGER - Call your local BRP dealership

279000205

Unavailable

106

GROMMET - Call your local BRP dealership

279000321

Unavailable

117

FOOT REST - Call your local BRP dealership

279000306

Unavailable

119

FRONT ARM ASS'Y - Call your local BRP dealership | Includes 41 to 41d

279000308

Unavailable

123

FRONT ARM BASE - Call your local BRP dealership

279000316

Unavailable

127

Hook | Package LTD

291002351

$67.13

128

Black, Finition Plate

291001386

$8.57

129

U-Clamp

292000933

$32.47

130

Pop Rivet 3/16"

293150005

$0.40

131

Pop Rivet 3/16"

293150123

$3.43

132

Pop Rivet 3/16"

293150176

$1.82

133

Seal Tray 1000Mm Long

219704368

$12.30

136

Oetiker Gear Clamp

293650199

$7.16

137

Mount Dart

293730040

$0.86

139

Tie Wrap 142 mm

293750002

$0.88

141

Tie Rap 300mm

293750053

$1.99

146

Retaining Cable

708200118

Unavailable
